Disk wheel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 27, 2017
Grant Date -
Oct 6, 2016
app pub date -
Feb 12, 2014
filing date -
Apr 4, 2013
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

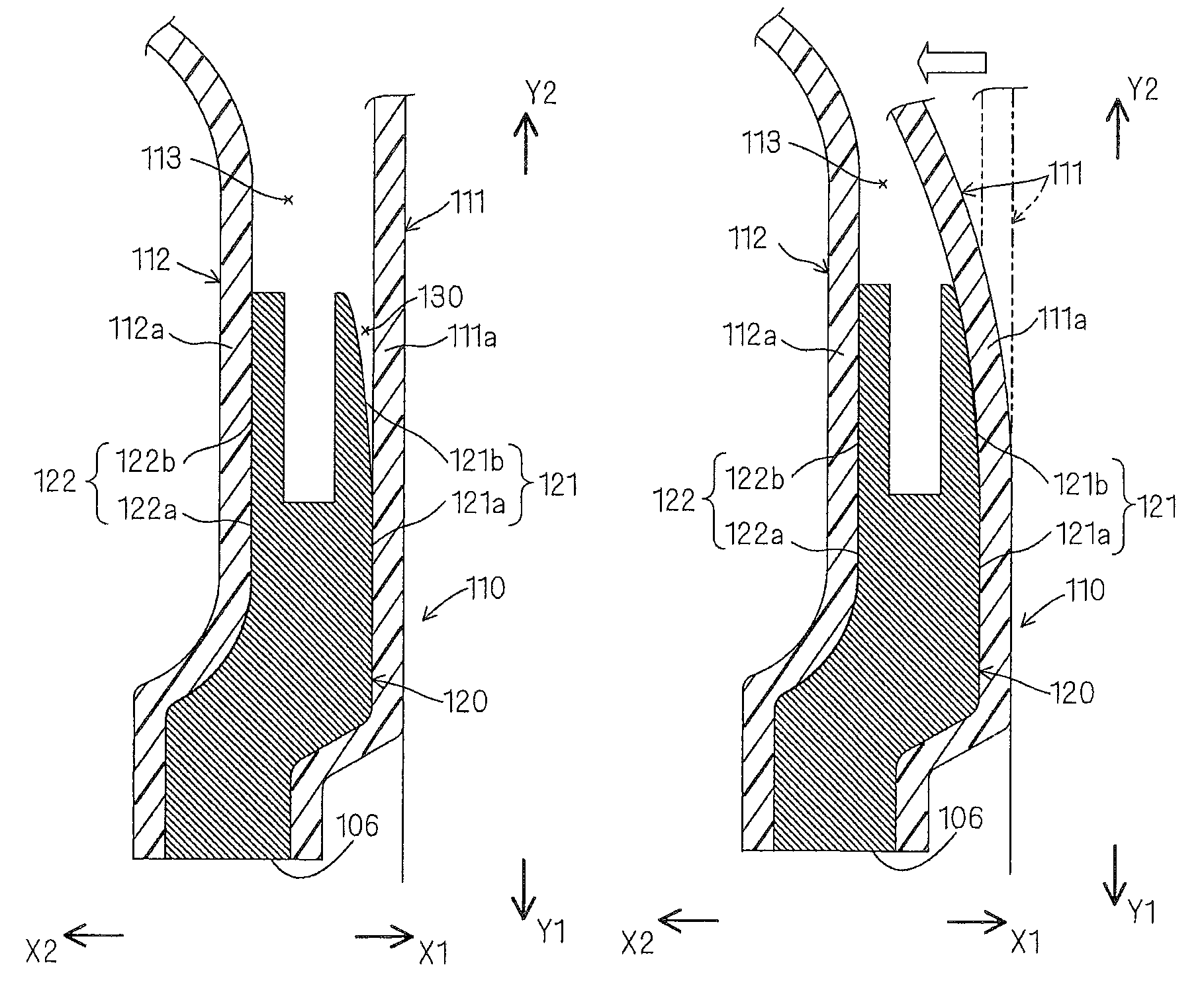

In a disk wheel, a metal insert member is embedded in a resinous bolt-fastening part having a bolt hole. The insert member includes: an opposing surface which is opposed to a resin member of the bolt-fastening part; a bonding area a bonded to the resin member within the opposing surface; and a non-bonding area within the opposing surface. The non-bonding area is not bonded to the resin member, but extends from the bonding area so as to receive a load generated when the resin member deforms. It is thereby possible to provide a technique to effectively suppress the influence of residual stress remained after molding of the resin member of the bolt-fastening part, and to ensure the strength required for the bolt-fastening part.
