Computer system display driving method and system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 20, 2017
Grant Date -
Feb 4, 2016
app pub date -
Aug 6, 2015
filing date -
Nov 6, 2003
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

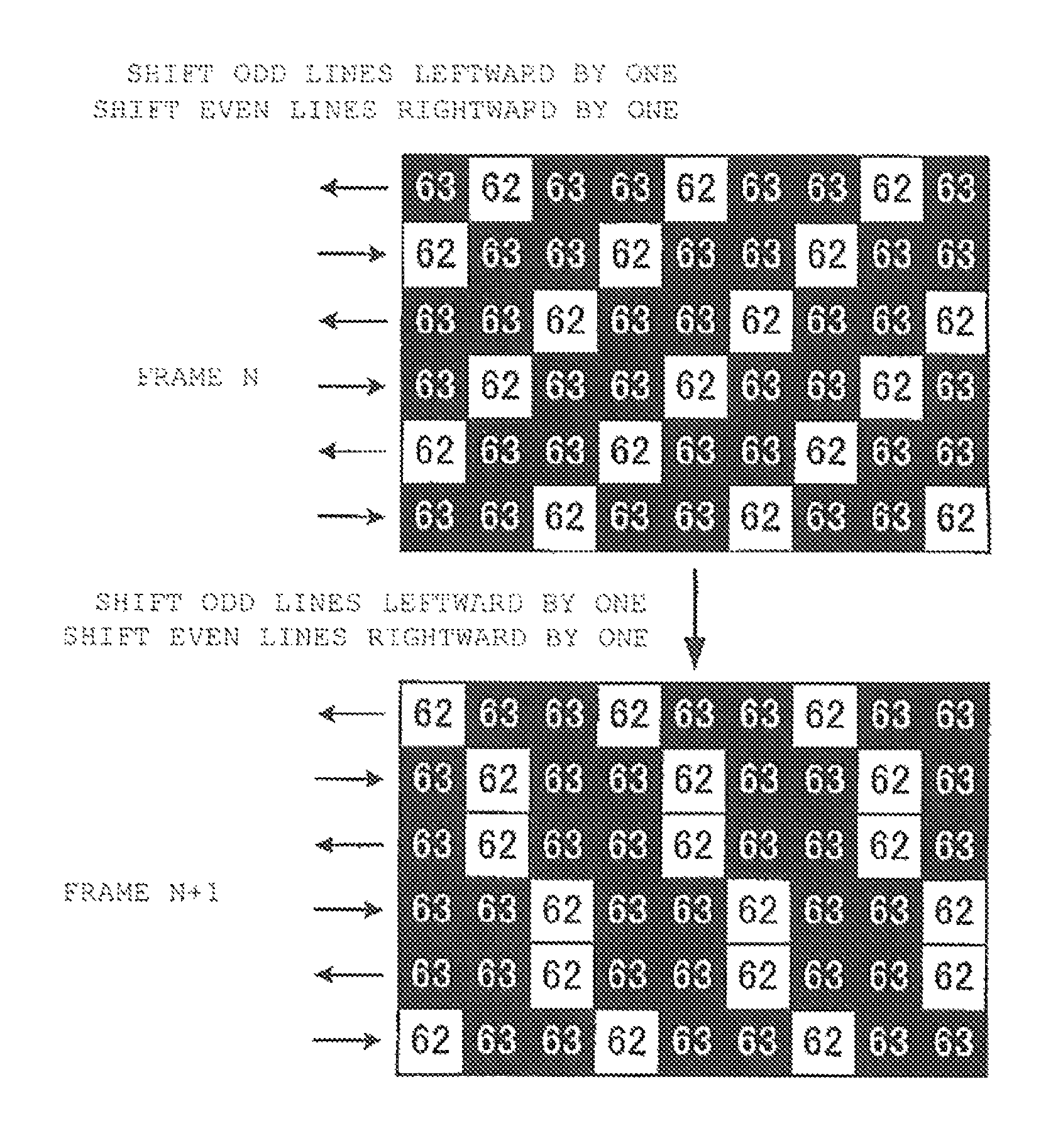

An image display system includes an LCD (liquid crystal display) or other display driven by alternating current and driven in an inverted manner by a predetermined driving method on a pixel basis, and an LCD driving device for generating a Frame Rate Control (FRC) pattern which is the same as the pattern utilized by the predetermined driving method. The display is thereby driven so as to allow the display to make an expression in gradations higher (for example, 256 gradations) than gradations (for example, 64 gradations) natively supported by the display.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G09G Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 20, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 20, 2028 |
