Touch-sensing electrode structure and touch-sensitive device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 20, 2017
Issued Date -
N/A
app pub date -
May 22, 2014
filing date -
May 24, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

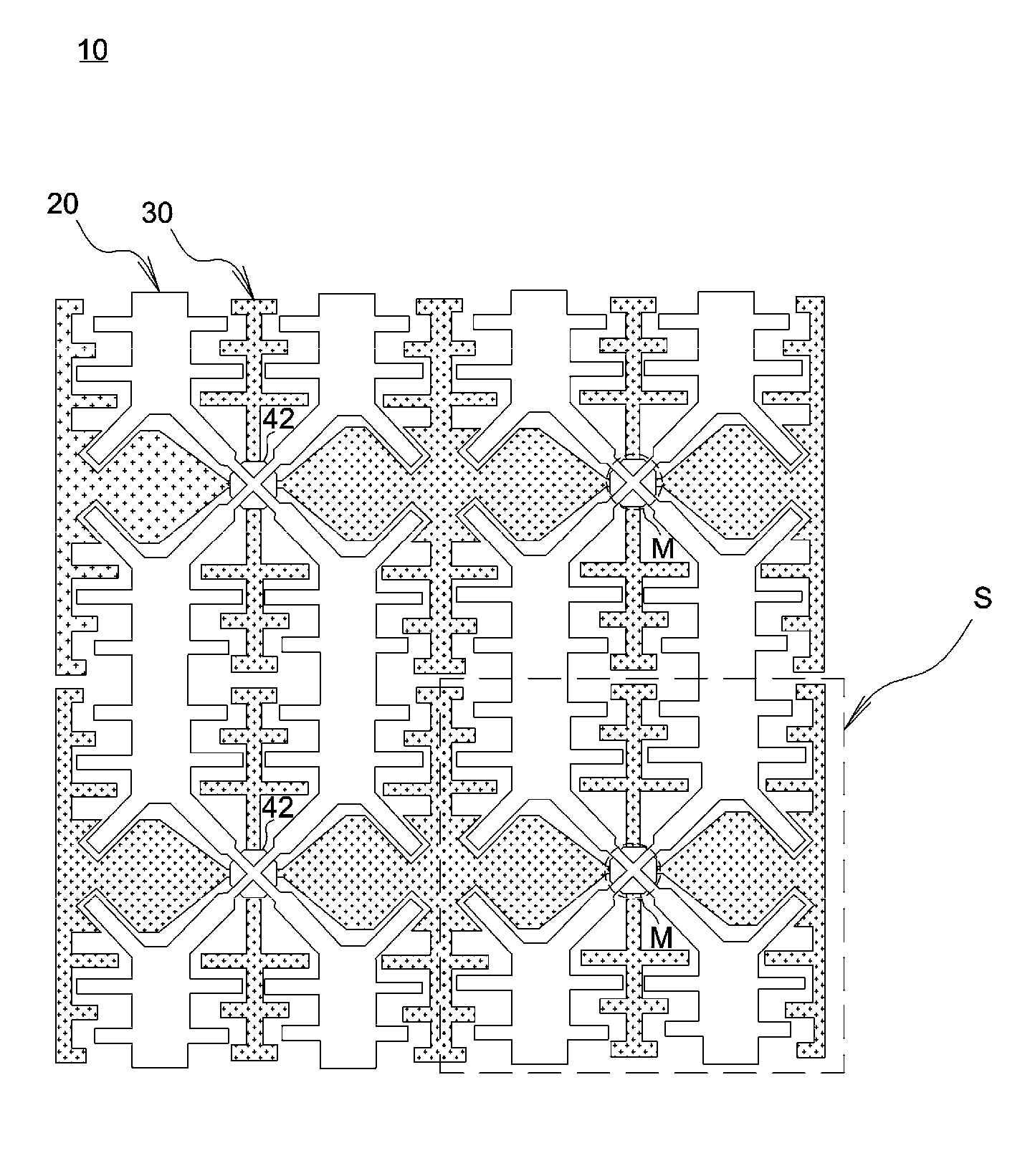

A touch-sensing electrode structure includes multiple first electrodes and multiple second electrodes. Each of the first electrodes includes at least a first major part and a second major part, the first major part and the second major part cross over each other to form at least one interconnect section, the interconnect section includes a first connecting line extending in a first direction and a second connecting line extending in a second direction different to the first direction. Each of the second electrodes includes a plurality of electrode sections and third connecting lines, each of the third connecting lines is connected between two adjacent electrode sections, the third connecting lines extend in a third direction different to the first direction and the second direction, and at least one of the third connecting lines overlaps the interconnect section.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G06F Class
- 51669 Applications Filed
- 44228 Patents Issued To-Date
- 85.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- G06F Class
- 14.60 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 20, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 20, 2028 |
