Systems and methods for separating hydrocarbons using one or more dividing wall columns
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 20, 2017
Issued Date -
N/A
app pub date -
Feb 16, 2012
filing date -
Feb 16, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance

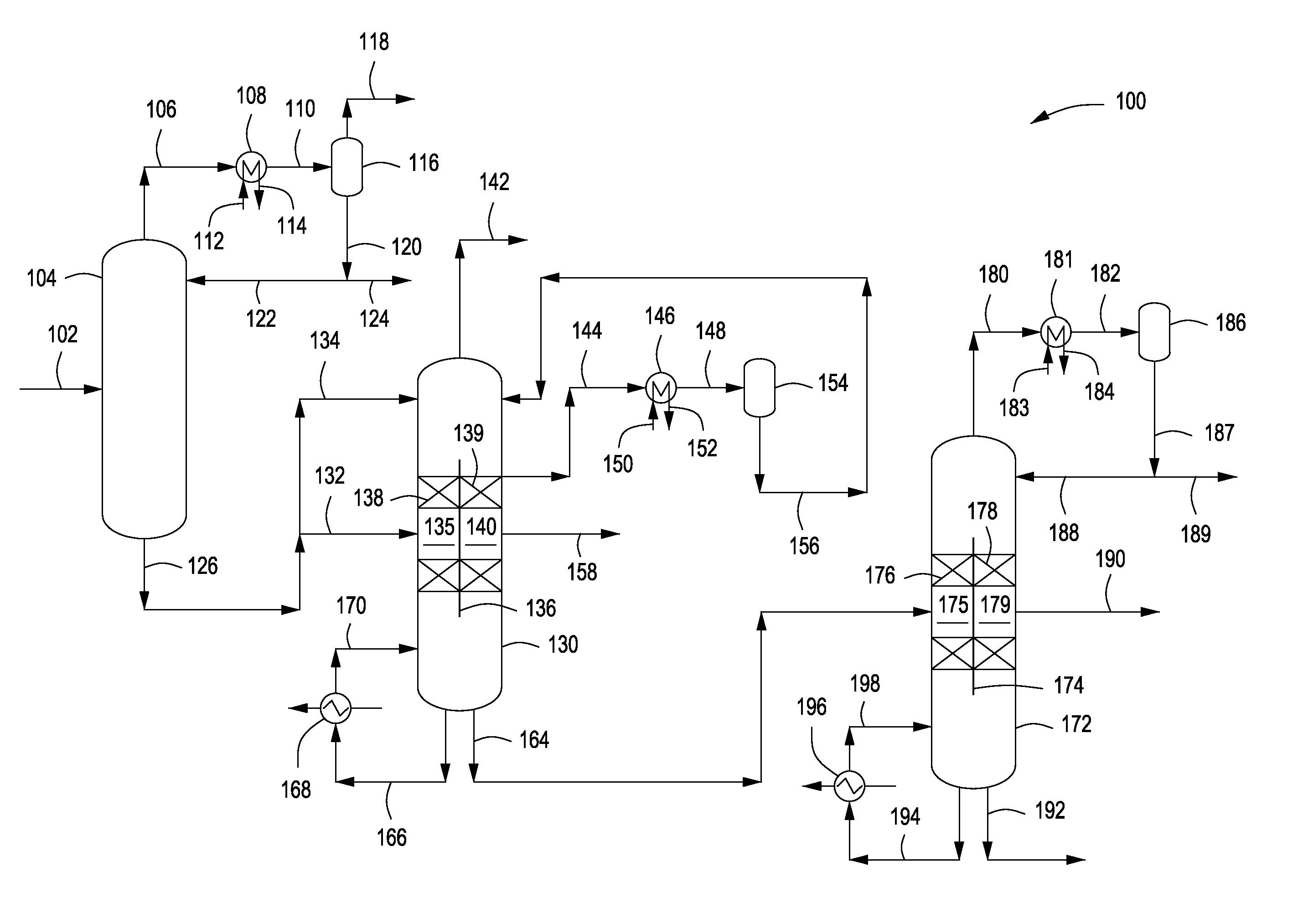

Abstract
Methods and systems for separating hydrocarbons using one or more dividing wall columns are provided. The method can include introducing a hydrocarbon fluid to a first dividing wall column. A first overhead comprising methane, ethane, or a combination thereof, a first intermediate comprising ethane, a second intermediate comprising ethane, and a first bottoms comprising one or more hydrocarbons having three or more carbon atoms per molecule can be recovered from the first dividing wall column. The first overhead can be introduced to a process for producing a liquefied natural gas. The first bottoms can be introduced to a second dividing wall column. A second overhead comprising propane, a third intermediate comprising butane, and a second bottoms comprising one or more hydrocarbons having five or more carbon atoms per molecule can be recovered from the second dividing wall column. The second overhead can be introduced to the process for producing a liquefied natural gas.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F25J Class
- 105 Applications Filed
- 69 Patents Issued To-Date
- 65.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F25J Class
- 20 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 20, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 20, 2028 |
