Fluid energy generator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 20, 2017
Grant Date -
Jan 23, 2014
app pub date -
Mar 13, 2012
filing date -
Mar 14, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

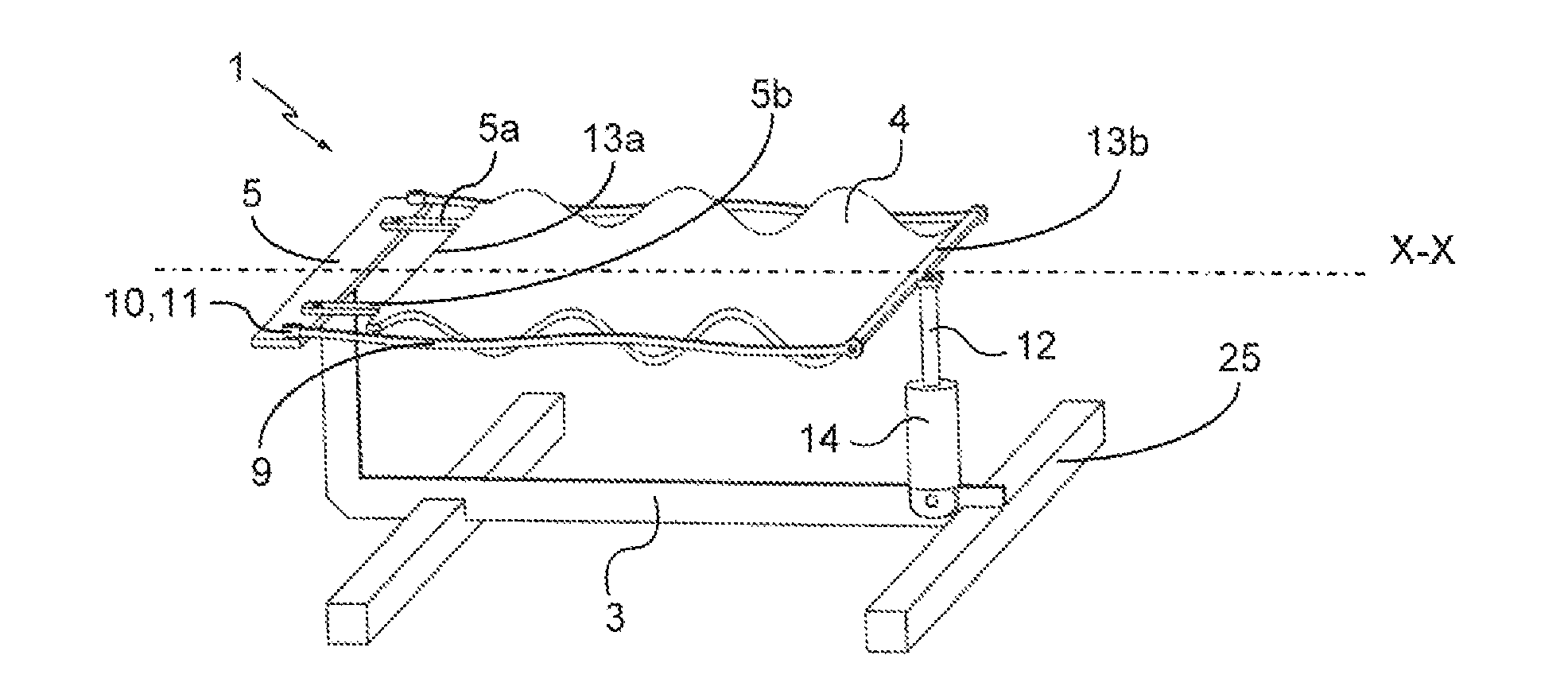

A device for recovering energy from a flow of fluid including a support, a flexible membrane, an attachment system for attaching at least a first area of the membrane connecting this first area of the membrane to the support; force transmission means connected to a second area of the membrane remote from the first membrane area, this second area of the membrane being movable with respect to the support. The device includes separation limiting means, adapted to limit the separation of the first area of the membrane from at least a first point of the attachment system and to limit the separation of the second area of the membrane from a second point of the attachment system, these separation limiting means being such that the first and second areas are spaced apart from each other by a minimum distance (Dmin) smaller than the shortest length (Lmin) separating these first and second areas measured along a face of the membrane.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F03B Class
- 303 Applications Filed
- 216 Patents Issued To-Date
- 71.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F03B Class
- 19.82 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 20, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 20, 2028 |
