Starter and engaging device thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 20, 2017
Issued Date -
N/A
app pub date -
Oct 29, 2014
filing date -
Oct 31, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

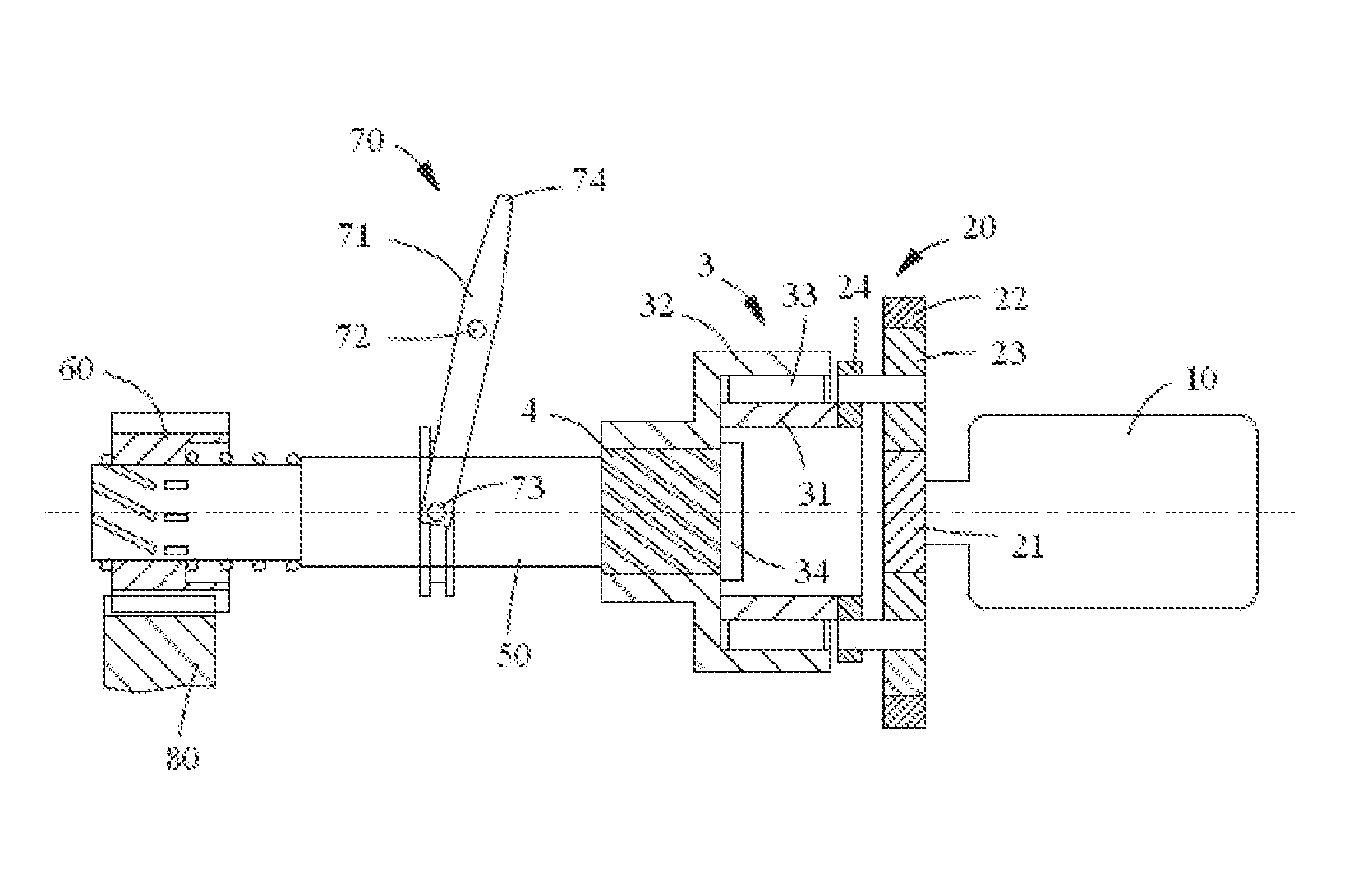

An engaging device and a starter comprising the engaging device, the starter comprises an electric motor, a speed reducer connected with the electric motor, an overrunning clutch comprising a driving piece connected with the speed reducer and a driven piece, and an engaging device with a main shaft connected with the driven piece of the overrunning clutch. A quick engagement may be achieved and a certain initial engagement depth is guaranteed. During the engaging process, the pinion may mesh into a ring gear in its own initiative, reducing the effect of teeth milling phenomenon on the ring gear to a maximum extent.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- F02N Class
- 252 Applications Filed
- 217 Patents Issued To-Date
- 86.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02N Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 20, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 20, 2028 |
