Combined electrostatic lens system for ion implantation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2017
Issued Date -
N/A
app pub date -
Dec 22, 2015
filing date -
Dec 26, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

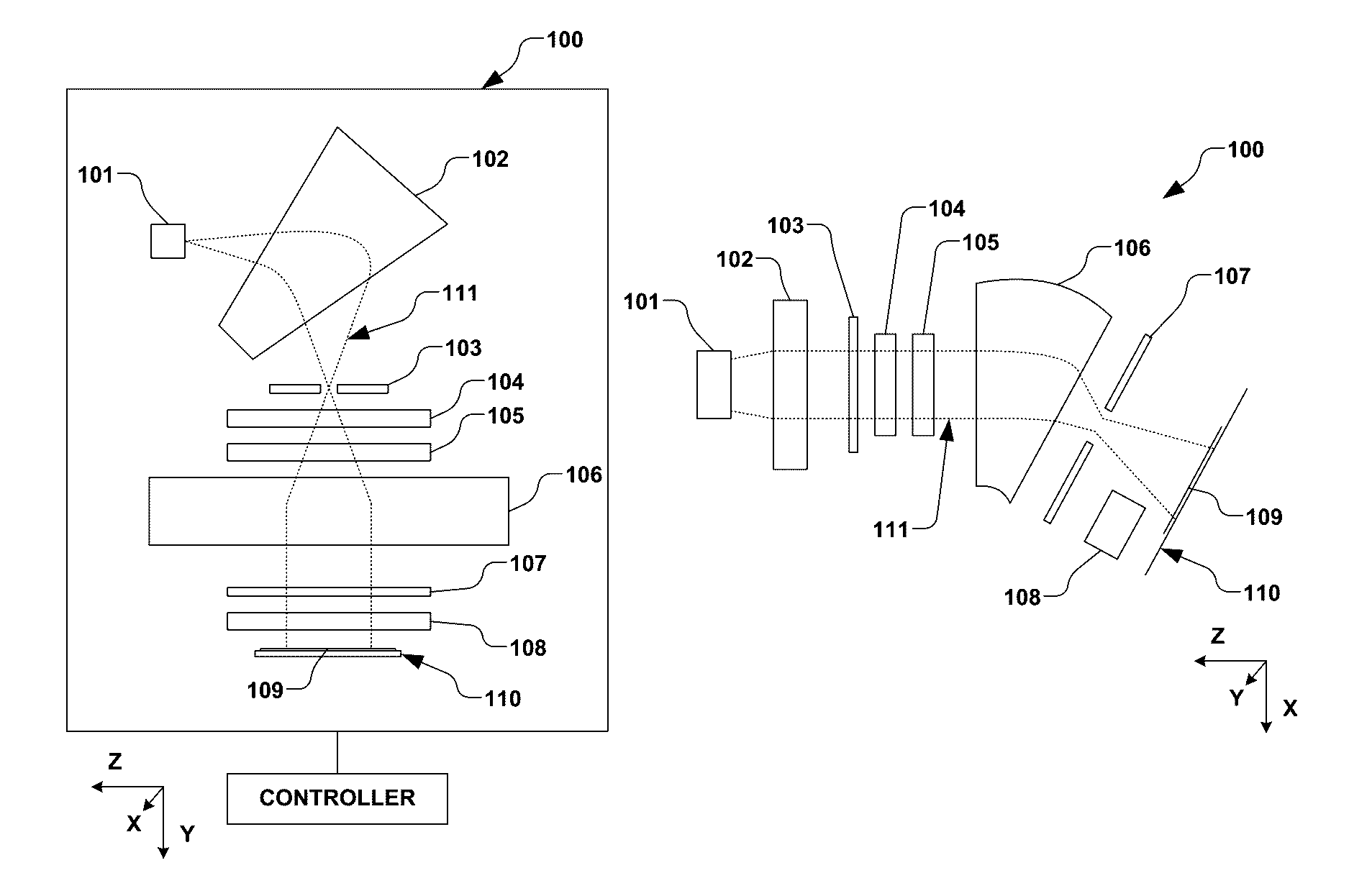

A system and method are provided for implanting ions at low energies into a workpiece. An ion source configured to generate an ion beam is provided, wherein a mass resolving magnet is configured to mass resolve the ion beam. The ion beam may be a ribbon beam or a scanned spot ion beam. A mass resolving aperture positioned downstream of the mass resolving magnet filters undesirable species from the ion beam. A combined electrostatic lens system is positioned downstream of the mass analyzer, wherein a path of the ion beam is deflected and contaminants are generally filtered out of the ion beam, while concurrently decelerating and parallelizing the ion beam. A workpiece scanning system is further positioned downstream of the combined electrostatic lens system, and is configured to selectively translate a workpiece in one or more directions through the ion beam, therein implanting ions into the workpiece.
