Sliding member
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2017
Grant Date -
Nov 19, 2015
app pub date -
May 13, 2015
filing date -
May 14, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

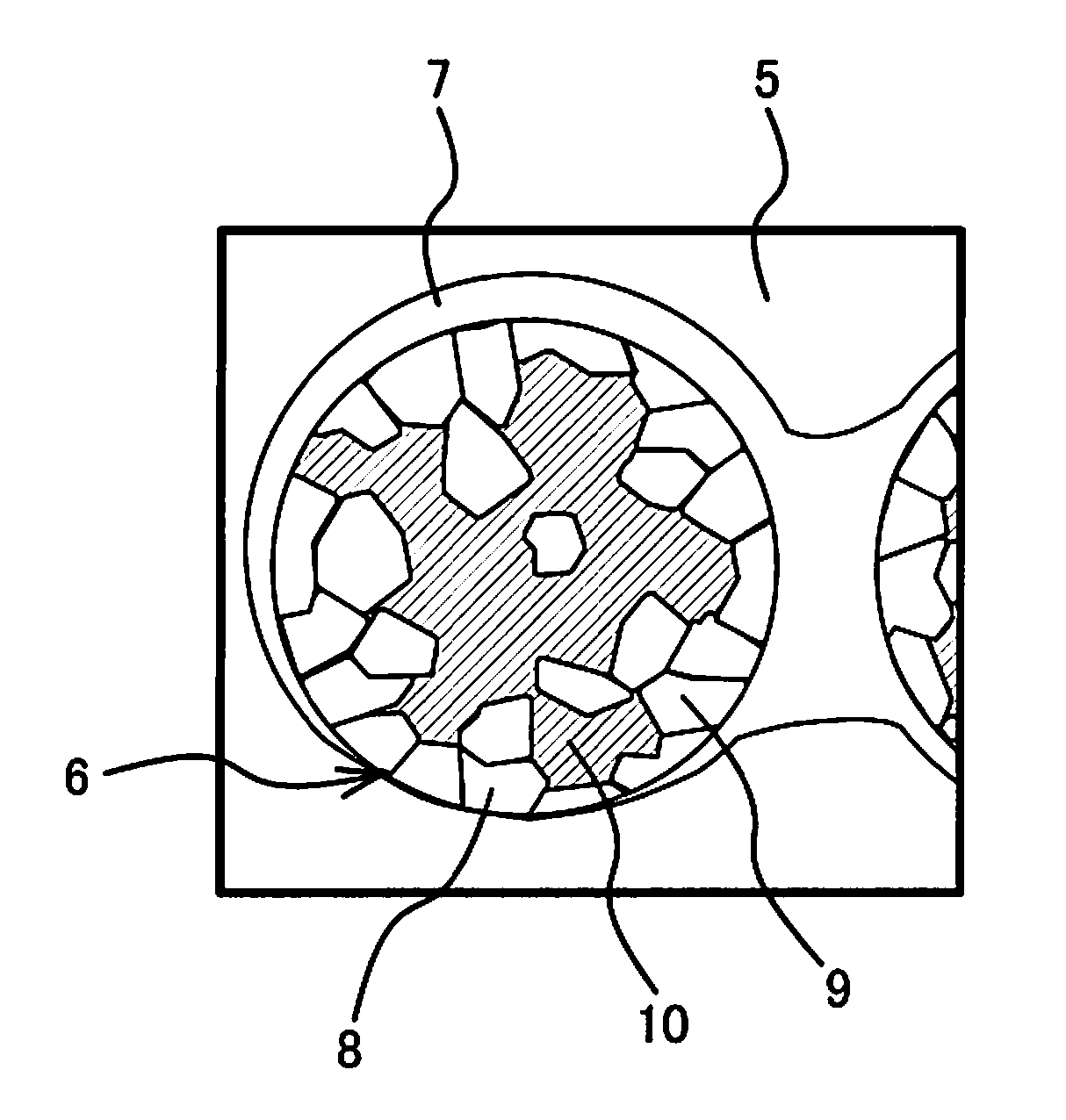

Provided is a sliding member having: a back metal layer; and a sliding layer on the back metal layer. The sliding layer includes a porous sintered layer and a resin composition. The sintered layer includes Ni—P alloy phase and granular steel phase made of a carbon steel including 0.3-1.3 mass % of carbon and having a structure of: ferrite phase; and perlite phase, or perlite phase and cementite phase. The Ni—P alloy phase binds the steel phases with one another and/or binds the steel phases with the back metal layer. The steel phase includes a low perlite phase part in a surface. The low perlite phase part has an area ratio of the perlite phase lowered by 50% or more compared with a total area ratio of the perlite phase and the cementite phase at a central part of the steel phase when observed in a cross-section.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
DAIDO METAL COMPANY LTD | NAGOYA-SHI AICHI 4600008 |
International Classification(s)

- 2015 Application Filing Year
- C23C Class
- 3009 Applications Filed
- 2118 Patents Issued To-Date
- 70.39 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Iwata, Hideki | Inuyama, JP | 69 | 553 |
# of filed Patents : 69 Total Citations : 553 | |||
Saito, Yasushi | Inuyama, JP | 146 | 2640 |
# of filed Patents : 146 Total Citations : 2640 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 3 Citation Count
- C23C Class
- 27.20 % this patent is cited more than
- 8 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2024 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2028 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
