Particles for use in wellbore fluids
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2017
Grant Date -
Feb 20, 2014
app pub date -
Jan 12, 2012
filing date -
Jan 12, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

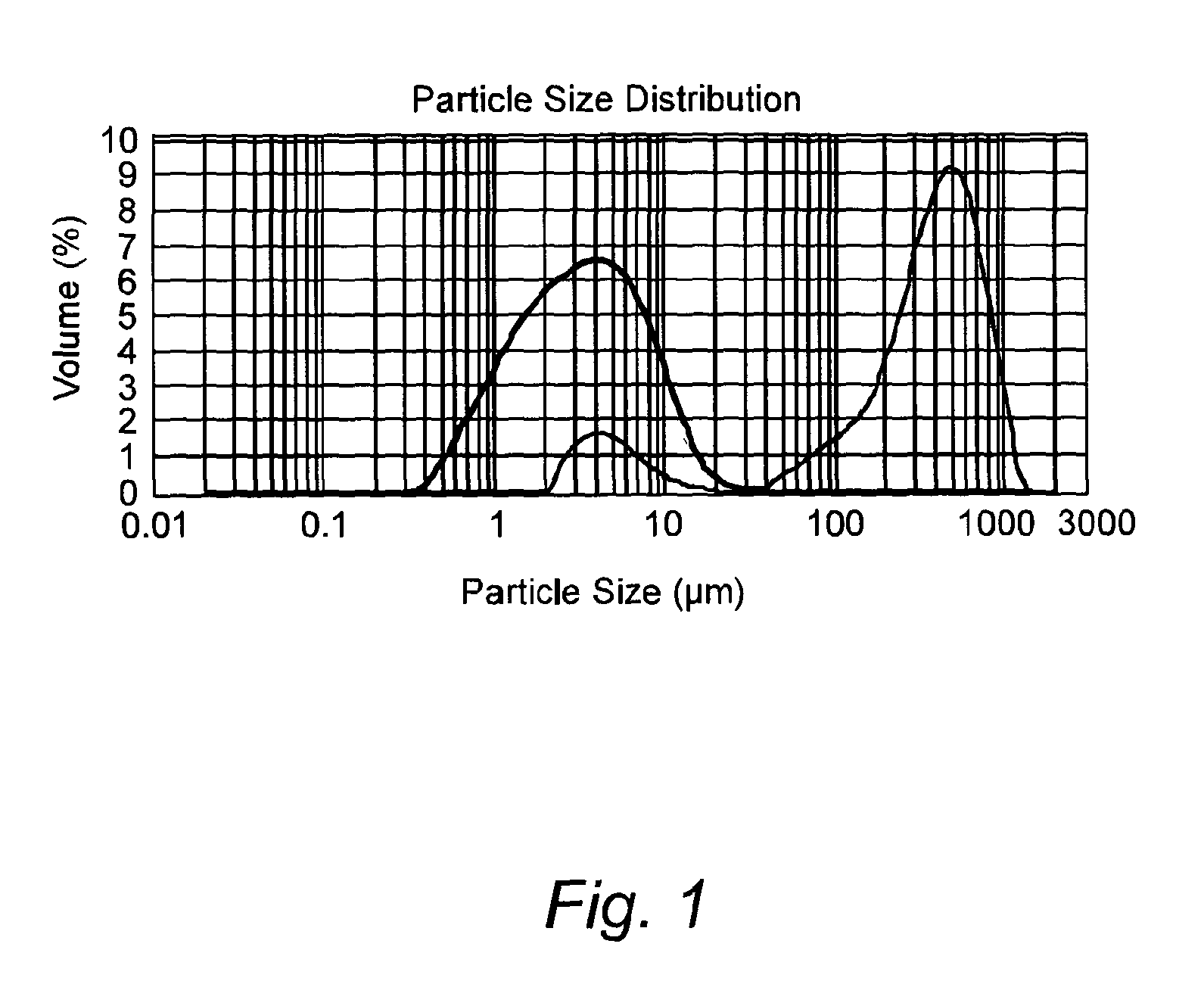

The invention provides a method of manufacturing a solid phase barite containing material for use in a wellbore. The method includes the steps of providing the barite containing material having relatively small particles with a particle size distribution of at least 50 vol % particles having a diameter in the range of 1 μm to 10 μm and at least 90 vol % particles having a diameter in the range of 4 μm to 20 μm; and contacting the barite containing material with a liquid in order to form relatively large particles having a particle size distribution with at least 90 vol % of the particles having a diameter of at least 30 μm. There is also described a method of treating a wellbore with a fluid including the barite containing material.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C09K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2028 |
