Blow molded airflow conduit with outer insulation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2017
Issued Date -
N/A
app pub date -
Oct 27, 2014
filing date -
Oct 27, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

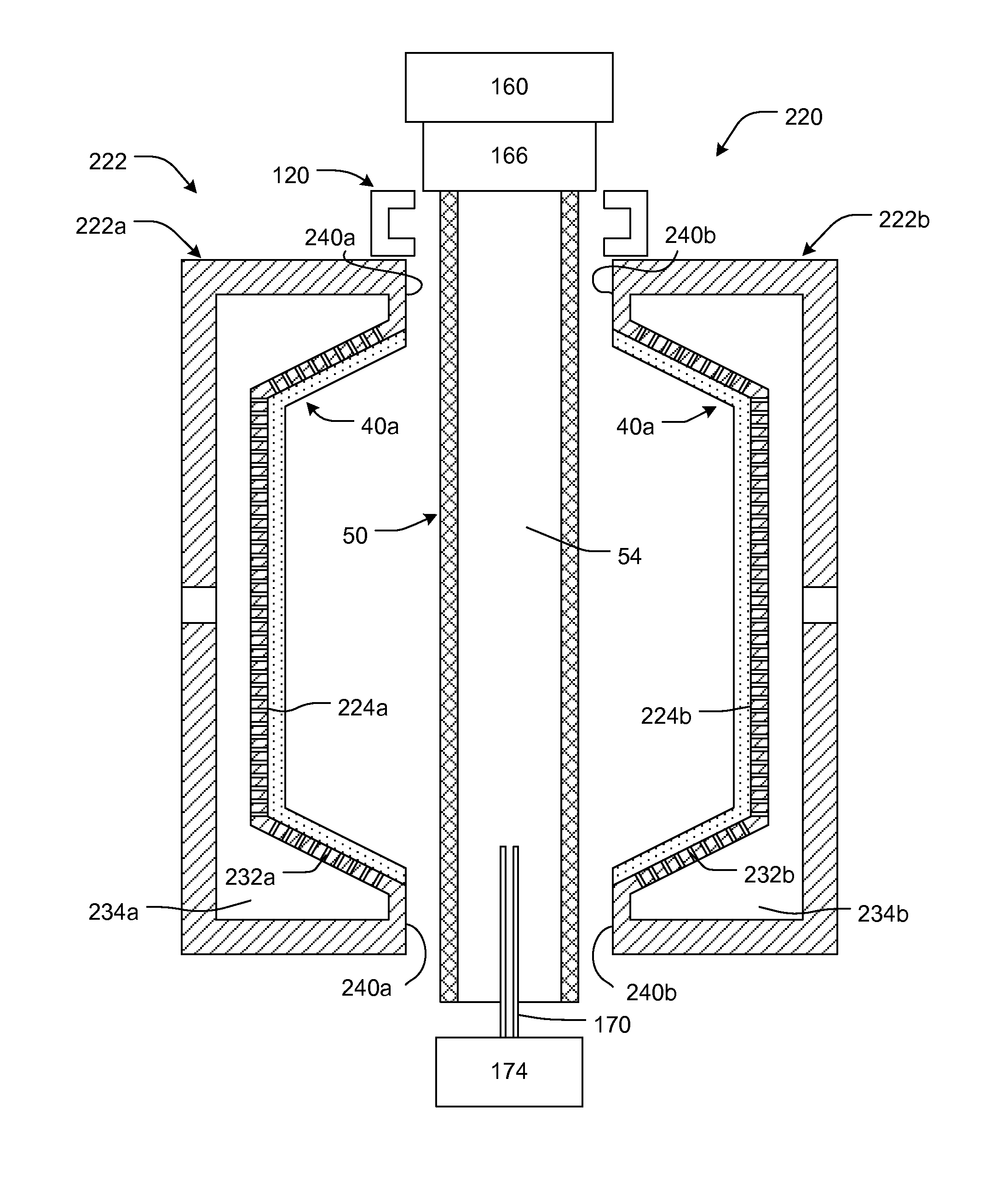

A method of forming a blow molded plastic article wherein the article comprises an airflow conduit, comprising: providing a first sheet of insulation material located on a insulation carrier; providing a blow molding mold including two halves and having a molding surface defining a molding cavity to form the article; locating the insulation carrier between the two halves of the blow molding mold; transferring the first sheet of insulation material from the insulation carrier to the blow molding mold; introducing an extrudate of thermoplastic composition between the two halves of the blow molding mold; closing the blow molding mold; forming the extrudate to a shape of the mold cavity of the blow molding mold to form the article; and bonding the extrudate to the first sheet of insulation material as the extrudate is being formed to the shape of the mold cavity.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- B29C Class
- 4829 Applications Filed
- 3911 Patents Issued To-Date
- 80.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B29C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2028 |
