Twin clamp device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2017
Grant Date -
Mar 24, 2016
app pub date -
Mar 25, 2014
filing date -
Apr 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

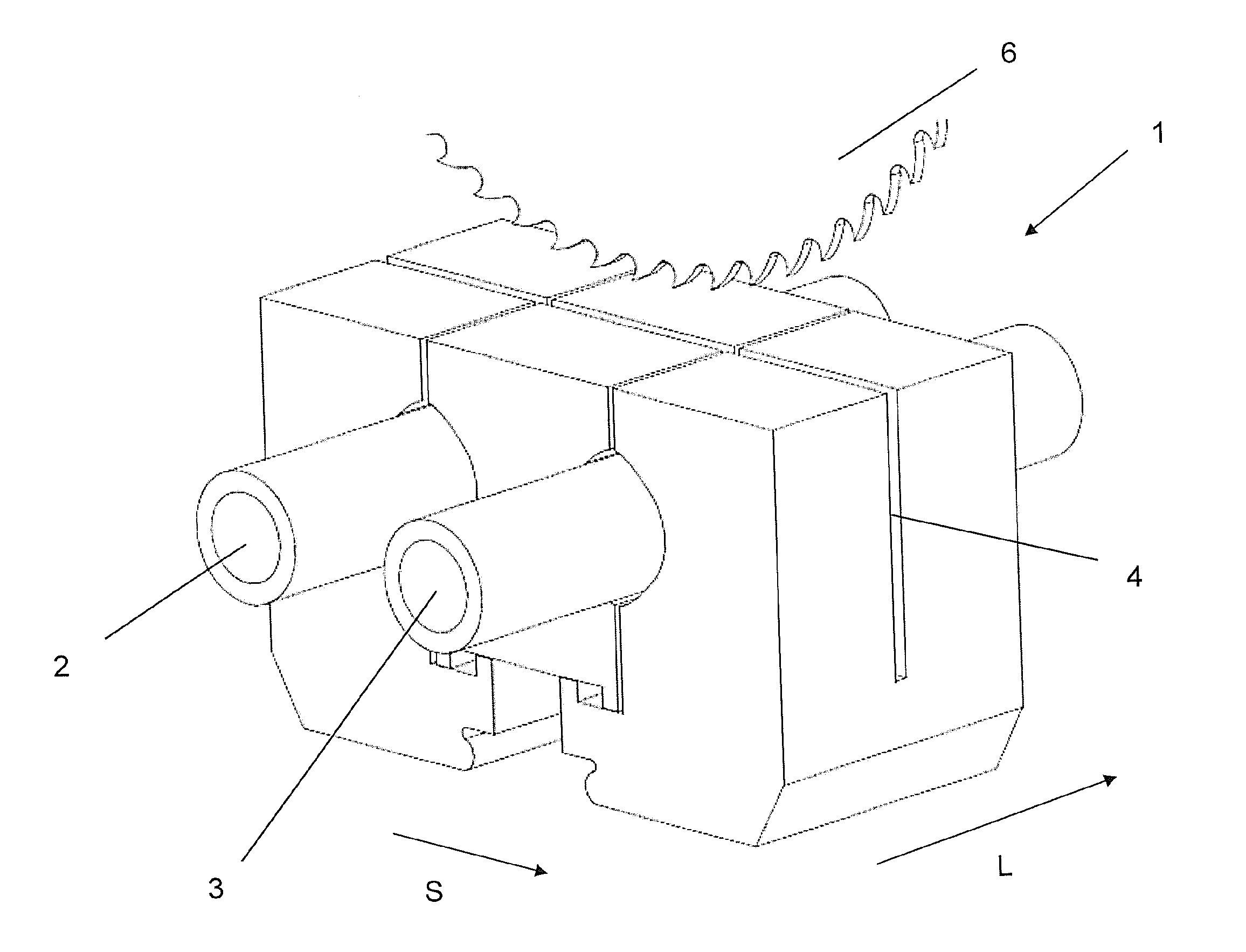

A twin clamp comprising a first individual clamp, having an inner first clamping jaw and an outer first clamping jaw, a second individual clamp, having an inner second clamping jaw and an outer second clamping jaw. The individual clamps are coupled to one another via a first mounted clamping lever and a second mounted clamping lever. The first clamping lever is connected to the inner first clamping jaw and to the outer first clamping jaw; the second clamping lever is connected to the inner second clamping jaw and to the outer second clamping jaw, and comprising a first spring which pushes apart the inner first clamping jaw and the outer first clamping jaw counter to force exerted by the first clamping lever, and a second spring, which pushes apart the inner second clamping jaw and the outer second clamping jaw counter to force exerted by the second clamping lever.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B25B Class
- 687 Applications Filed
- 599 Patents Issued To-Date
- 87.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2028 |
