Apparatus for creating formed elements used to make wound stents
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2017
Grant Date -
Apr 28, 2016
app pub date -
Dec 16, 2015
filing date -
Apr 3, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

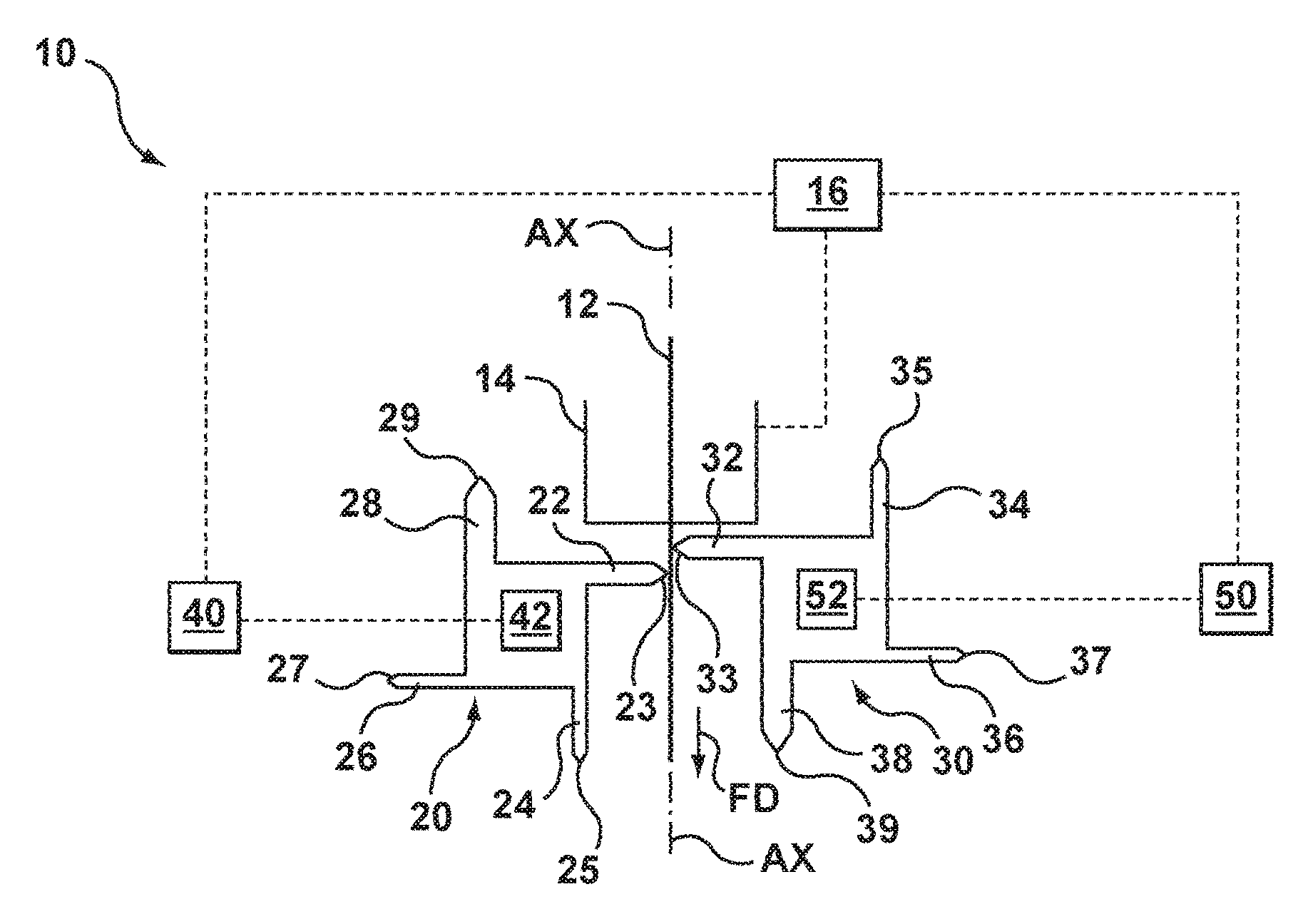

A method for forming a wave form for a stent includes moving a first forming portion of a first forming member across an axis along which a formable material is provided in a first direction substantially perpendicular to the axis to engage and deform the formable material while engaging the formable material with a first forming portion of the second forming member. The method includes moving the first forming portion of the first forming member and the first forming portion of the second forming member across the axis in a second direction that is substantially opposite the first direction to draw and form the formable material over the first forming portion of the second forming member, disengaging the first forming member from the formable material, and rotating the first forming member to position a second forming portion of the first forming member to face the formable material.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- A61F Class
- 5839 Applications Filed
- 4516 Patents Issued To-Date
- 77.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 178 Citation Count
- A61F Class
- 98.70 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2028 |
