Refrigerated merchandiser with shelf air discharge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 2017
Issued Date -
N/A
app pub date -
Apr 22, 2011
filing date -
Apr 23, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

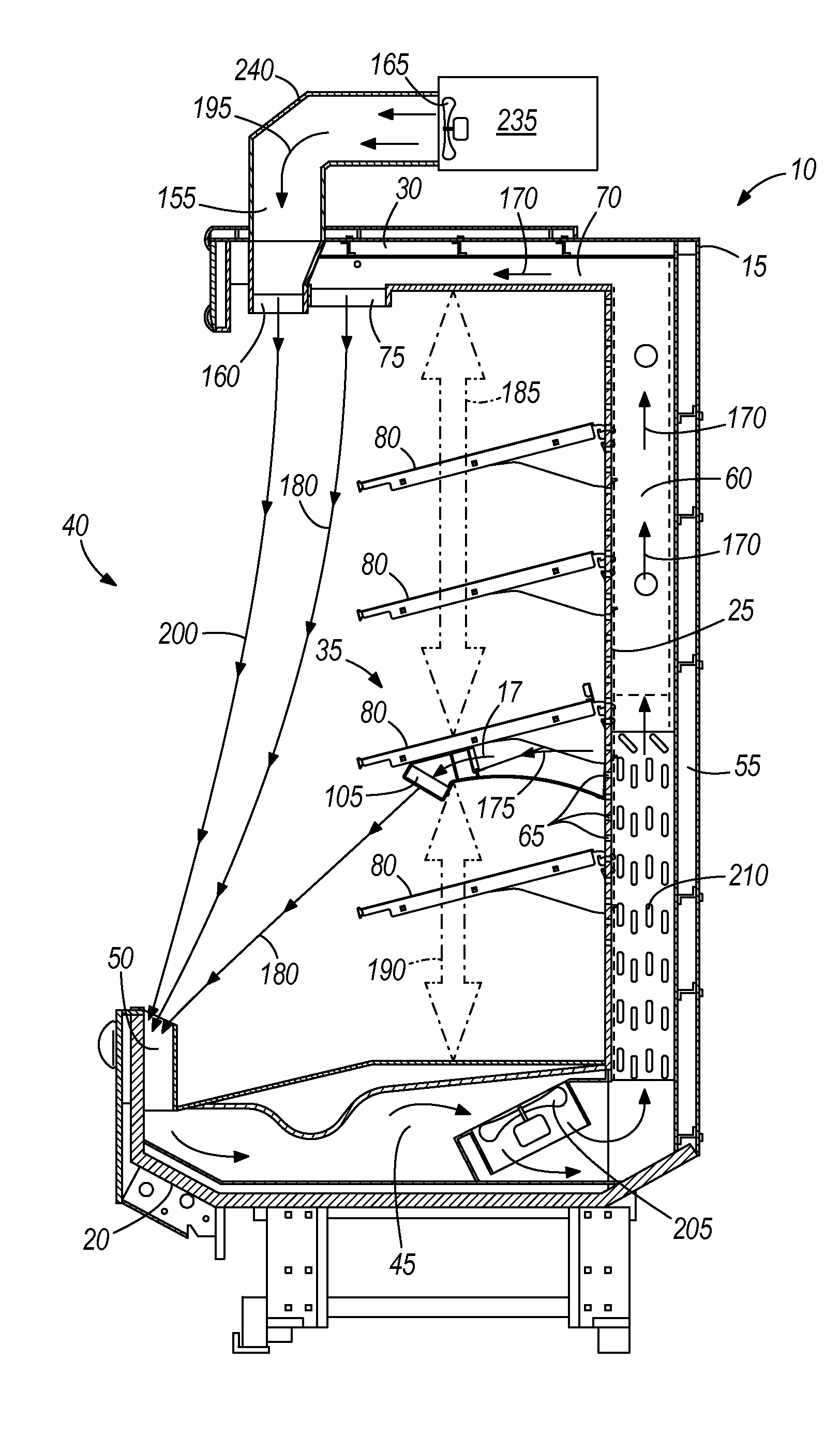

A merchandiser including a case that has an air inlet and defines a product display area with a customer access opening. The merchandiser also includes a canopy that has a first air outlet and a second air outlet, a first passageway connecting the air inlet with the first air outlet to direct a first airflow through the first air outlet at least partially across the opening to define a primary air curtain, and a second passageway in fluid communication with a HVAC system by ducting coupled between the merchandiser and the HVAC system to direct a second airflow defining a secondary air curtain from the HVAC system through the second air outlet at least partially across the opening. The primary and secondary air curtains cooperate with each other to minimize infiltration of ambient air into the product display area.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- A47F Class
- 380 Applications Filed
- 280 Patents Issued To-Date
- 73.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- A47F Class
- 20.27 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 13, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 13, 2028 |
