Device and a method for generating an electrical signal with a suppressed frequency band
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Issued Date -
N/A
app pub date -
Jun 18, 2014
filing date -
Jun 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

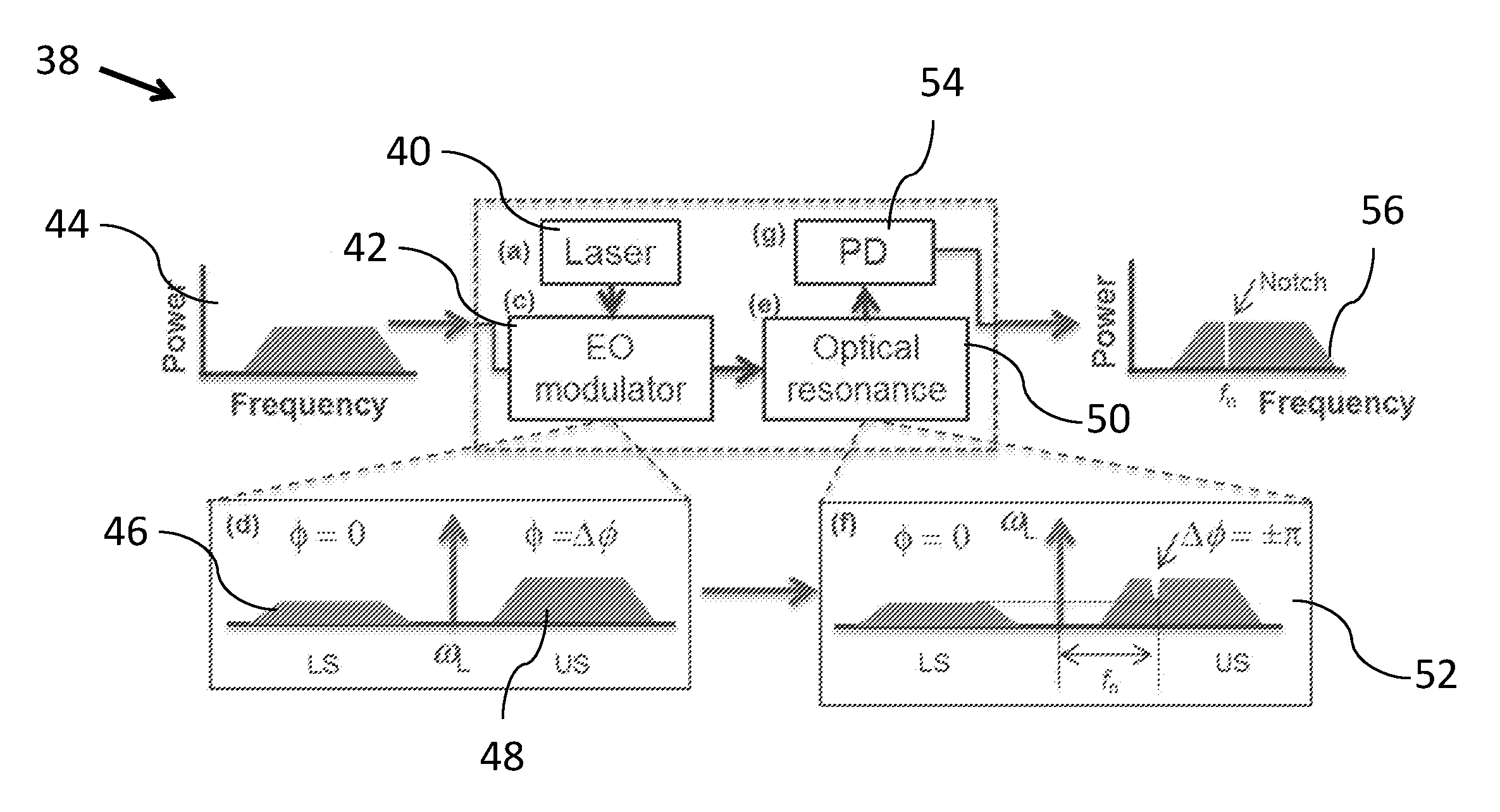

Disclosed herein is a notch filter and a method for generating an electrical signal with a suppressed frequency band. The filter generates an optical signal by modulating a modulation optical wave with an electrical signal to generate first and second sidebands. The first sideband or the second sideband has less power than the other. The filter then modifies the optical signal by equalizing the power of light within the first side band at a selected frequency band and light within the second side band at the selected frequency band. The filter then produces an antiphase relationship between the light within the first side band at the selected frequency band and the light within the second side band at the selected frequency band. The filter then detects the modified optical signal to generate a copy of the electrical signal with suppressed frequency components within the selected frequency band.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- H04B Class
- 8074 Applications Filed
- 7172 Patents Issued To-Date
- 88.83 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04B Class
- 13.65 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
