Mapping volumes of interest in selected planes in liquid samples
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Issued Date -
N/A
app pub date -
Jul 9, 2014
filing date -
Feb 24, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

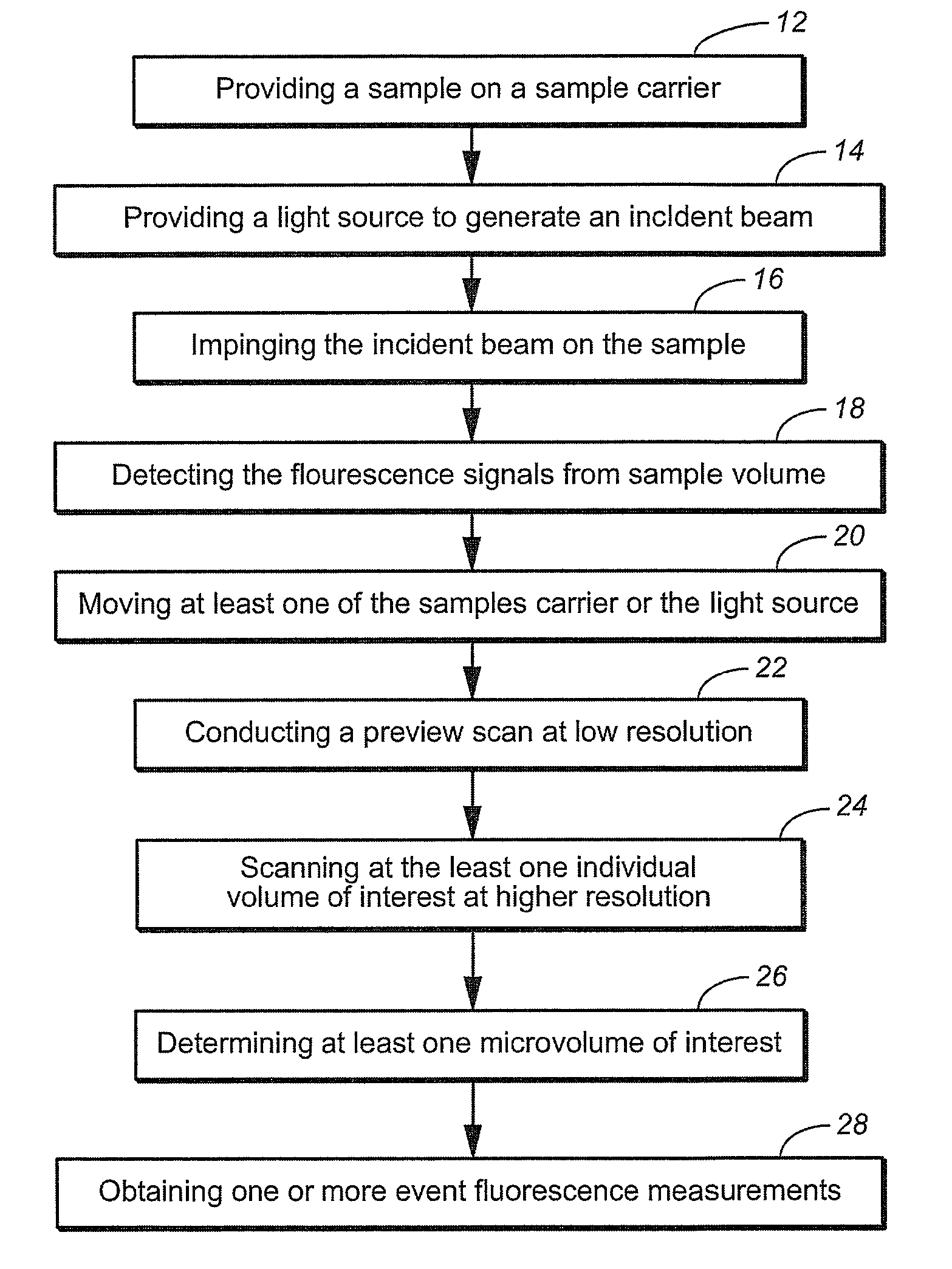

A method and apparatus for three dimensional fluorescent analysis of a target in a liquid sample having fluorescent analyte as a target substance or fluorescent label on the target substance. A rotating carousel carries liquid samples beneath a beam having a beam spot at a horizontal plane of the sample. The carousel advances slowly a linear direction during rotation so that a pattern of overlapping spiral scans provide R-theta two-dimensional samples of the entire plane to identify locations of volumes of interest where fluorescence is measurably higher than background. These locations are probed in the depthwise direction to find locations of fluorescent analyte in three dimensions. Light from the analyte or fluorescent label is detected and processed to characterize the target by color, size or other morphology.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
