Low friction travel limiting stop module for a rotational drive system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Grant Date -
Jul 14, 2016
app pub date -
Jan 12, 2016
filing date -
Jan 13, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

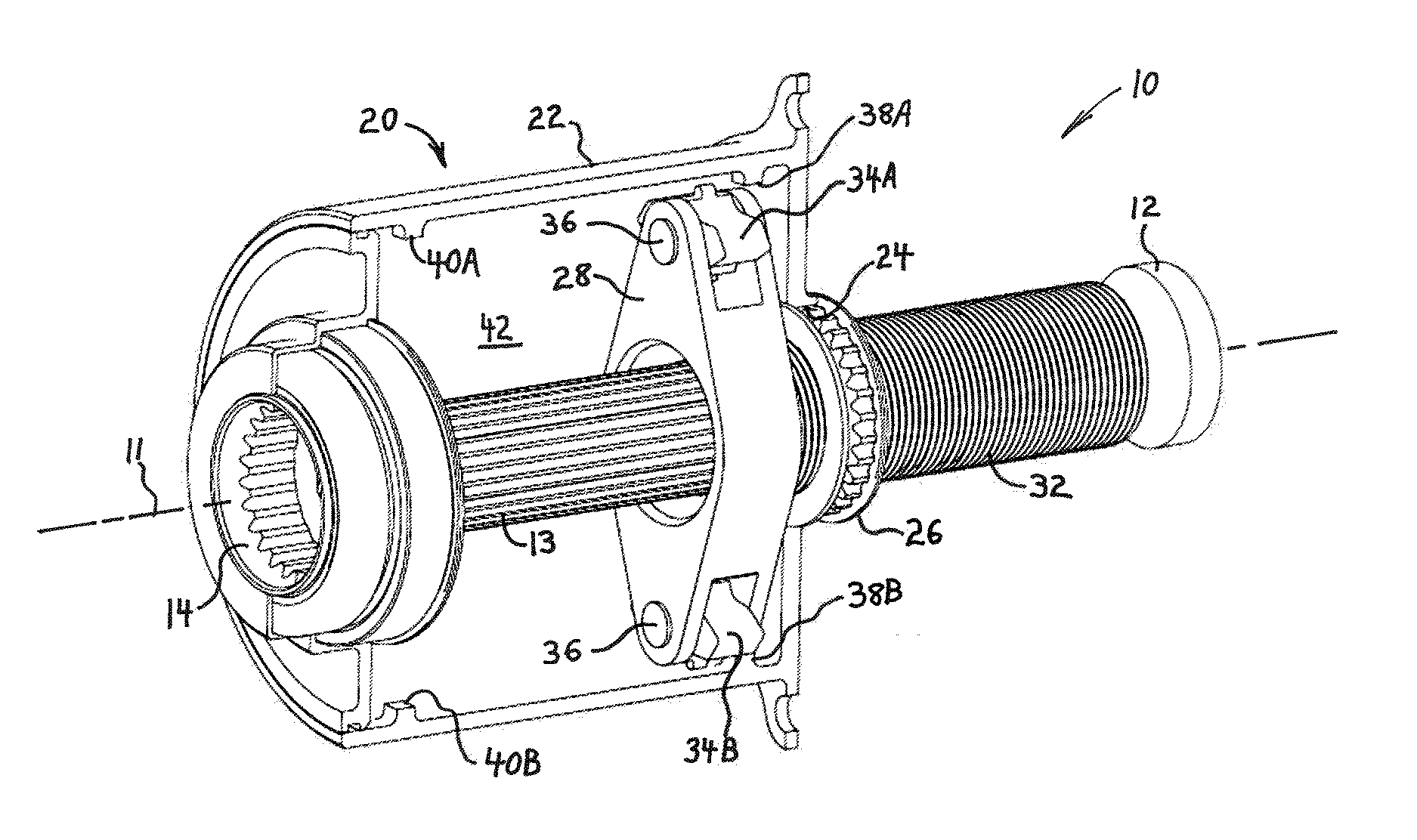

A stop module halts rotation of a shaft of a rotational drive system when an axial stroke limit is reached without the use of frictional brake plates. The module has a fixed nut and a pawl carrier coaxially mounted on the shaft for axial travel along the shaft and rotation with the shaft. The pawl carrier includes a screw portion mated with the nut such that rotation of the pawl carrier with the shaft causes the pawl carrier to travel axially along the shaft. A pawl member is pivotally coupled to the pawl carrier, and a stop element is fixed at an axial limit location. The pawl carrier is axially displaceable from a non-limit position wherein the pawl member is clear of the stop element during rotation to a limit position wherein the pawl member is interfered with by the stop element during rotation to stop rotation of the shaft.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16H Class
- 3082 Applications Filed
- 2343 Patents Issued To-Date
- 76.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16H Class
- 25.11 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
