Casement window opening control device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Issued Date -
N/A
app pub date -
Jun 8, 2016
filing date -
Oct 1, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

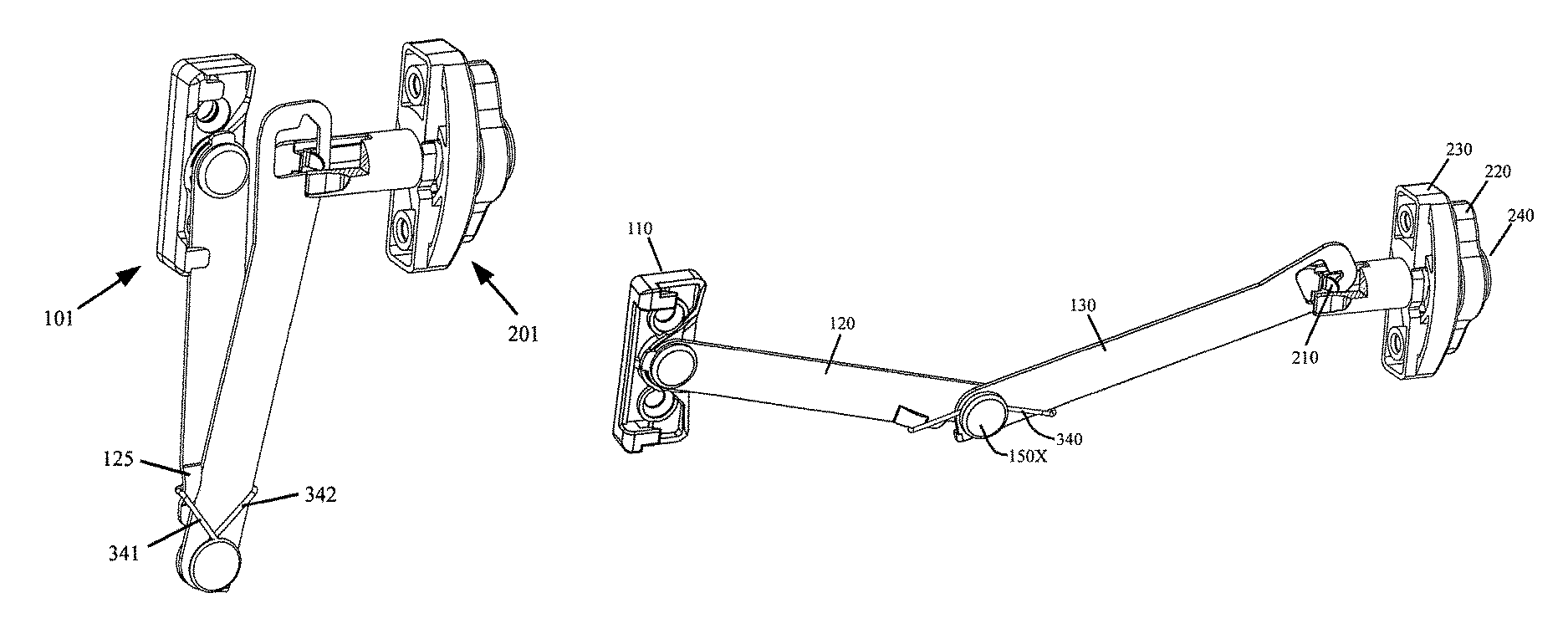

A device may limit opening of a sash hingedly coupled to a master frame, and includes: a bracket attached to the sash; a first arm having a first end pivotally coupled to the bracket; a second arm having a first end pivotally coupled to the first arm's second end; means for biasing the second arm into a retracted position; and a release assembly. The release assembly is secured to the master frame and includes a hook pivotable between a first position and a second position, which, in the first position, may be releasably received in an opening in the second end of the second arm when the second arm is in the retracted position, as the sash is closed and received within the master window frame The second arm is disengaged from the hook, permitting full opening of the sash, when the hook is pivoted into the second position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- E06B Class
- 1055 Applications Filed
- 752 Patents Issued To-Date
- 71.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E06B Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
