Water-soluble delayed release capsules, related methods, and related articles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Grant Date -
Apr 9, 2015
app pub date -
Oct 3, 2014
filing date -
Oct 7, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

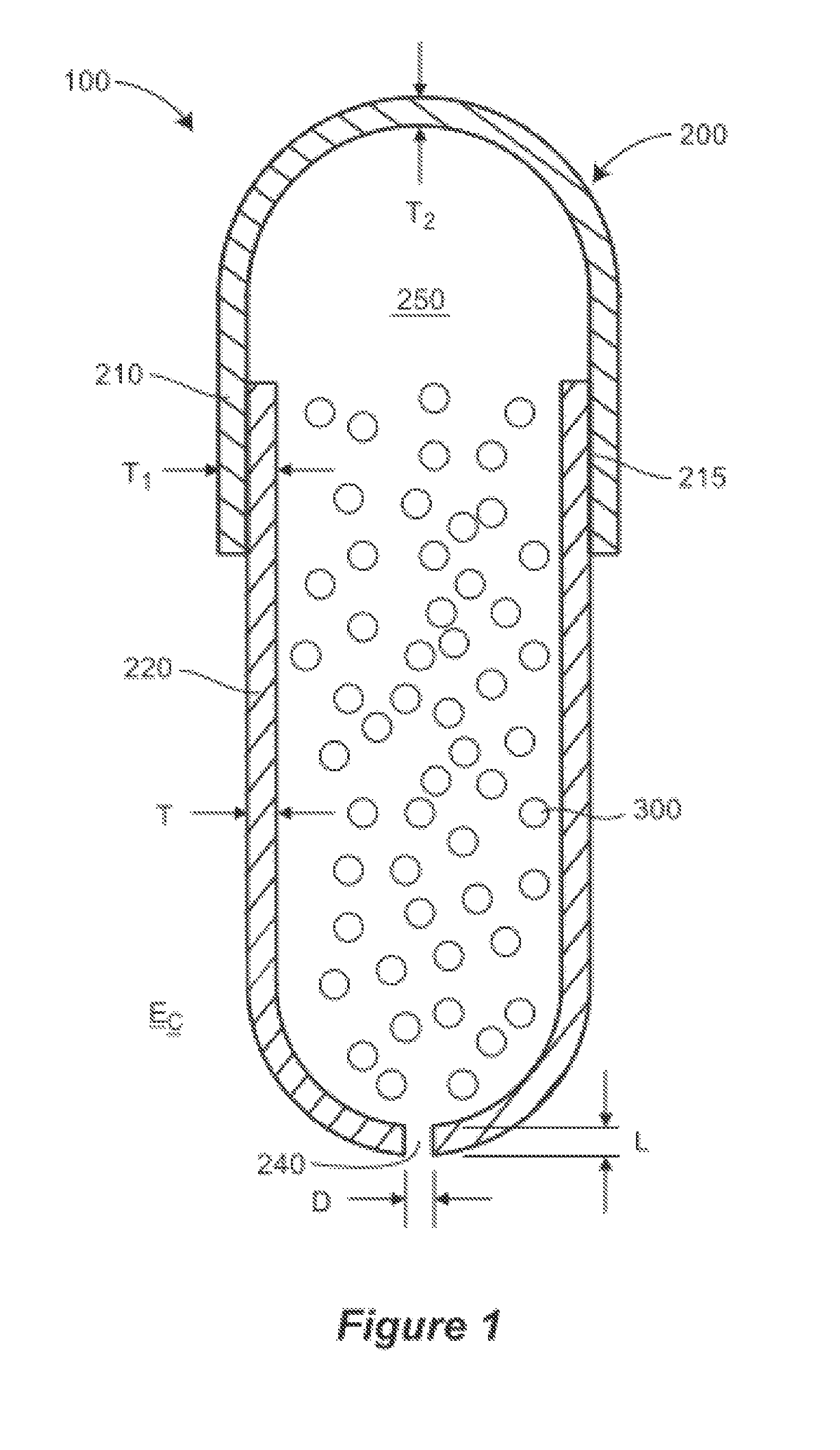

Disclosed herein are capsules for delayed release of an active ingredient contained therein, in particular water-soluble capsules for delayed release of water-sensitive, gas-generating compositions into an aqueous liquid medium. The delayed release capsules incorporate one or more gas-relief pinholes for gas-generating water-sensitive compositions contained in the capsules, such as inorganic bleach or other alkaline compositions intended for delayed release into a wash medium during a laundry cycle. The pinholes permit gas generated within the capsule due to exposure to environmental water vapor to escape from the capsule interior, preventing pressure build-up and capsule deformation during storage. The pinholes are sized to prevent or otherwise substantially limit the passage of liquids when submerged in a liquid medium (e.g., liquid water in an aqueous liquid medium). Related articles and methods for delivering the capsules in combination with a detergent or other laundry composition are also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- C11D Class
- 693 Applications Filed
- 568 Patents Issued To-Date
- 81.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- C11D Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
