Nanoporous silica polyamine composites with surface-bound zirconium (IV) and methods of use
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Grant Date -
Mar 6, 2014
app pub date -
Nov 6, 2013
filing date -
Mar 22, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

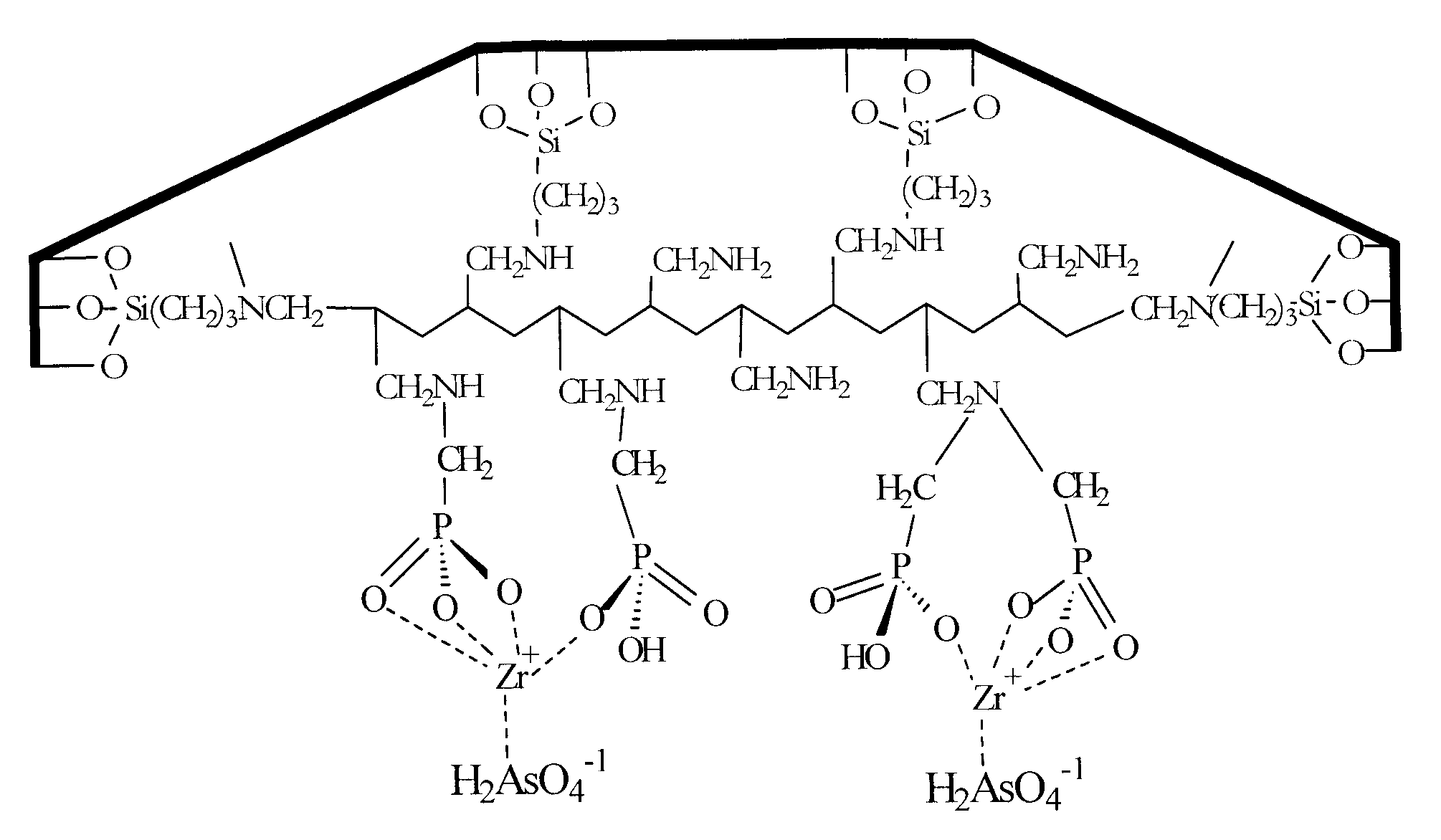

Silica polyamine composites (SPC) made from silanized amorphous nano-porous silica gel and poly(allylamine) (BP-1) were functionalized with phosphorus acid using the Mannich reaction, resulting in a phosphonic acid modified composite (BPAP). Zirconium (IV) was immobilized on BPAP. Arsenate anions strongly adsorbed on the ZrBPAP composite in the pH range 2 to 8, while arsenite only adsorbed well at pH 10. Regeneration of the resin was carried out successfully for As(V) and As(III) using 2M-H2SO4. Four adsorption/desorption cycles were performed for As(V) at pH 4 without significant decrease in the uptake performance. ZrBPAP capture capacity and kinetics for arsenate were tested for longevity over 1000 cycles with only a marginal loss of performance.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B01J Class
- 2563 Applications Filed
- 2267 Patents Issued To-Date
- 88.46 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B01J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
