Mandrel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Issued Date -
N/A
app pub date -
Aug 28, 2014
filing date -
Aug 28, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|

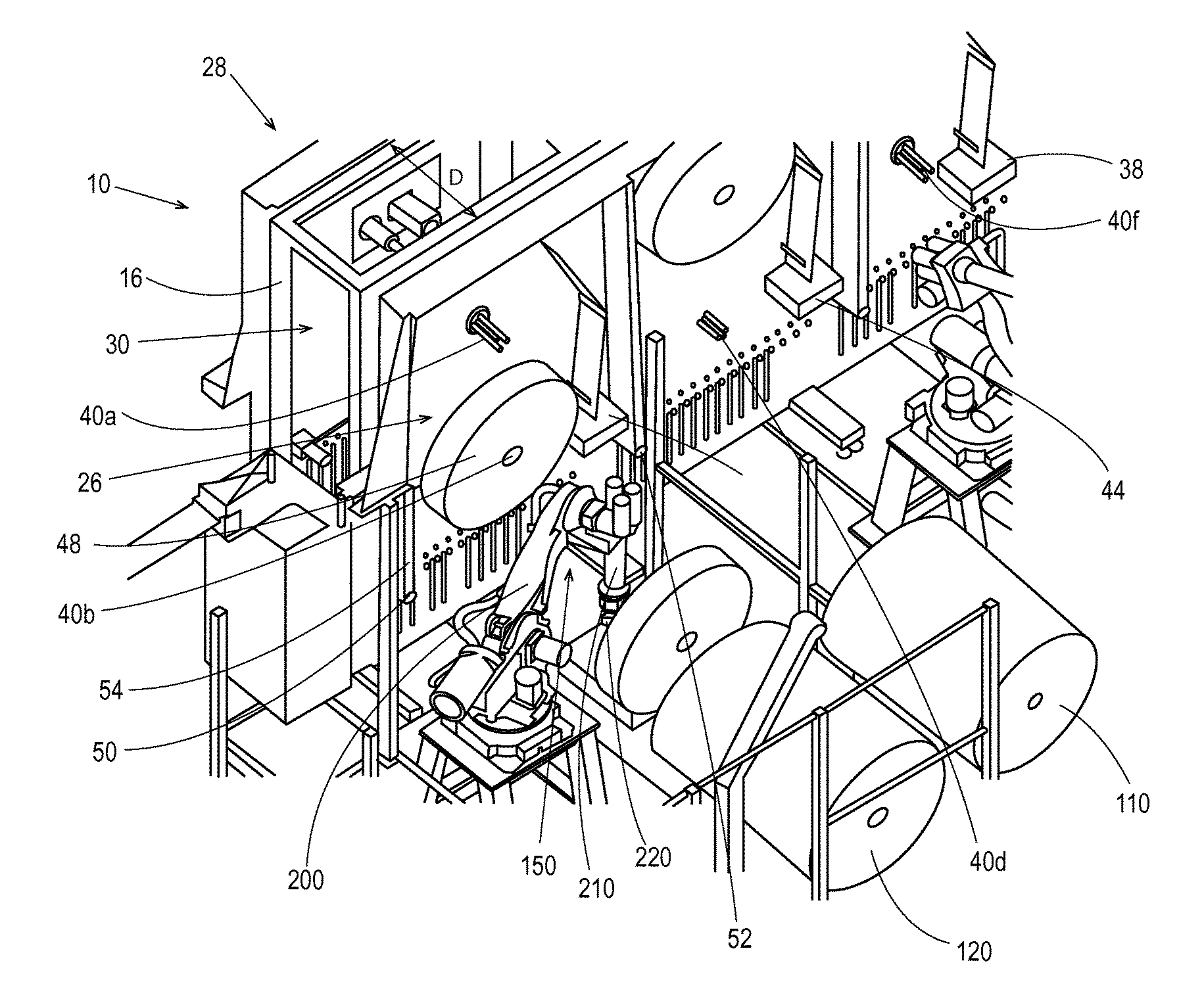

Abstract
A mandrel suitable for supporting and unwinding a convolutely wound web material is disclosed. The mandrel has a mandrel shaft with a longitudinal axis, a plurality of mandrel arms extending from the mandrel shaft, and at least one expansion element disposed upon a respective each of the mandrel arms. The mandrel shaft is capable of rotating about the longitudinal axis. Each of the mandrel arms is disposed and rotatable about the longitudinal axis. The at least one expansion element is expandable radially away from the respective mandrel arm relative to the longitudinal axis. The convolutely wound web material is disposable about each of the mandrel arms. Further, the at least one expansion element is expandable into contacting and releasable engagement with the convolutely wound web material. The convolutely wound web material is fixably and releasably disposed about each of the mandrel arms.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2014 Application Filing Year
- B65H Class
- 1287 Applications Filed
- 1166 Patents Issued To-Date
- 90.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65H Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
