Method and device for connecting sheet metal parts to form a laminated core
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Grant Date -
Sep 26, 2013
app pub date -
Nov 4, 2011
filing date -
Nov 5, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

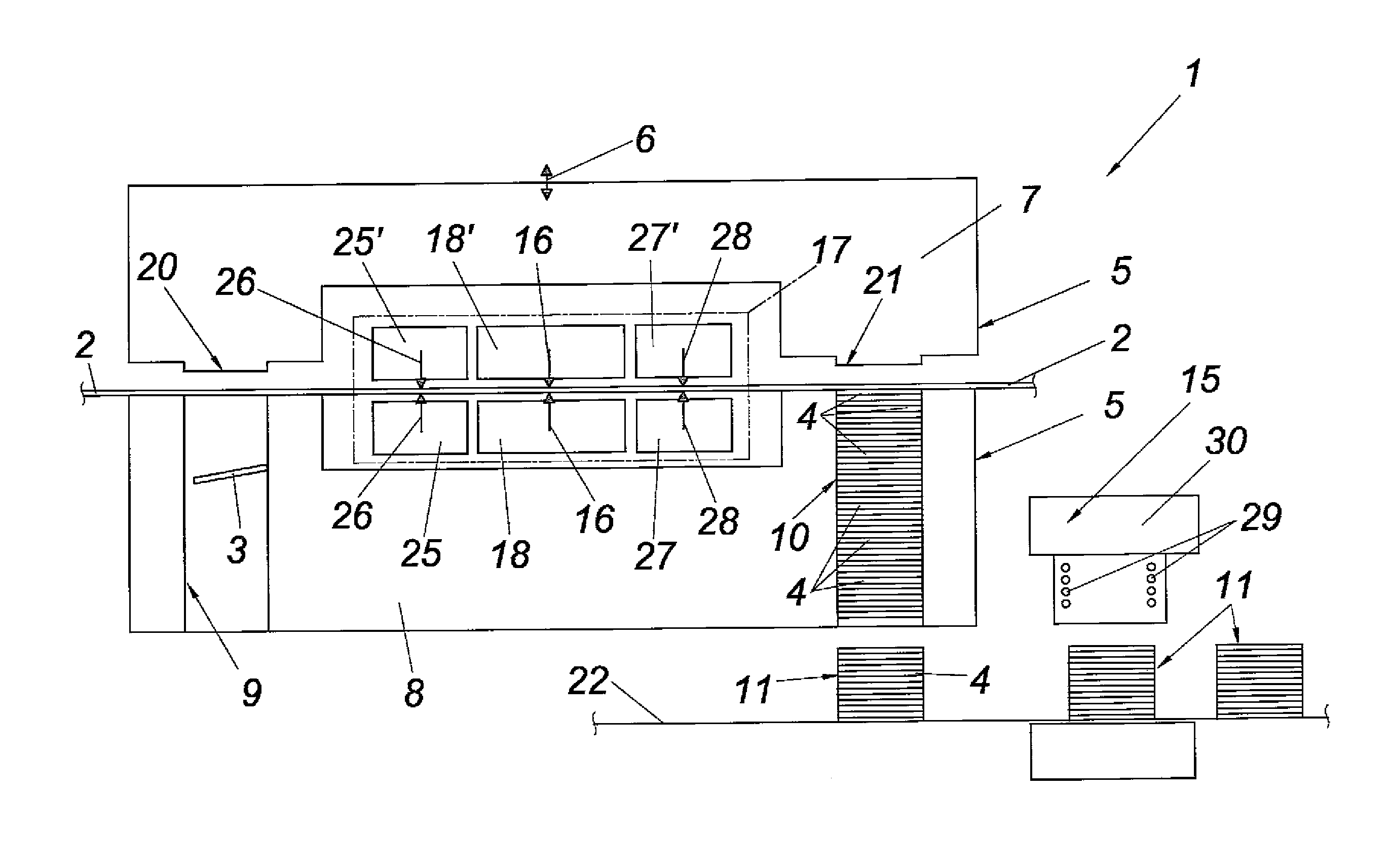

The invention relates to a method for connecting sheet metal parts (4) to form a laminated core (11), wherein sheet metal parts (4) are separated, in particular punched, from a sheet metal strip (2) that has, at least in some areas, a layer having curable polymer adhesive (12), and the sheet metal parts (4) are preliminarily connected to form a laminated core (11), the preliminary connection comprising plasticizing the adhesive (12) at least in some areas and joining the sheet metal parts (4) in order to connect the sheet metal parts by means of the plasticized adhesive (12) of at least one of the sheet metal parts (4), and in a subsequent step the laminated core (11) having preliminarily connected sheet metal parts (4) is subjected to a curing of the adhesive (12). In order to create an advantageous connection between the sheet metal parts, the plasticizing of the adhesive (12) comprises the introduction of a softener (16), in particular H2O.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02K Class
- 16.06 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
