Apparatus for refurbishing a gas turbine nozzle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 2017
Grant Date -
Mar 5, 2015
app pub date -
Nov 10, 2014
filing date -
Aug 15, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

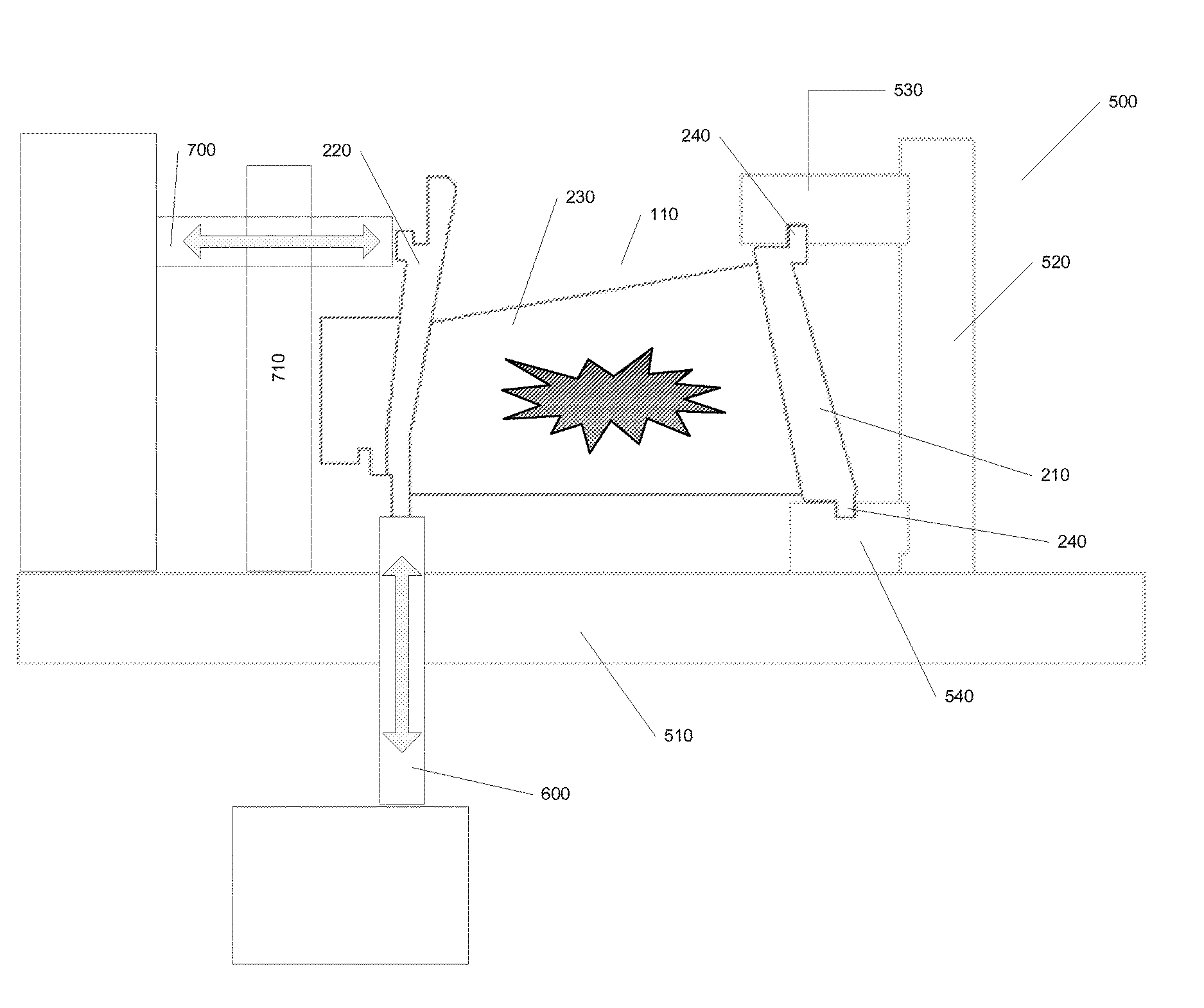

A gas turbine nozzle can be refurbished to reduce downstream deflection. The outer shroud of the gas turbine nozzle is held in a fixture, and then the nozzle is heated. The heated nozzle is then reshaped by a force exerted upon the inner shroud of the gas turbine, reducing the downstream deflection of the nozzle. After the deformation of the nozzle, an aft hook of the nozzle that has been adjusted by previous refurbishment efforts can be rebuilt to remove the previous adjustments.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23P Class
- 35.68 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 6, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 6, 2028 |
