Superconducting magnet system for head imaging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2017
Grant Date -
Dec 3, 2015
app pub date -
Aug 19, 2013
filing date -
Jan 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

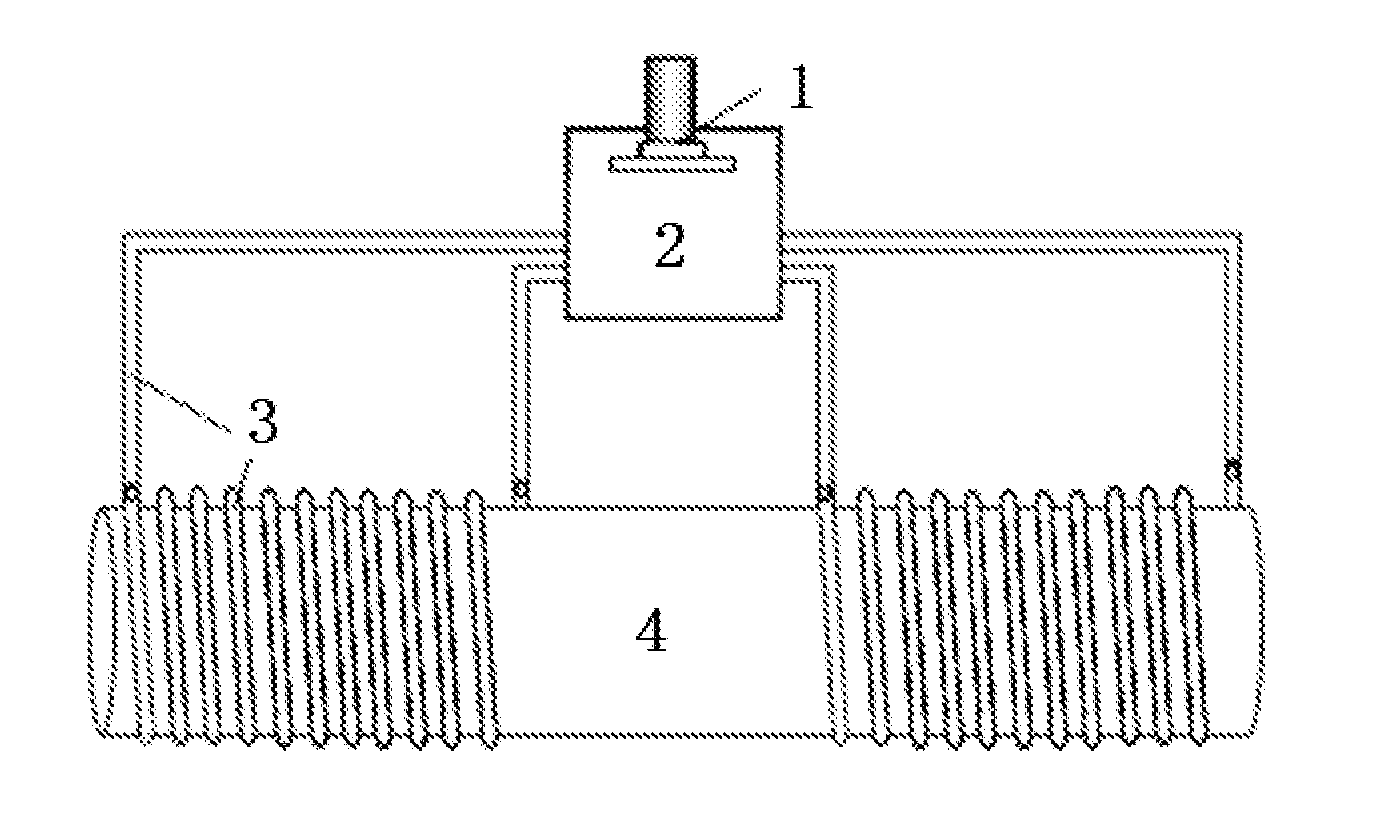

A superconducting magnet system for head imaging is disclosed which includes a cryocooler, a high-pressure helium container, a self-excitation heat pipe and a superconducting magnet. A second stage coldhead of the cryocooler is connected to the high-pressure helium container for converting the helium gas in the high-pressure helium container into liquid helium. The self-excitation heat pipe forms a closed cooling loop, and liquid helium in the high-pressure helium container flows circularly in the self-excitation heat pipe. The self-excitation heat pipe cools the superconducting magnet, wherein part of the liquid helium in the self-excitation heat pipe is converted into the helium gas due to the heat disturbance generated by the superconducting magnet, and the helium gas interacts with the liquid helium to generate liquid helium vibration.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G01R Class
- 4386 Applications Filed
- 3938 Patents Issued To-Date
- 89.79 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01R Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2028 |
