US Patent No: 9665070

Device with image guide for timepieces

---

Abstract

---

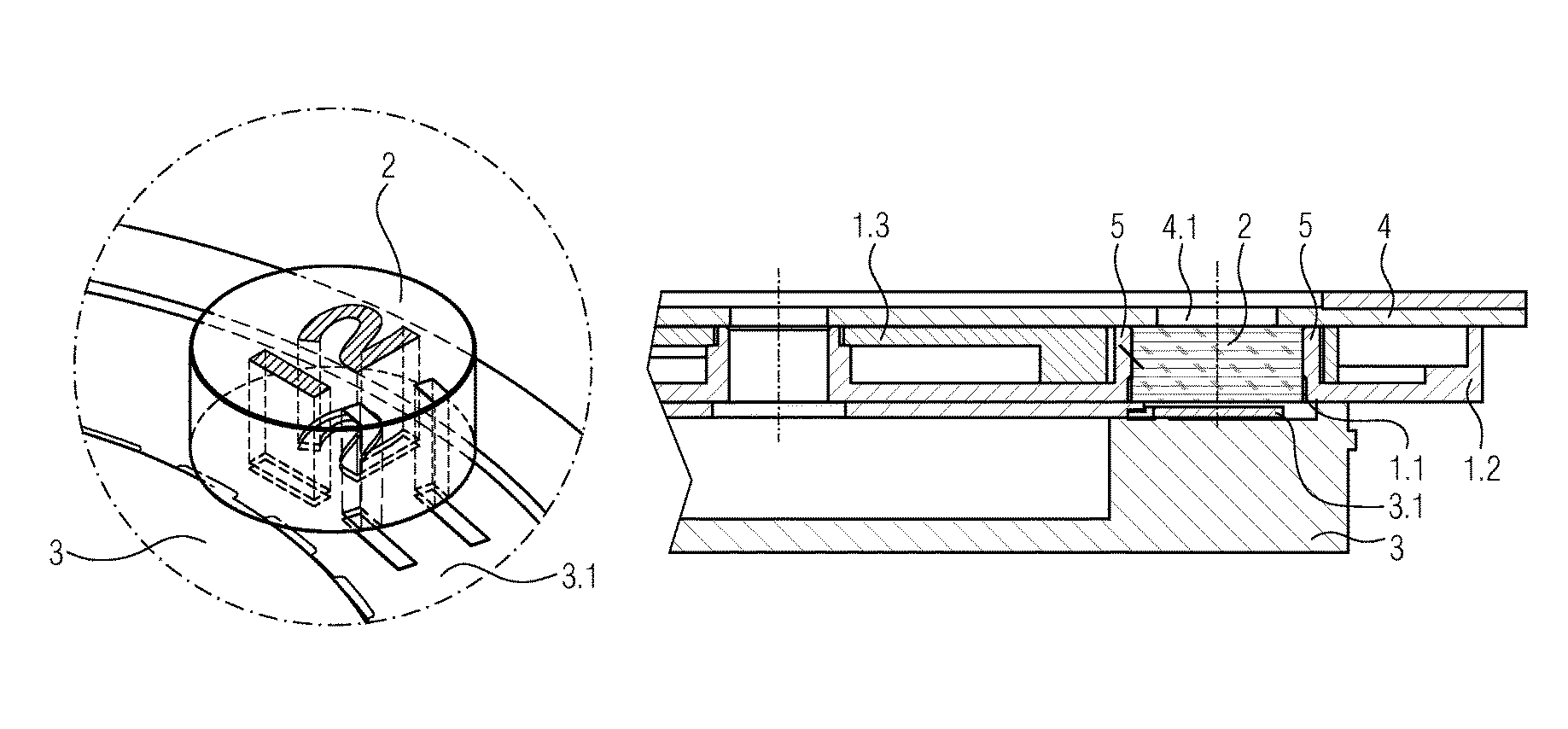

A device which is suitable for integration into a timepiece, in particular in the form of a timepiece module, another type of watch module or a basic watch movement. The device includes at least one opening, in each of which an associated image guide is mounted, and for each of these image guides the device including means for fastening the image guide in the associated opening, such that the image guide allows display information displayed on a representation plane to be reproduced on a display plane.

---



---
