Device for regulating the pressure and/or mass flow for a space propulsion system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2017
Grant Date -
Mar 6, 2014
app pub date -
Sep 4, 2013
filing date -
Sep 5, 2012
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

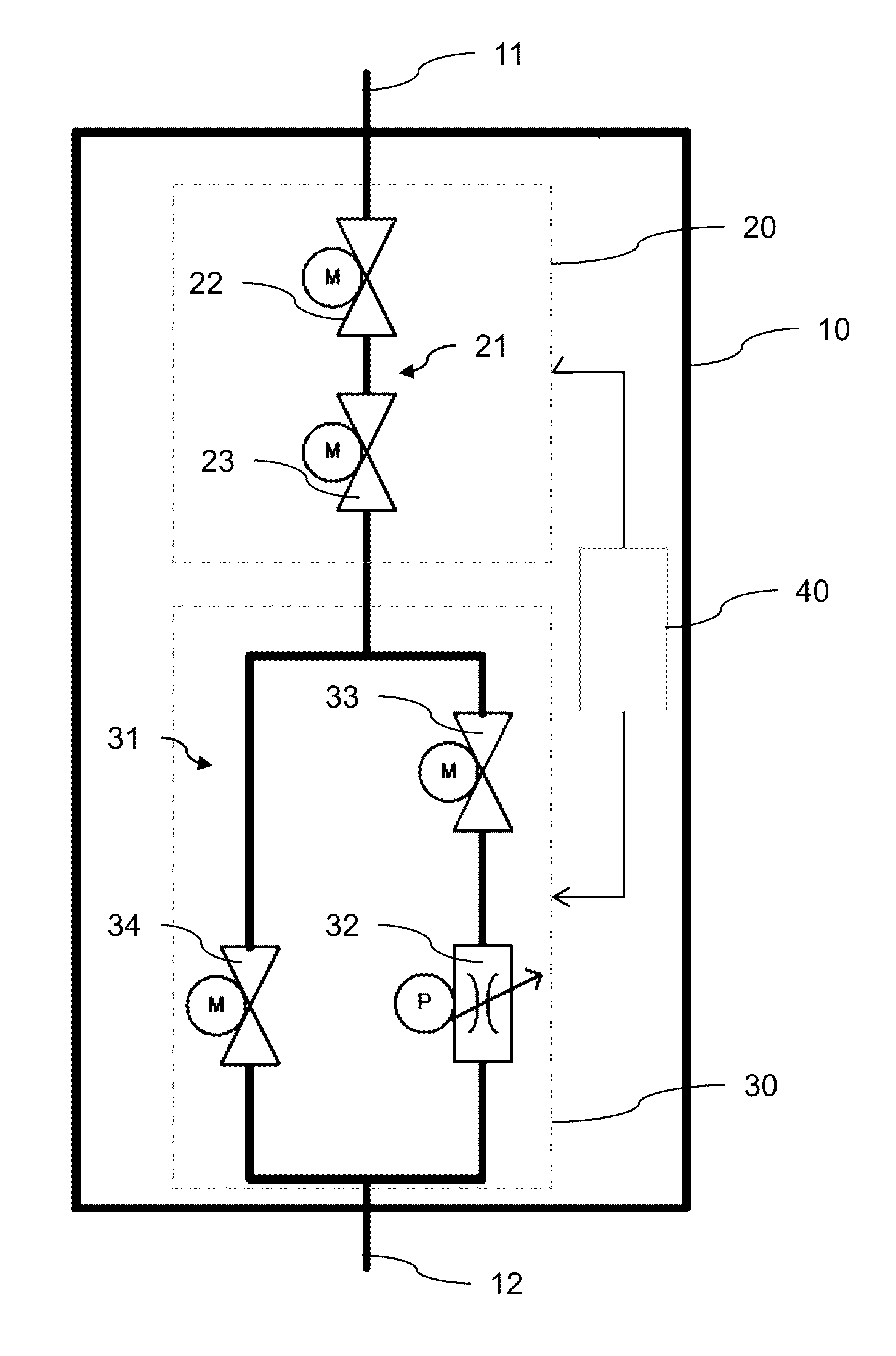

A device for regulating pressure and/or mass flow of a gaseous or liquid fluid conveyed through a line in a space propulsion system includes a first, piezoelectrically actuatable regulating valve and at least two second, magnetically actuatable regulating valves. The regulating valves are connected to each other and to a line input in such a way that in a nominal mode the pressure and the mass flow of the fluid can be set by the first regulating valve, and a connection or isolation of the first regulating valve with or from the line input can be produced by the second regulating valves. In an emergency mode the pressure and the mass flow of the fluid can be set by the second regulating valves.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
ARIANEGROUP GMBH | 82024 TAUFKIRCHEN |
International Classification(s)

- 2013 Application Filing Year
- F16K Class
- 1452 Applications Filed
- 1315 Patents Issued To-Date
- 90.57 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Maier, Thomas | Lauffen, DE | 205 | 1047 |
# of filed Patents : 205 Total Citations : 1047 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 1 Citation Count
- F16K Class
- 31.02 % this patent is cited more than
- 8 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 30, 2024 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2028 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
