Recessed adjustable door hinge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2017
Grant Date -
Mar 30, 2017
app pub date -
Sep 19, 2016
filing date -
Sep 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

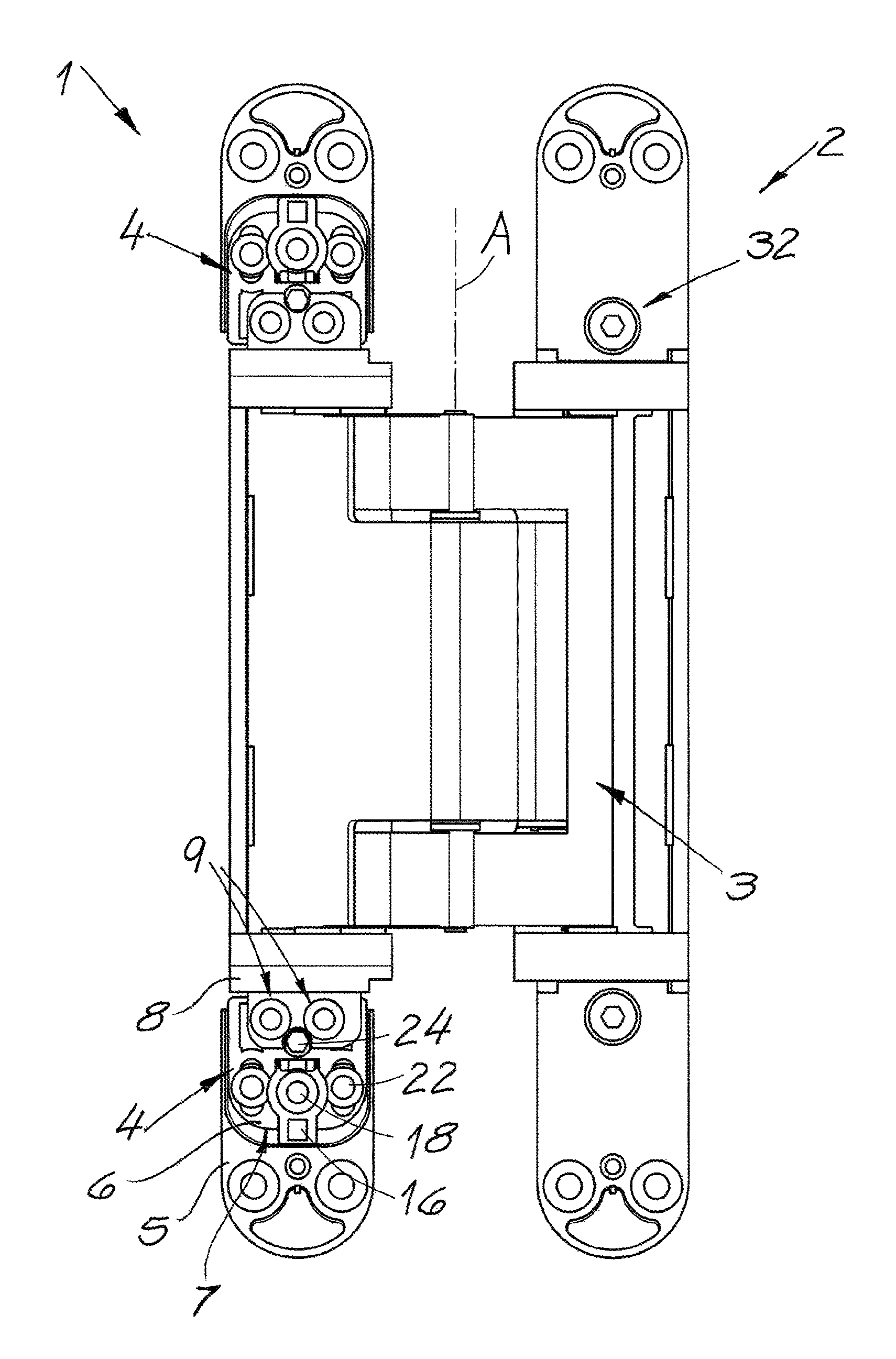

A hinge has two housings adapted to be recessed in a door frame and a door edge and a link assembly extending between the housings and having ends pivoted in the housings. A vertically shiftable support body in one of the housings has a row of teeth extending horizontally in a first direction. A bearing block sitting on the support body forms a pivot for the respective end of the link assembly. A screw extending through the bearing block and threaded into the support body is tightenable to bear on and fix the bearing block on the support body. A gear captured in the seat of the bearing block meshes with the row of teeth and is rotatable to shift the bearing block on the support body in the first horizontal direction in an untightened condition of the screw.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- E05D Class
- 529 Applications Filed
- 382 Patents Issued To-Date
- 72.22 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- E05D Class
- 21.57 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 30, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2028 |
