Method of sorting particles or particle clusters in a fluid flowing in a channel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 2017
Grant Date -
Nov 19, 2009
app pub date -
May 8, 2009
filing date -
May 13, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

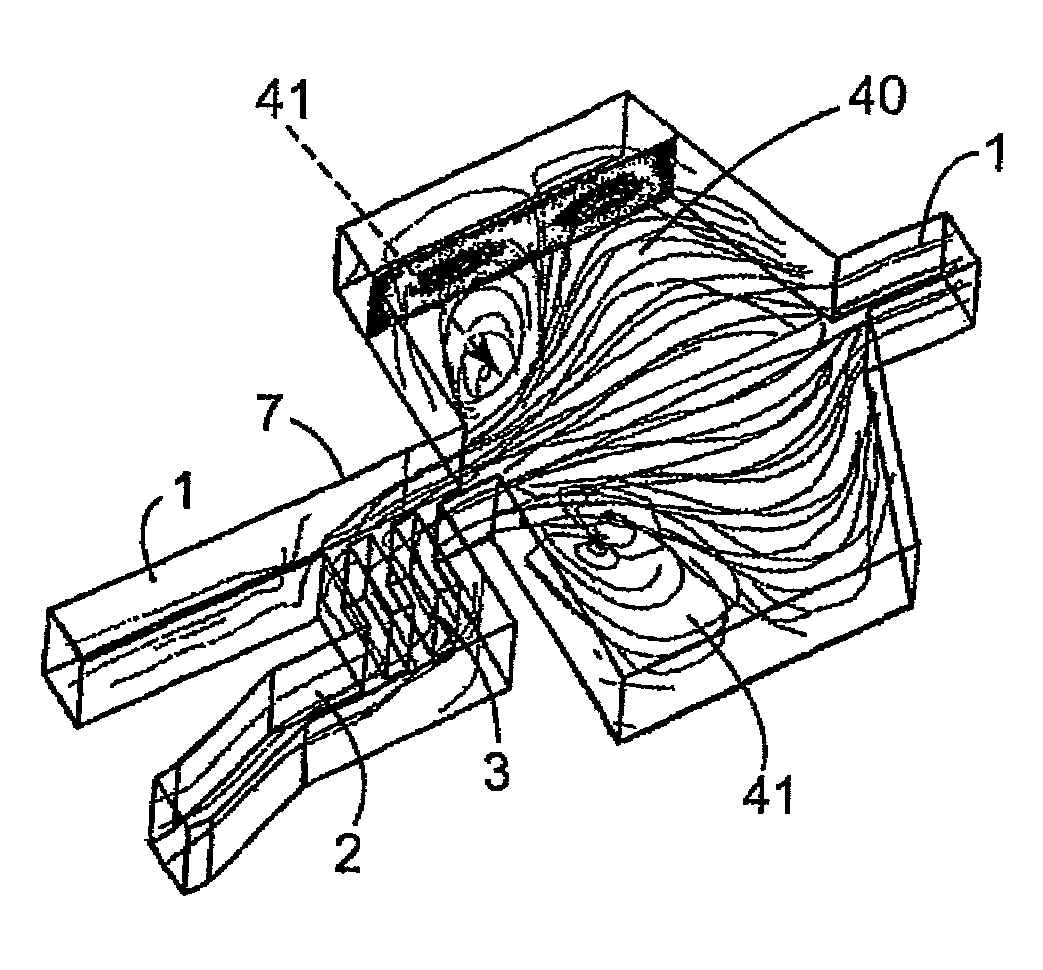

The invention relates to a method of sorting submillimetric particles entrained in a fluid flowing in an axial direction of a main channel, the particles being of density different from the density of the fluid, and the method being characterized in that it implements, in a first region of the main channel, focusing of the particles along a wall (7) of the main channel (1) by means of at least one focusing device (3), and downstream from said region, collecting of particles in at least one sorting and take-off device (40) in communication with the main channel (1) via an opening such that the particles collected are selected by the take-off device as a function of the size of said particles, and in that said at least one sorting and take-off device is a recirculation chamber (40) in communication with the main channel (1) and presenting at least one recirculation zone (41) for concentrating the collected particles.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2009 Application Filing Year
- B07C Class
- 131 Applications Filed
- 69 Patents Issued To-Date
- 52.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B07C Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 30, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 30, 2028 |
