On-board unit, communication method, and recording medium
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2017
Grant Date -
Nov 12, 2015
app pub date -
Dec 16, 2013
filing date -
Dec 18, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

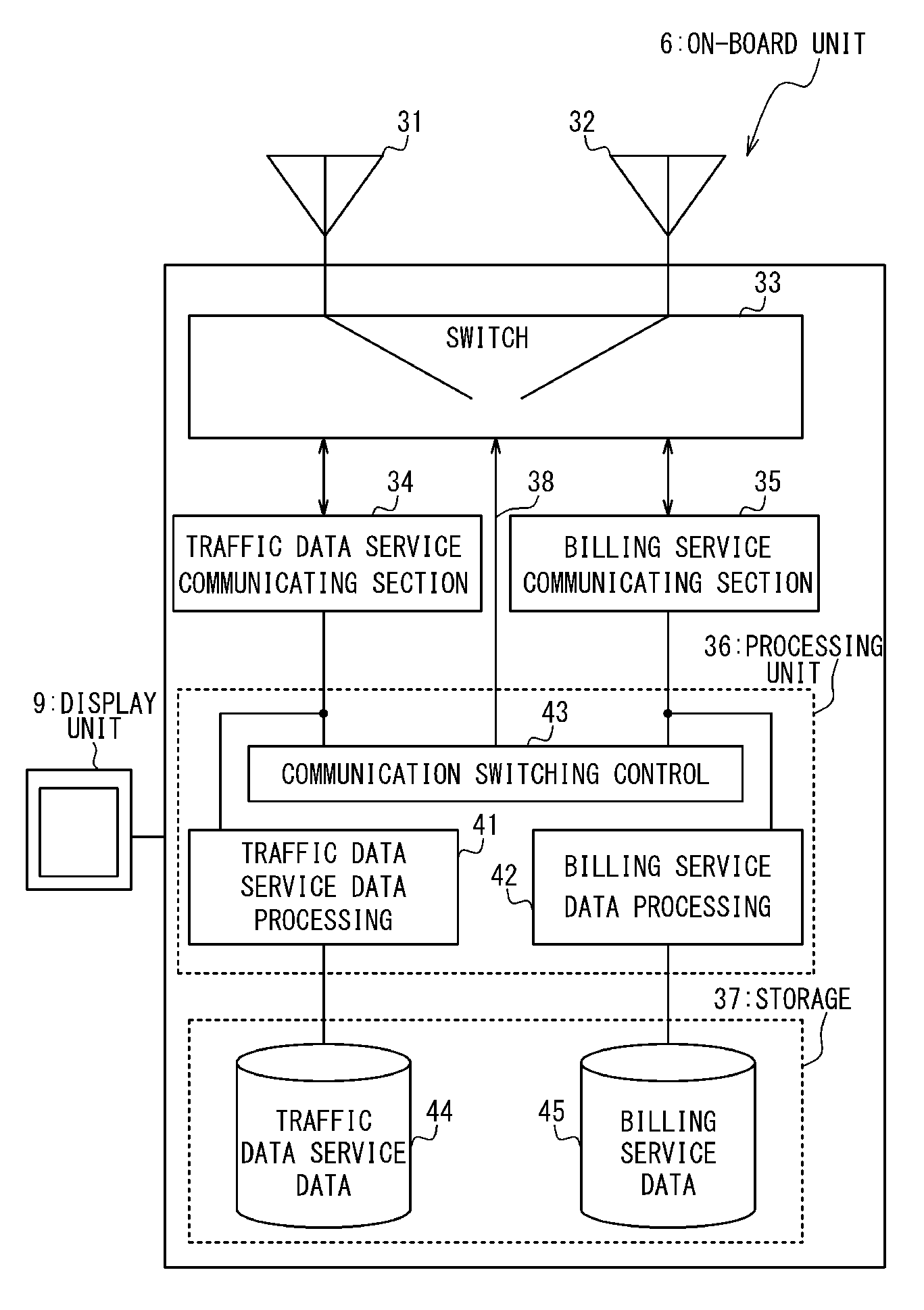

An on-board unit includes a first antenna and a second antenna, a traffic data service communicating section corresponding to a traffic data service; a billing service communicating section corresponding to a billing service, a switch which switches a connection relation between each of the first antenna and the second antenna and the traffic data service communicating section and the billing service communicating section, a control section which controls the switch. When the operation mode is switched from the traffic data service mode to the billing service mode, the on-board unit is set to a switching communication mode in which one of the first antenna and the second antenna is connected with the traffic data service communicating section and the other is connected with the billing service communicating section.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H04M Class
- 4233 Applications Filed
- 3996 Patents Issued To-Date
- 94.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04M Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 23, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 23, 2028 |
