Terminal connection structure for resistor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2017
Grant Date -
Dec 18, 2014
app pub date -
Jan 29, 2013
filing date -
Feb 14, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

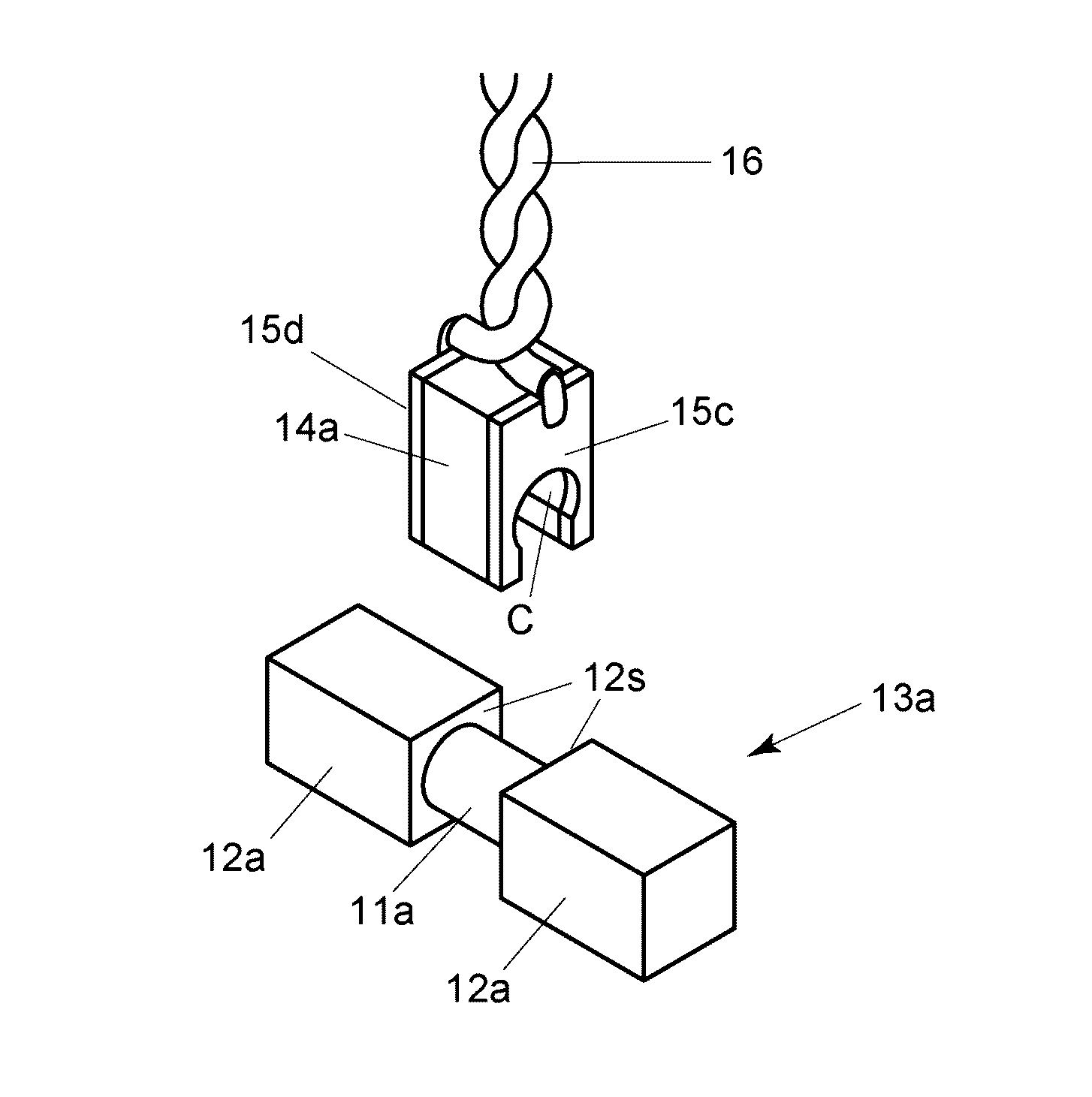

Provided is a connection structure for a detection terminal of shunt resistor that allows a lead wire, that is to be connected to an electrode of the shunt resistor and is for detecting electrical current, to be easily and compactly connected to the electrode within a narrow and small module. A terminal connection structure for a resistor, which connects a detection terminal to an electrode, comprises a shunt resistor (13) that has a pair of electrodes (12) at both ends of a resistor body (11); a connector base (14) formed of insulating material; and an electrically conductive section (15a) formed on the connector base (14); wherein the connector base (14) is fit onto the shunt resistor (13) such that the electrically conductive section (15a) is electrically connected to the electrodes (12). The connector base (14) is provided with a joint section (C) that can be fit onto the resistor body (11). The resistor body (11) and the electrode (12) is provided with a level difference and the connector base (14) is fit into between the electrodes (12,12).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01R Class
- 16.47 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 23, 2028 |
