Methods and systems for printing periodic patterns
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2017
Grant Date -
Mar 3, 2016
app pub date -
Mar 18, 2014
filing date -
Mar 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

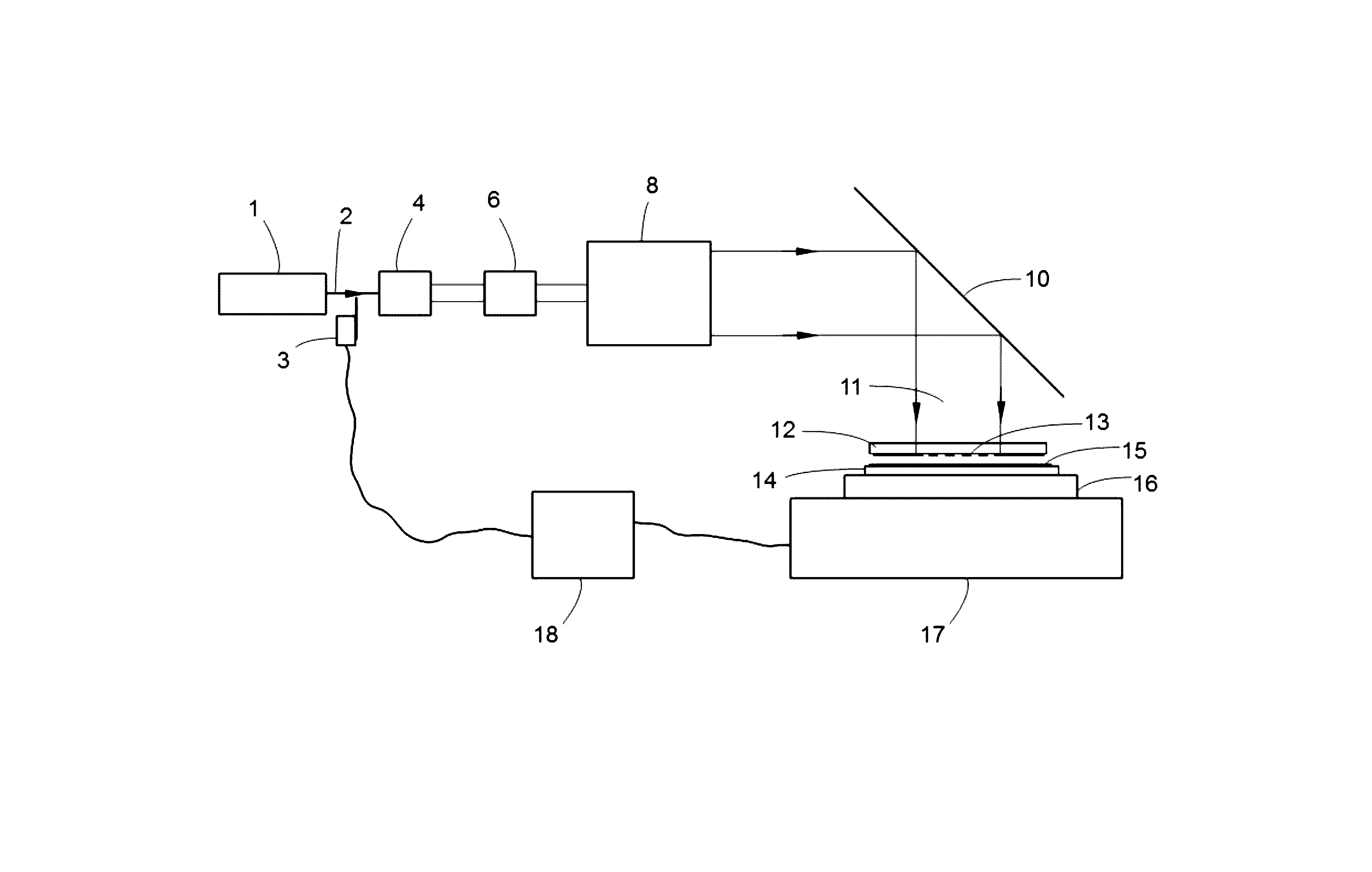

A method for printing a periodic pattern of features into a photosensitive layer includes providing a mask bearing a periodic pattern, providing a substrate bearing the photosensitive layer, and arranging the substrate substantially parallel to the mask. A beam of collimated monochromatic light is formed for illuminating the mask pattern so that the light-field transmitted by the mask forms Talbot image planes separated by a Talbot distance. N sub-exposures of the mask with the beam are performed and the separation between sub-exposures are changed so that the relative separation during the ith sub-exposure with respect to that during the first sub-exposure is given by (mi+ni/N) times the Talbot distance. The mask pattern is exposed to the same energy density of illumination for each sub-exposure, wherein the period is selected in relation to the wavelength so that only the zeroth and first diffraction orders are transmitted by the mask.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G03B Class
- 18.75 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 23, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 23, 2028 |
