Heat exchanger

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9658003
SERIAL NO

13939786

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

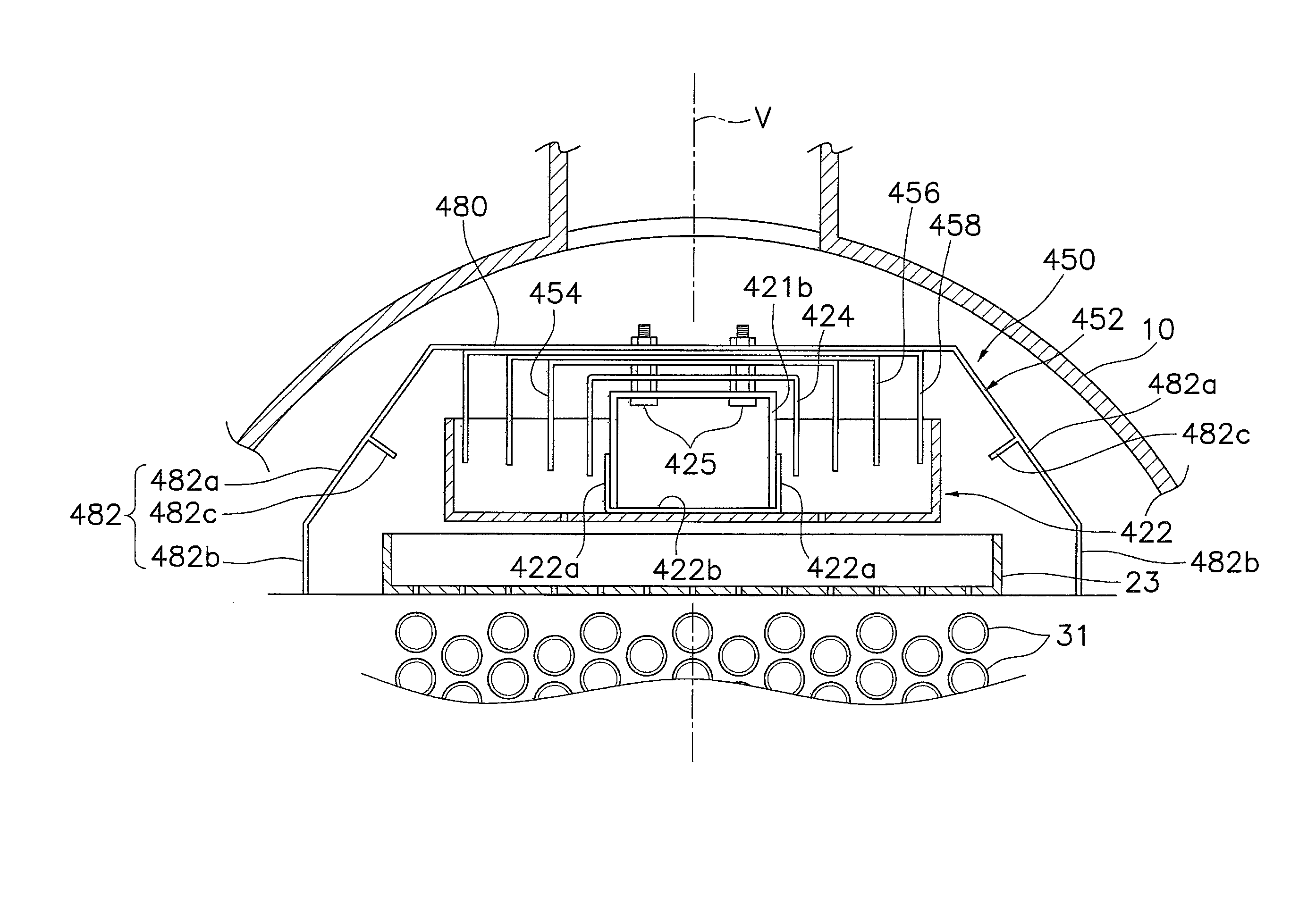

A heat exchanger includes a shell, a refrigerant distribution assembly, a heat transferring unit and a canopy member. The refrigerant distribution assembly receives a refrigerant that enters the shell and discharges the refrigerant. The refrigerant distribution assembly has at least one outermost lateral end. The heat transferring unit is disposed below the refrigerant distribution assembly so that the refrigerant discharged from the refrigerant distribution assembly is supplied to the heat transferring unit. The heat transferring unit includes a plurality heat transfer tubes. The canopy member includes at least one lateral side portion extending laterally outwardly and downwardly from a position above the refrigerant distribution assembly. The lateral side portion has a free end disposed laterally further from a vertical plane than the refrigerant distribution assembly, and lower than an upper edge of the outermost lateral end of the refrigerant distribution assembly.
