System and method for tufting sculptured and multiple pile height patterned articles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2017
Issued Date -
N/A
app pub date -
Nov 3, 2015
filing date -
Oct 1, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

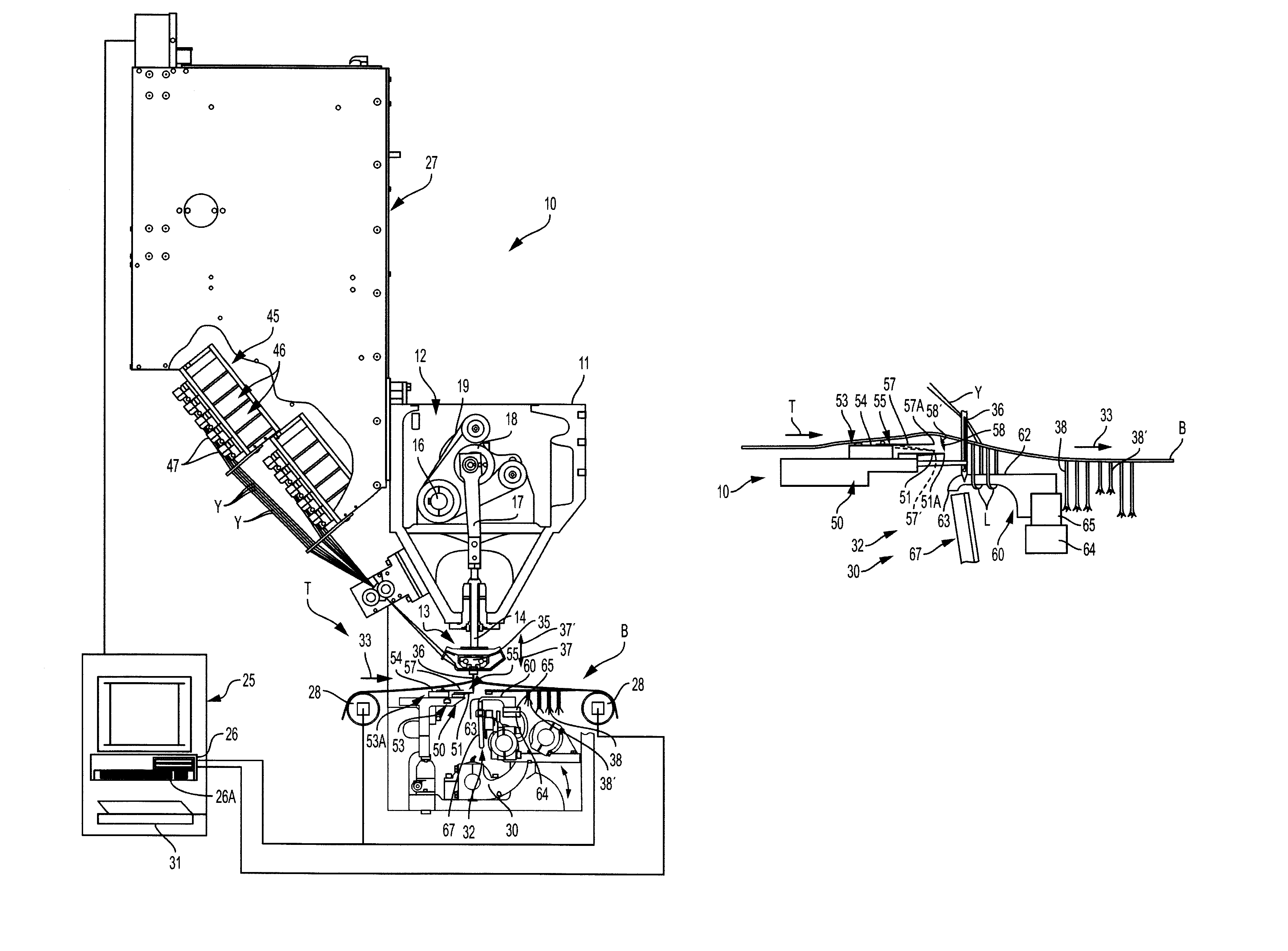

A system and method for tufting sculptured and multiple pile height patterned articles, including controlling placement of yarns fed to the needles of the tufting machine by a yarn feed mechanism to form varying patterns includes a backing support over which the backing is fed, and which lifts/and biases the backing to a raised position. As the backing material is fed through the tufting machine, a series of loopers or hooks engage and pick loops of yarns from the needles. The yarn feed mechanism will be controlled to create a tension in selected loops of yarns, to cause the backing material to be pulled against the bias or spring force applied by the backing support toward the needle plate of the tufting machine to create tufts of different pile heights.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- D05C Class
- 53 Applications Filed
- 40 Patents Issued To-Date
- 75.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- D05C Class
- 85.71 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 23, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 23, 2028 |
