System for handling workpieces and method for operating such a system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2017
Grant Date -
Dec 31, 2015
app pub date -
Jun 24, 2015
filing date -
Jun 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

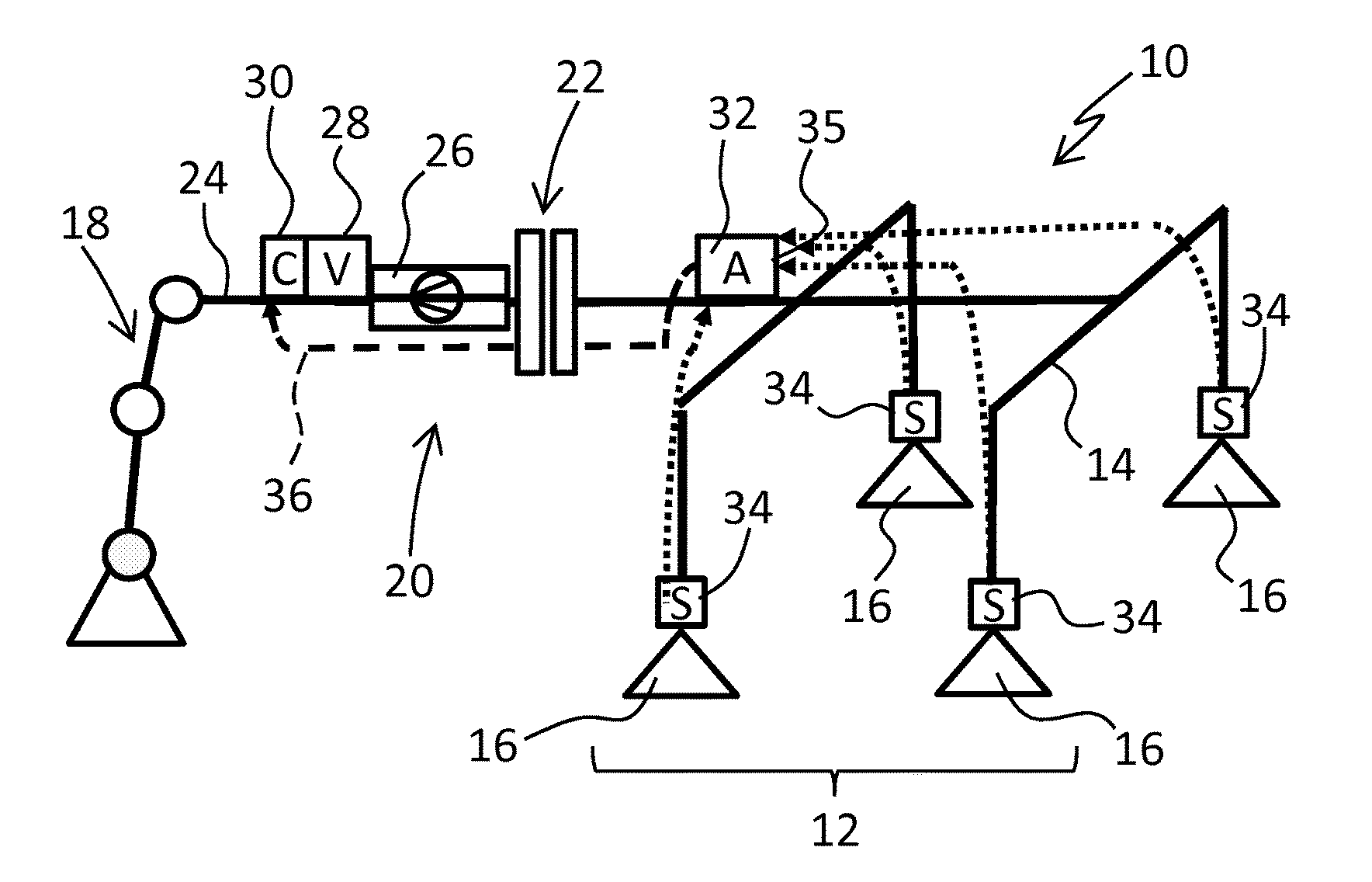

The invention relates to a system (10) for handling workpieces, with a handling device (12) which comprises at least one vacuum gripper (16) for drawing a workpiece in by suction, with at least one vacuum generator (26) that can be operated by the supply of compressed air for supplying the vacuum gripper (16) with vacuum, with at least one controllable control valve (28) by which the supply of compressed air to the vacuum generator (26) can be controlled, wherein the control valve (28) is associated with a control device (30) for the proper control of the control valve (28 as required. The handling device comprises an evaluation unit (32) for evaluating operating data of the vacuum generator (26) and/or for evaluating operating data of the handling device (12) as well as for generating control signals as a function of the evaluated operating data, wherein the evaluation unit (32) is arranged on the handling device (12), and wherein the control device (30) controls the control valve (28) as a function of the control signals transmitted from the evaluation unit (32).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B65G Class
- 1502 Applications Filed
- 1240 Patents Issued To-Date
- 82.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 43 Citation Count
- B65G Class
- 99.70 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 23, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 23, 2028 |
