Grip tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2017
Grant Date -
Nov 17, 2016
app pub date -
May 16, 2016
filing date -
May 14, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

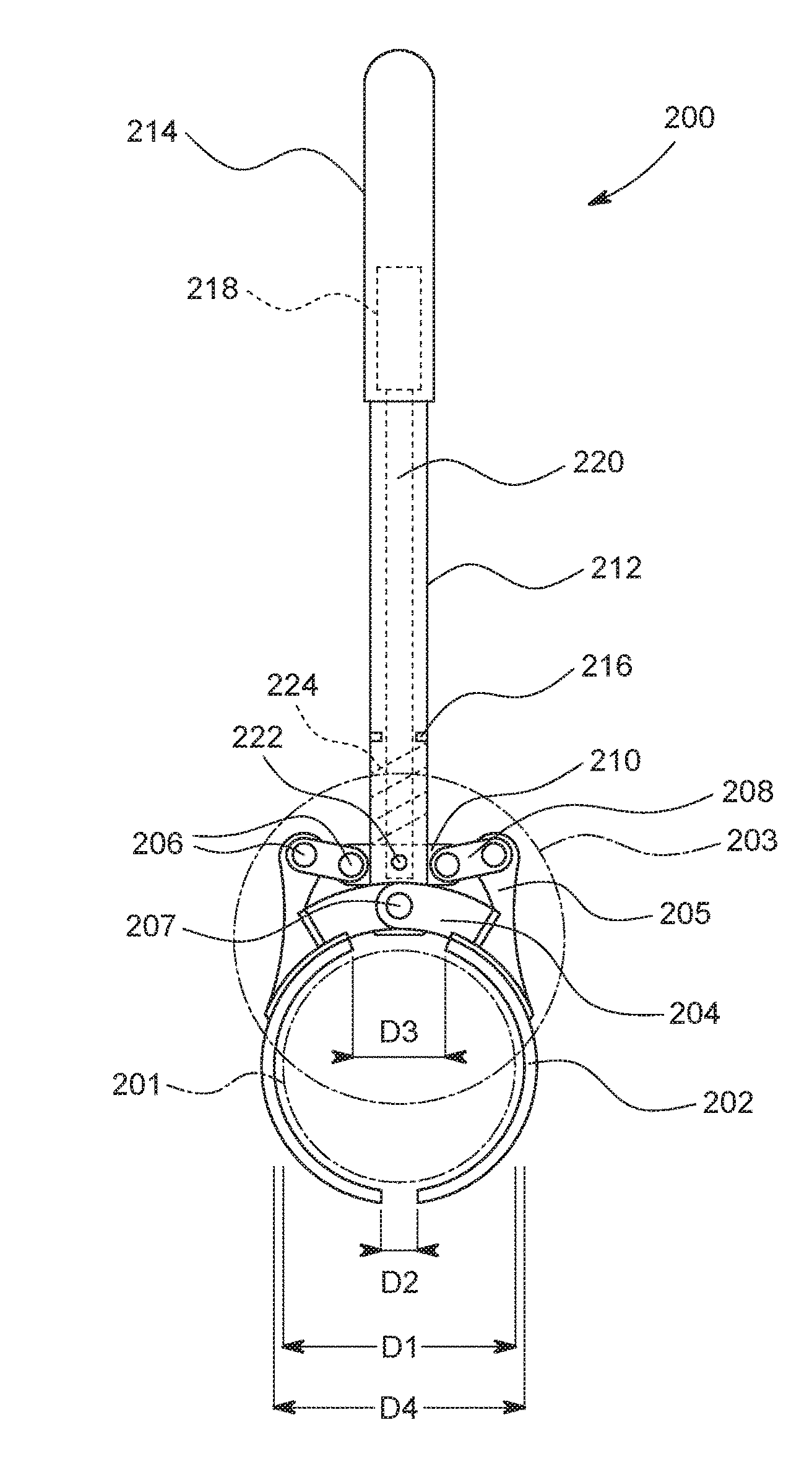

A tool (for gripping an object (e.g., a cylindrical object)) includes: an outer handle; a tubular neck having a proximal end connected to the outer handle; a linkage assembly having first and second ends connected to a distal end of the neck; an inner handle; a connecting rod having a proximal end connected to the inner handle and a distal end connected to a middle portion of the linkage assembly, partially disposed substantially coaxially within the neck thereby nesting the inner handle within the outer handle; and first and second claws attached to the linkage assembly, each claw having a compression surface (e.g., a concave cylindrical surface) configured to conform as a substantial complement to a portion of an outer surface of the to-be-gripped object (e.g., the to-be-gripped cylindrical object).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B25B Class
- 791 Applications Filed
- 523 Patents Issued To-Date
- 66.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B25B Class
- 23.50 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 23, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 23, 2028 |
