Suspension group in particular for motorized vehicles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2017
Grant Date -
Dec 24, 2015
app pub date -
Feb 7, 2014
filing date -
Feb 12, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

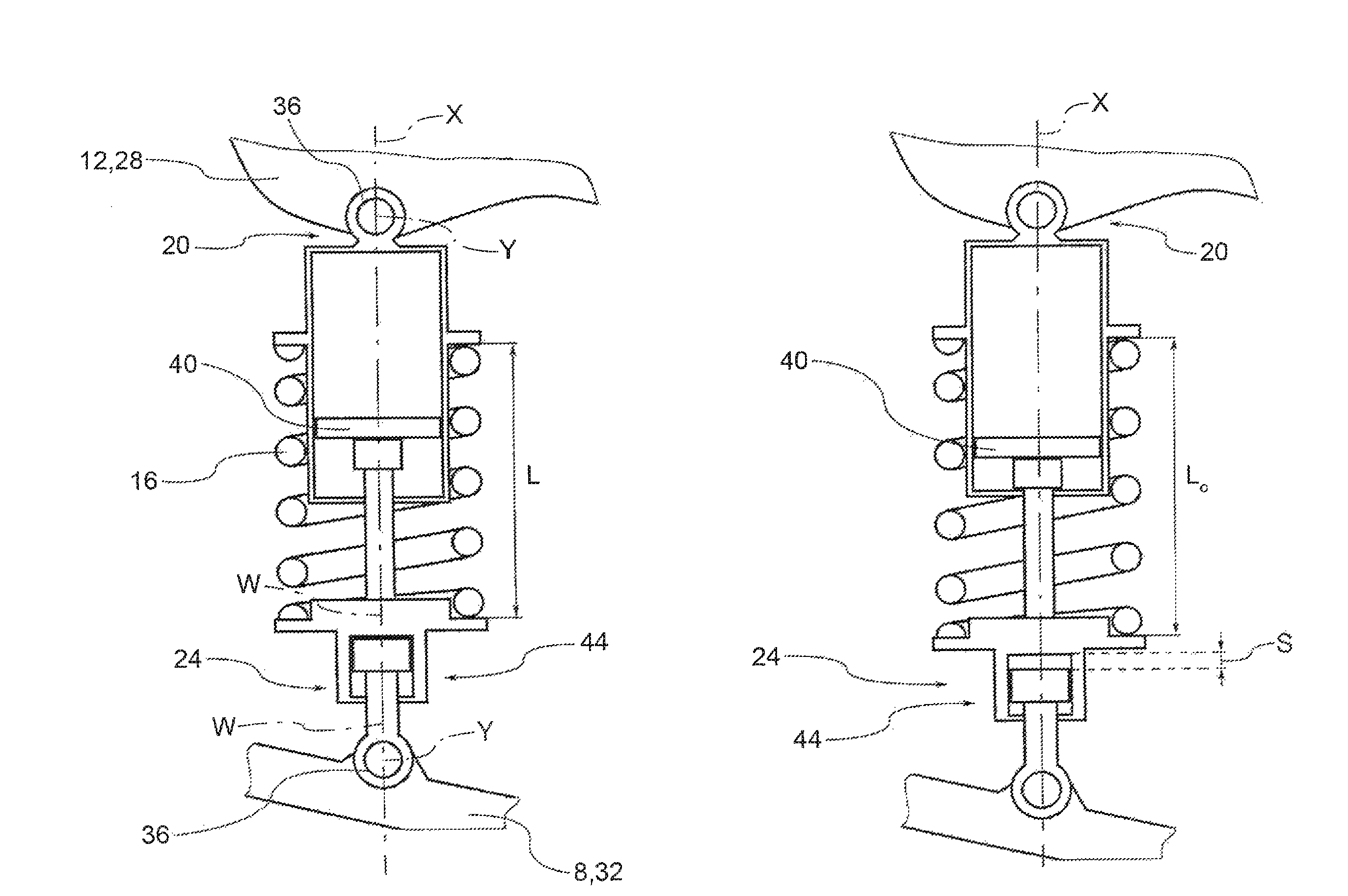

Suspension group for motorized vehicles comprising a main spring which extends between a first and a second end of the group, a main damper connected in parallel to said main spring said main spring being pre-loaded by pre-loading means which together press the spring in compression and impose a rest length thereon, namely the length assumed by the spring when there are no further external loads on the first and/or on the second end of the group except for the pre-load caused by the pre-loading means, wherein the first and second end are connected kinematically to a first and a second mass of the motor vehicle respectively, the first mass being a mass suspended by the suspension group and the second mass being a non-suspended mass.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60G Class
- 528 Applications Filed
- 481 Patents Issued To-Date
- 91.10 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B60G Class
- 18.34 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 23, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 23, 2028 |
