Staples feeder assembly with concealed slider for pneumatic fastener magazine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 23, 2017
Grant Date -
Mar 19, 2015
app pub date -
Sep 18, 2014
filing date -
Sep 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

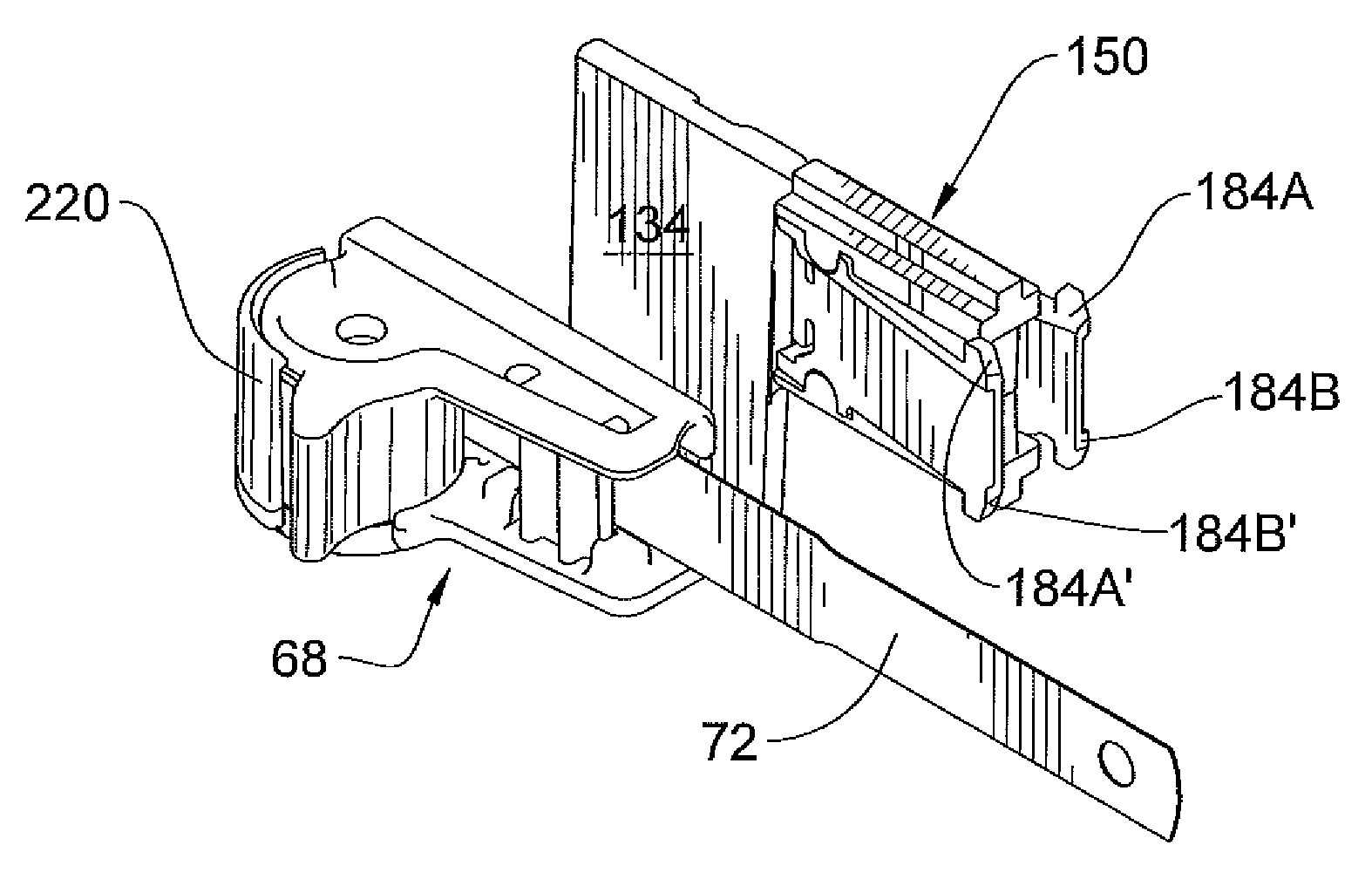

The present invention consists of the complete integration of a self arming controlled action pneumatic fastener magazine slider (pusher and feeder) within the two legs of a stack of U-shape staples on a magazine support rail, thanks to the interplay of two pairs of releasably interlocking sensor and keys fastener pusher elements. In one embodiment of the invention, the slider system is self-arming and fits within an elbowed magazine for receiving fasteners, but works along the straight portion of the magazine. This slider system will accommodate elongated magazine holding a larger number of fasteners. The slider system will decrease the time required for fastener reloading by simplifying operations and enabling a greater flexibility for the operator. A fastener retention device may be provide to the fastener pusher, defining an operative mode active with a large storage load of fasteners into the magazine, and a inoperative mode triggered when the load of magazine feeders decreases below a threshold value.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B25C Class
- 82 Applications Filed
- 68 Patents Issued To-Date
- 82.93 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B25C Class
- 19.73 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 23, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 23, 2028 |
