Multi-beam writing of pattern areas of relaxed critical dimension
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 16, 2017
Issued Date -
N/A
app pub date -
Mar 17, 2016
filing date -
Mar 17, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

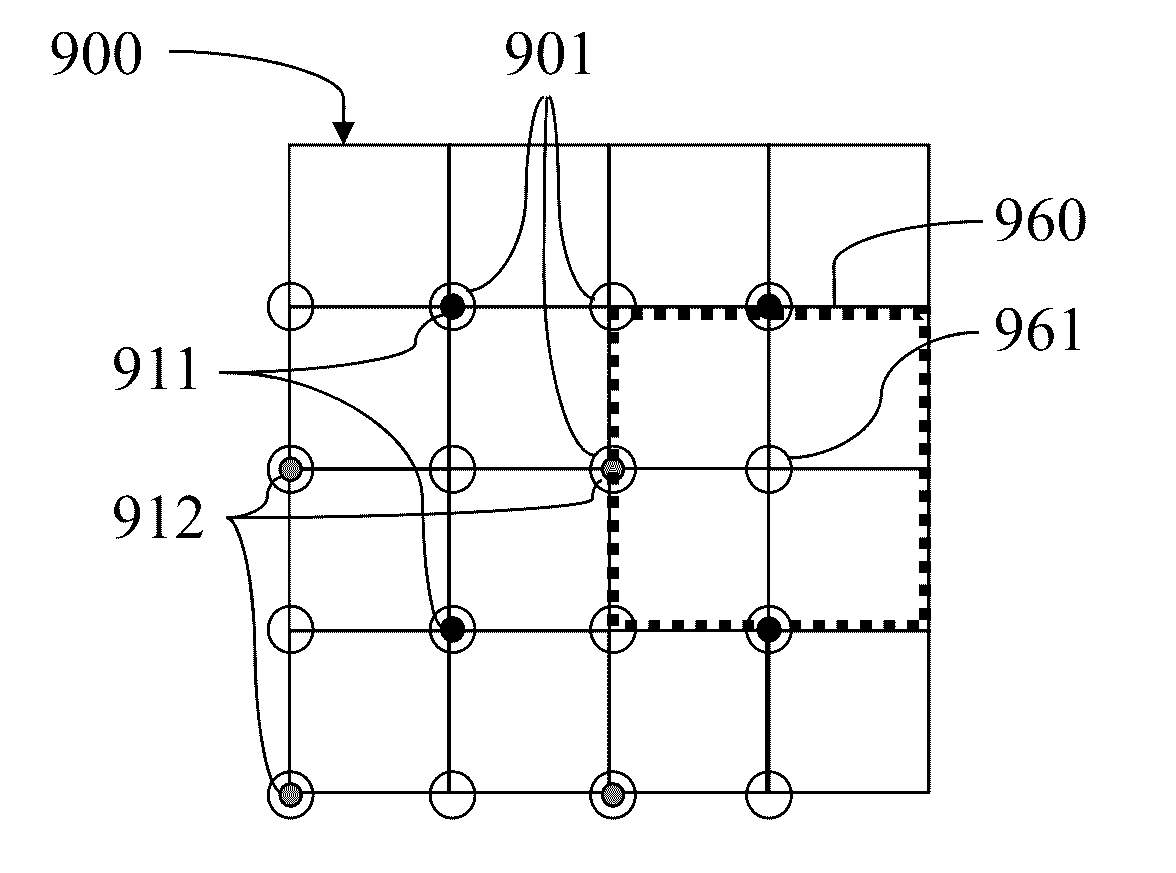

To irradiate a target with a beam of energetic electrically charged particles, the beam is formed and imaged onto a target, where it generates a pattern image composed of pixels. For a pattern which comprises a primary pattern region to be written with a predetermined primary feature size and a secondary pattern region which is composed of structure features capable of being written with a secondary feature size, larger than the primary feature size. The structure features of the primary pattern region are written by exposing a plurality of exposure spots on grid positions of a first exposure grid; the structure features in the secondary pattern region are written by exposing a plurality of exposure spots on grid positions of a second exposure grid according to a second arrangement which is coarser that the regular arrangement of the first exposure grid.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01J Class
- 2255 Applications Filed
- 1758 Patents Issued To-Date
- 77.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- H01J Class
- 87.58 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 16, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 16, 2028 |
