Method of operating an oxycombustion circulating fluidized bed boiler
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 16, 2017
Issued Date -
N/A
app pub date -
Feb 1, 2012
filing date -
Feb 4, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

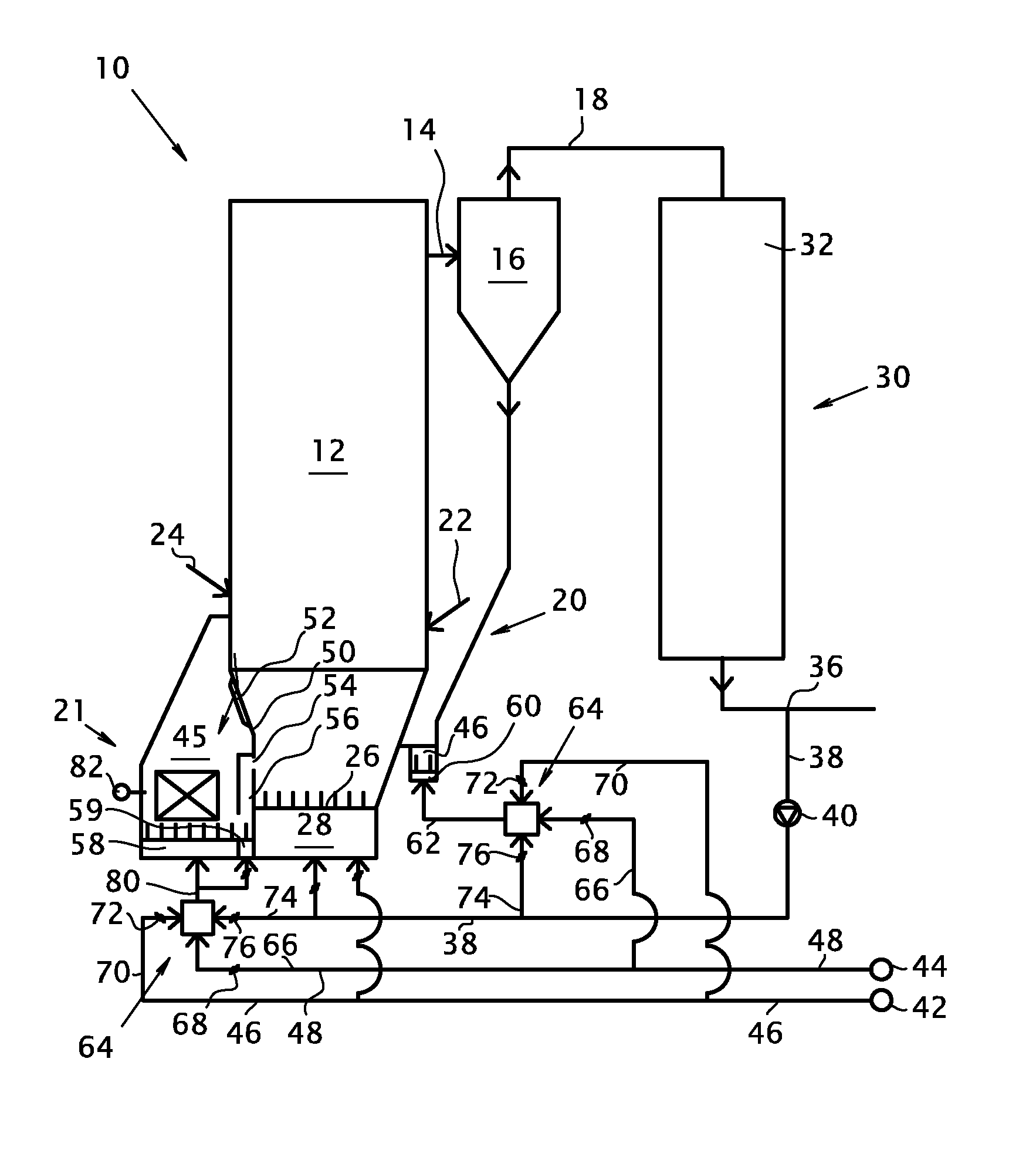

A method of operating an oxycombustion circulating fluidized bed (CFB) boiler that includes a furnace having a grid at its bottom section, a solid material separator connected to an upper part of the furnace, and an external solid material handling system. Oxidant gas is introduced into the CFB boiler through the grid as fluidizing gas, the fluidizing gas including recirculating flue gas. Fuel material is introduced into the circulating fluidized bed. A sulfur reducing agent including CaCO3 is introduced into the circulating fluidized bed. Solid material is circulated out of the furnace and provides an external circulation of solid material via the external solid material handling system. The solid material is fluidized in the external solid material handling system by introducing a fluidizing medium including recirculating flue gas into the handling system. A predetermined amount of steam is introduced into the handling system as a component of the fluidizing medium.
First Claim
Other Claims data not available
Family
International Classification(s)
- F01K:STEAM ENGINE PLANTS; STEAM ACCUMULATORS; ENGINE PL....
- F23L:AIR SUPPLY; DRAUGHT-INDUCING; SUPPLYING NON-COMBUS....
- B01J:CHEMICAL OR PHYSICAL PROCESSES, e.g. CATALYSIS, CO....
- F22B:METHODS OF STEAM GENERATION; STEAM BOILERS
- F23C:METHODS OR APPARATUS FOR COMBUSTION USING FLUENT F....
- B01D:SEPARATION
- 2012 Application Filing Year
- F01K Class
- 268 Applications Filed
- 238 Patents Issued To-Date
- 88.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01K Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 16, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 16, 2028 |
