Method and apparatus for improving steam dryness of steam injection boiler
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 16, 2017
Issued Date -
N/A
app pub date -
Jul 4, 2013
filing date -
Aug 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

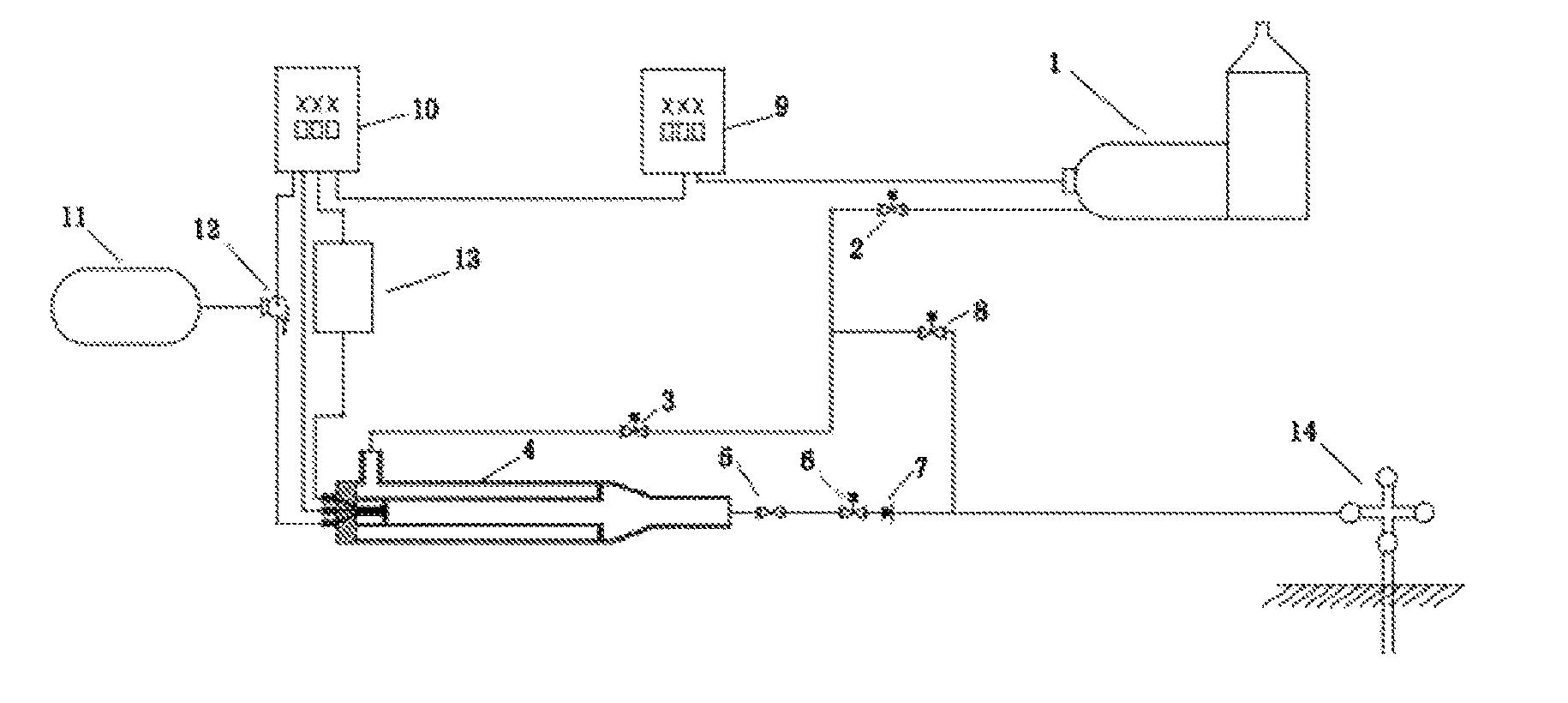

The method and an apparatus for improving the steam dryness of a steam injection boiler includes injecting wet saturated steam and gas into an oil layer together in a sealed way, after the dryness of the wet saturated steam at an outlet of the steam injection boiler is improved by a dryness raiser. The dryness raiser includes a combined spray head, a steam heating chamber, a combustion chamber, and a mixing chamber. The gas generated by the combustion chamber enters into the mixing chamber and is fully mixed with the steam from the steam injection boiler. The dryness of the wet saturated steam at the outlet of the steam injection boiler can be improved to 95%-100%, and the effects of improving steam enthalpy, replenishing stratum energy and enlarging the steam wave and size are realized, so as to heat up the oil layer more effectively, and improve heavy oil development.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F22G Class
- 17 Applications Filed
- 17 Patents Issued To-Date
- 100 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F22G Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 16, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 16, 2028 |
