Vehicle child safety seat
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 16, 2017
Issued Date -
N/A
app pub date -
Nov 27, 2013
filing date -
Nov 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

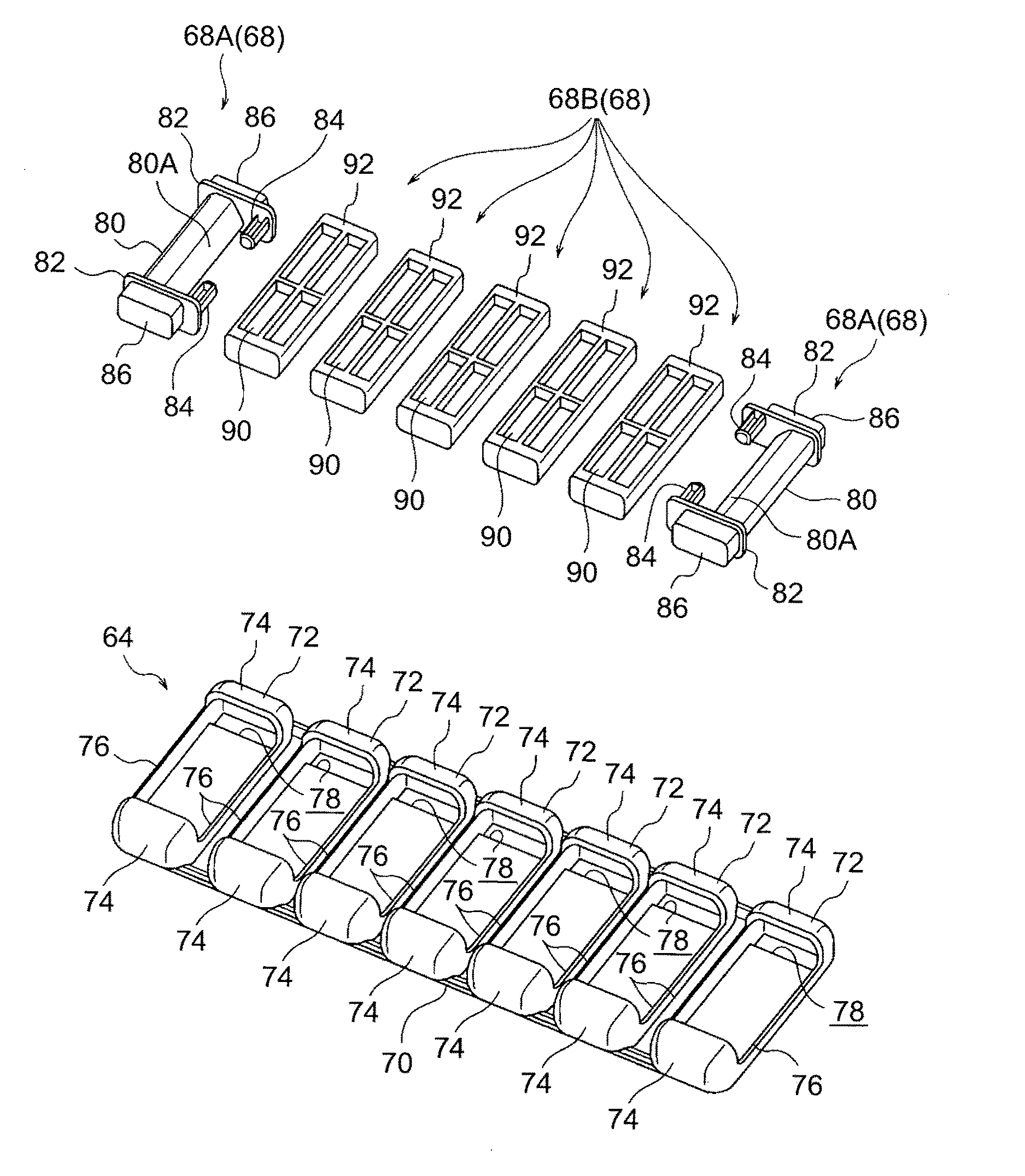

Vehicle child safety seat including: a seat main body on which an occupant sits; a seat belt for restraining the occupant to the seat main body, the seat belt including a shoulder harness having a belt shape and facing a shoulder of the occupant; a harness cover formed in an elongated pouch shape and slidably attached to the shoulder harness in a longitudinal direction such that the shoulder harness is passed through paired insertion holes formed on respective end portions of the harness cover in the longitudinal direction; and a shoulder pad formed in an elongated shape, accommodated in the harness cover, placed between the shoulder and the shoulder harness along the longitudinal direction of the shoulder harness, and including paired connection portions provided on respective end portions of the shoulder pad in the longitudinal direction so as to be connected to the shoulder harness slidably in the longitudinal direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- A62B Class
- 263 Applications Filed
- 236 Patents Issued To-Date
- 89.74 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A62B Class
- 22.87 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 16, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 16, 2028 |
