Cutting insert
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 16, 2017
Issued Date -
N/A
app pub date -
Mar 8, 2012
filing date -
Mar 9, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

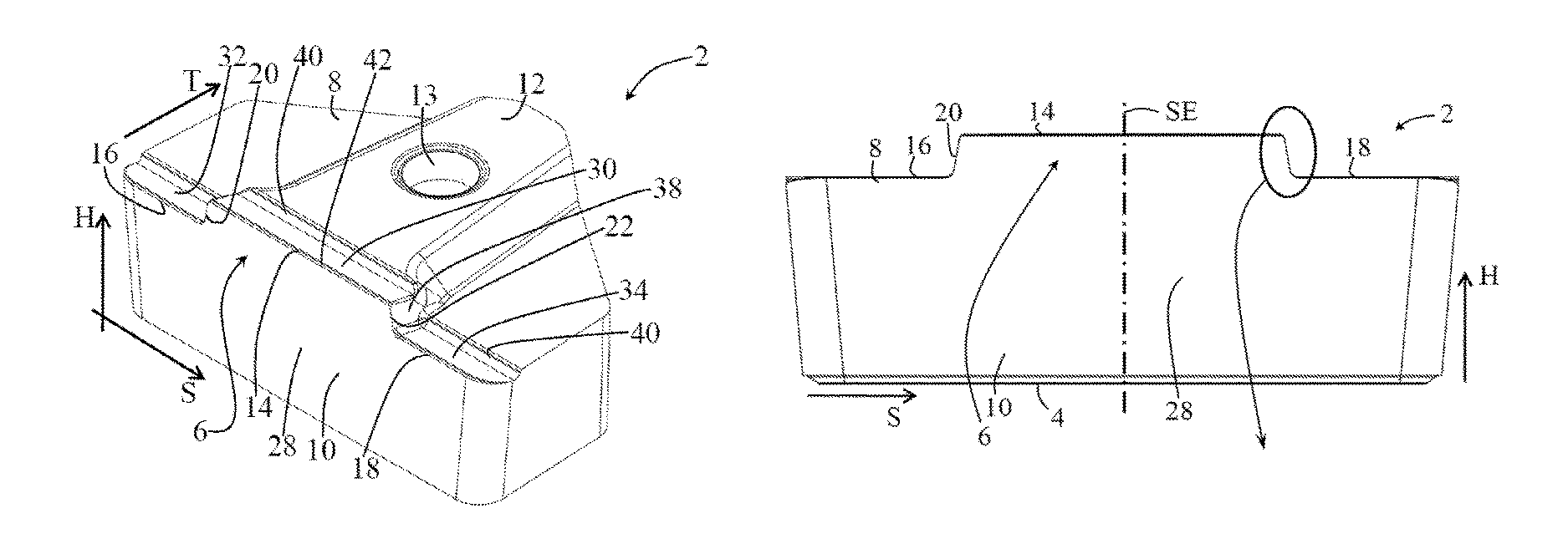

A cutting insert has a bottom supporting surface, a center cutting edge, two secondary cutting edges, realized on both sides of the center cutting edge and offset in relation to the center cutting edge, and two transition edges connecting the center cutting edge to the secondary cutting edge adjacent in each case. The two secondary cutting edges are realized in each case vertically offset and, where applicable, also offset in depth with respect to the center cutting edge and are laterally spaced from the center cutting edge. The transition edges, in each case in a non-edge-overlapping region, have at least over a portion an inclination n where 2°≦n≦20° in relation to a height direction which extends at right angles with respect to a main extension plane of the supporting surface.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B23B Class
- 466 Applications Filed
- 391 Patents Issued To-Date
- 83.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B23B Class
- 22.16 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 16, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 16, 2028 |
