Paint stick and marker installation system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 9, 2017
Issued Date -
N/A
app pub date -
Feb 6, 2014
filing date -
May 4, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

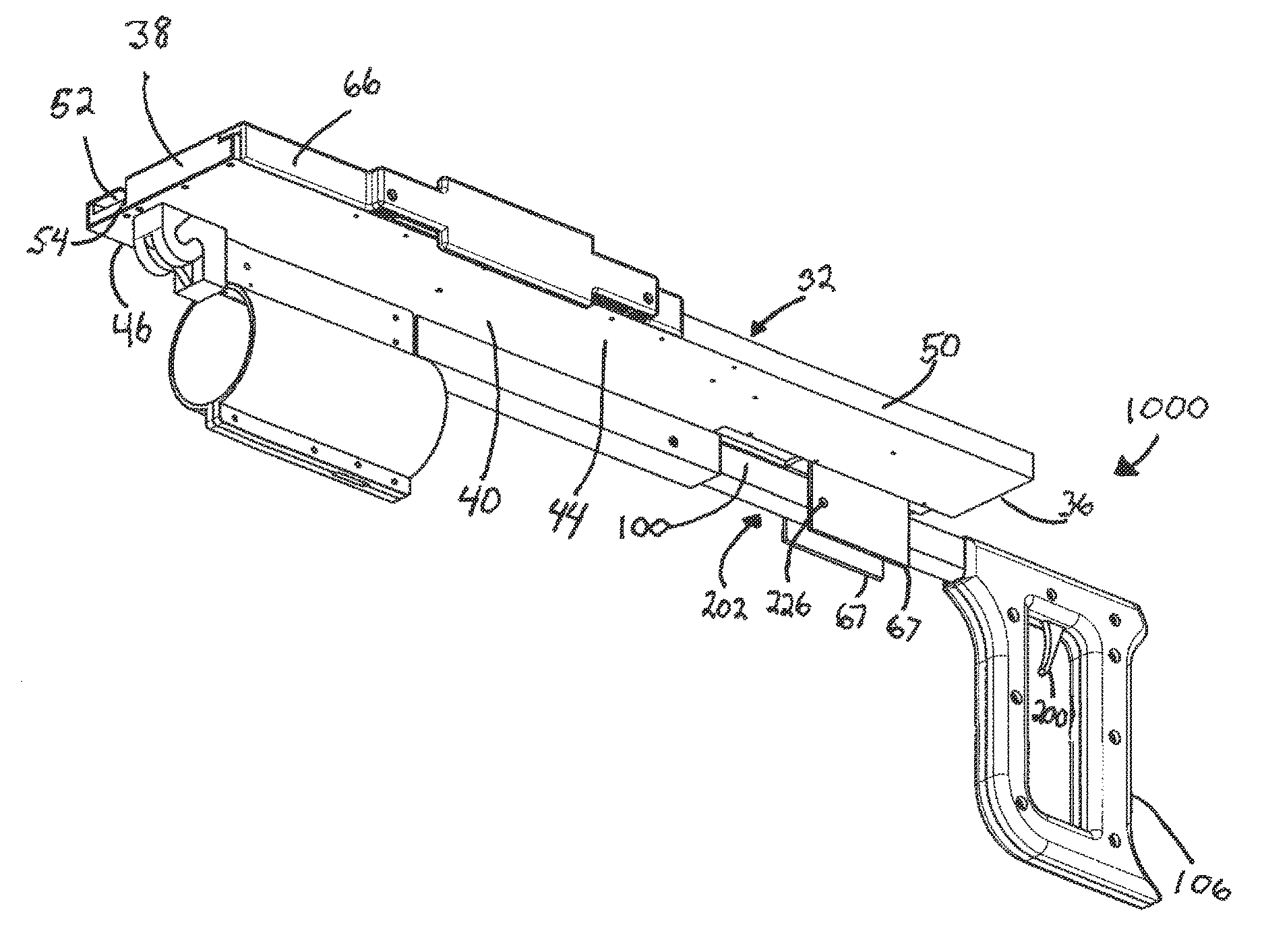

A paint stick and marker installation system for inserting a marker having shaft with a bottom end for inserting into the ground and an engagement portion of the shaft separated from the bottom end by an insertion portion of the shaft. The apparatus includes a magazine assembly configured to receive at least one marker. The magazine space has a push position in the magazine space for receiving the at least one marker. The apparatus further comprises a push assembly mounted on the magazine assembly. The push assembly is configured to engage the engagement portion of the shaft of the marker located in the push position and push the marker from the magazine assembly when the push assembly is actuated. A plurality of the markers are bonded together such that each of the markers can be removed from the rest of the plurality when inserting a marker into the ground.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B25C Class
- 82 Applications Filed
- 68 Patents Issued To-Date
- 82.93 % Issued To-Date
