Floating marine structure having floats
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 9, 2017
Grant Date -
Dec 22, 2016
app pub date -
Mar 12, 2015
filing date -
Jan 29, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

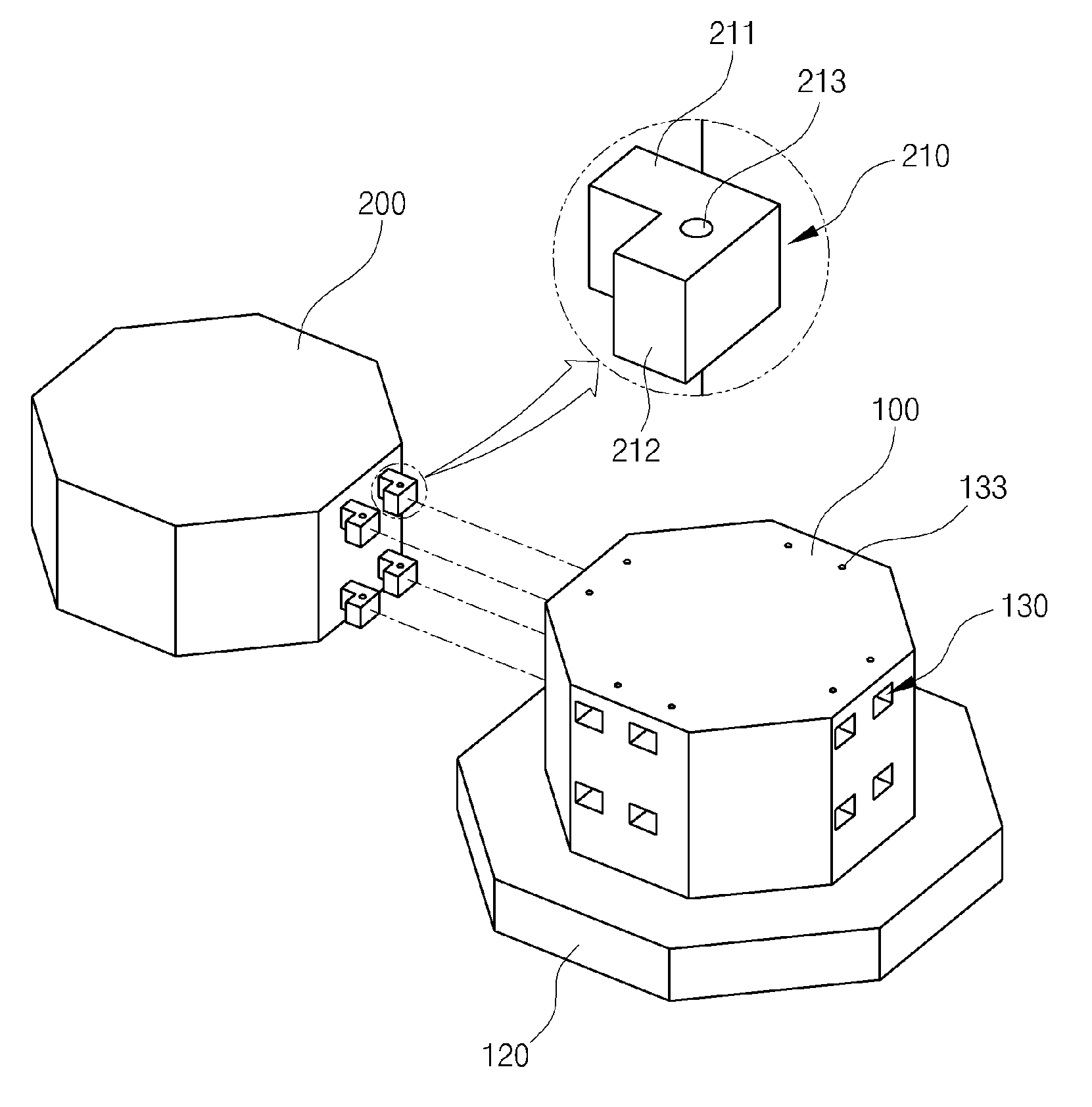

A floating marine structure which includes a first float disposed at the center and a plurality of second floats disposed around the first float, where the first float has a floating body made of a floatable material in a polygonal prism shape, a damping unit coupled to the bottom of the floating body at the center, having the same cross-section as the floating body, having a cross-sectional area larger than the cross-sectional area of the floating body, and reducing a shake of the first float in the sea, and at least one coupling hole formed at each side of the floating body. The second float has the same shape as the floating body and has coupling protrusions formed at sides facing the sides of the floating body and inserted in the coupling holes, and wherein the coupling holes are formed at alternate sides of the floating body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B63B Class
- 796 Applications Filed
- 647 Patents Issued To-Date
- 81.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B63B Class
- 28.88 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 9, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 9, 2028 |
