Inflator and airbag module
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 9, 2017
Issued Date -
N/A
app pub date -
Nov 3, 2015
filing date -
Oct 15, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

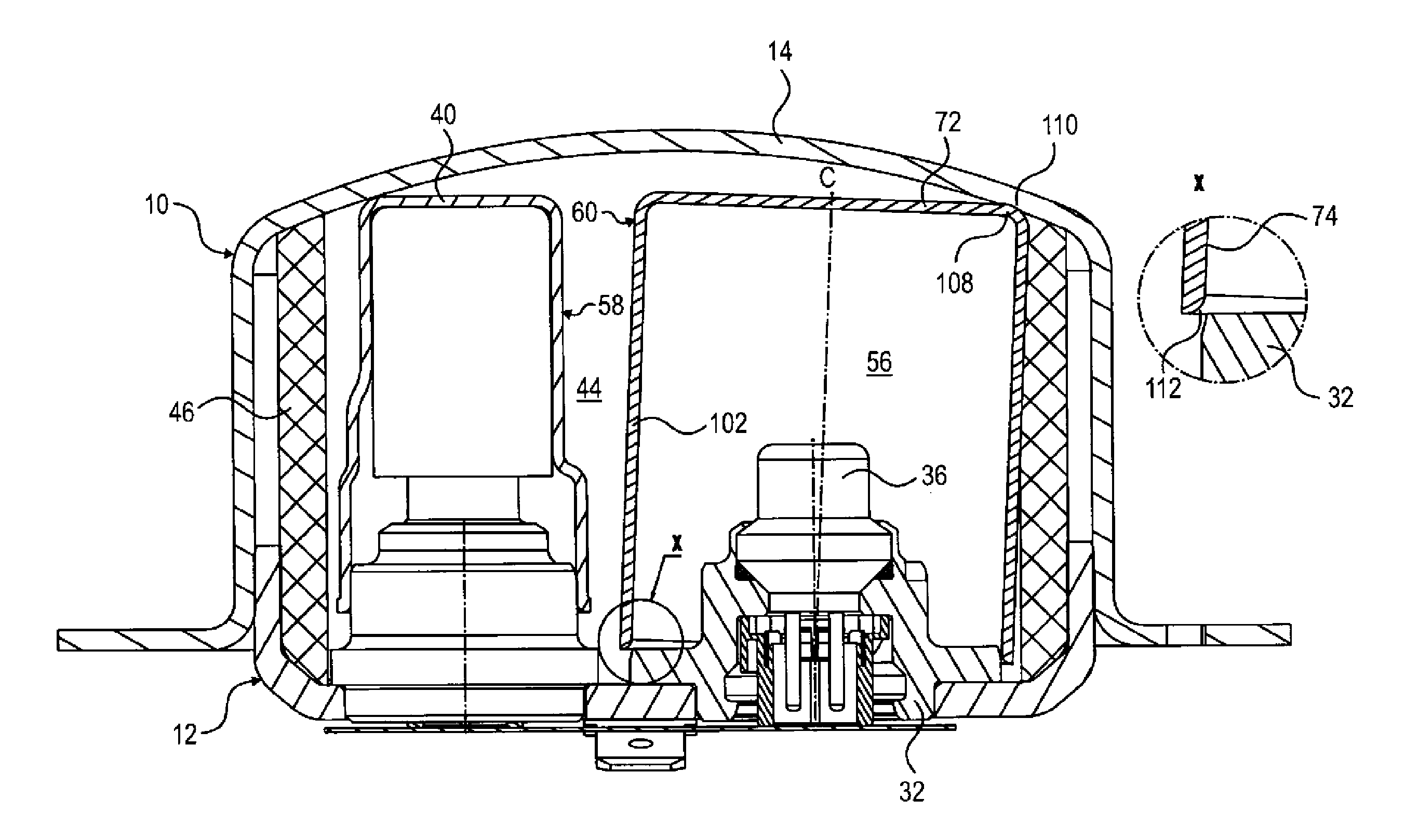

An inflator for a protective device in a vehicle includes a diffuser (10) forming a substantially rotation-symmetric external housing of the inflator with a closing member (12), wherein the diffuser (10) includes a plurality of discharge orifices (78) arranged in a row, and which are of circular shape. The inflator also includes a combustion chamber sleeve (60) which at least partially encloses a combustion chamber (56) filled with fuel, wherein the combustion chamber sleeve (60) is designed such that it changes its shape by pressure formed during combustion of the fuel so as to release a discharge orifice (112) leading out of the combustion chamber (56) into a further combustion chamber (44) of the inflator, for a combustion gas formed during combustion of the fuel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60R Class
- 3620 Applications Filed
- 2846 Patents Issued To-Date
- 78.62 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60R Class
- 13.21 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 9, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 9, 2028 |
