Airbag module with heat shield
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 9, 2017
Issued Date -
N/A
app pub date -
Jan 2, 2014
filing date -
Jan 3, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

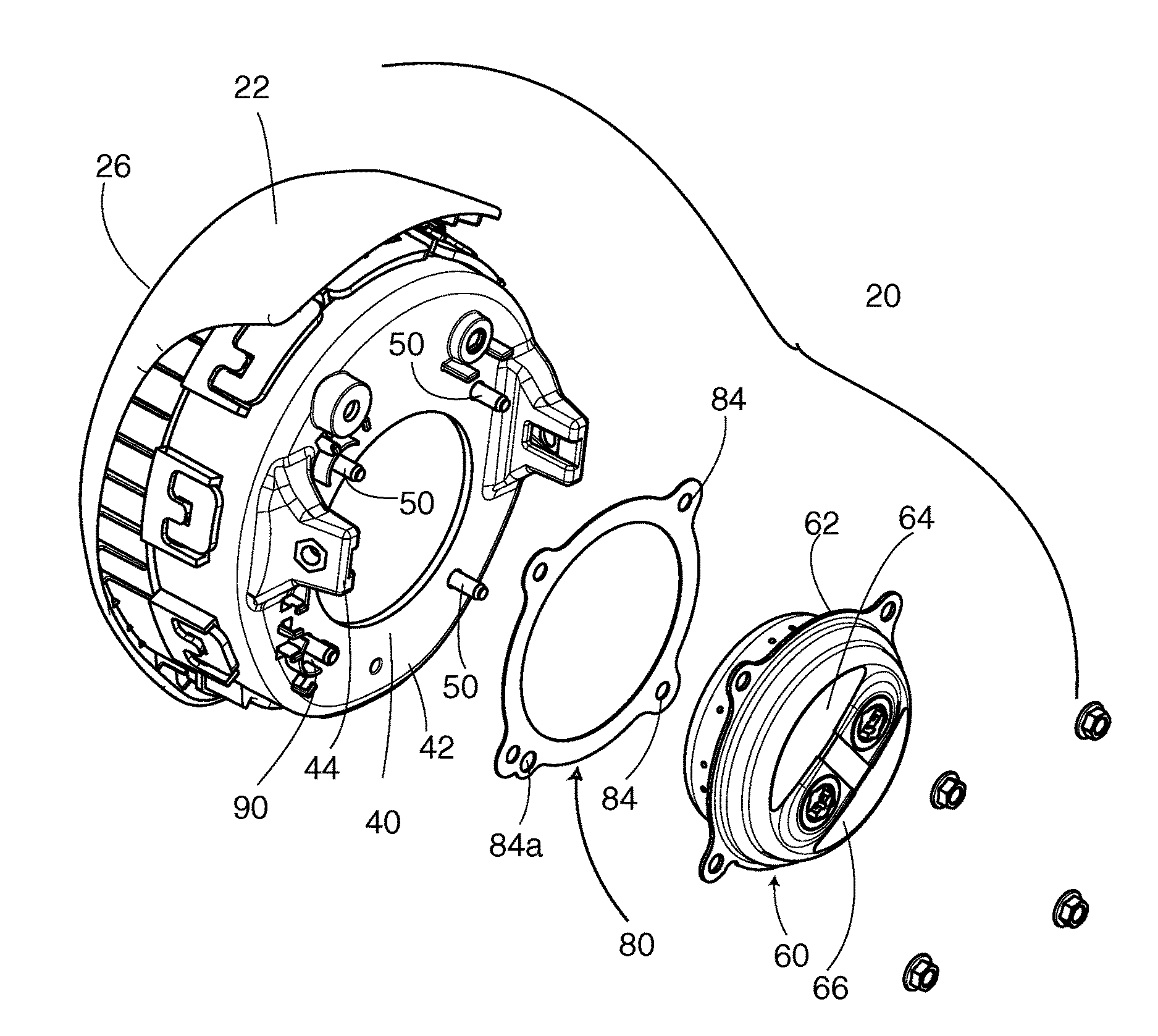

A driver airbag module (20) comprising a cover (22), a housing (40) matably configured with cover (22), a pyrotechnic inflator (60) having a flange (70), and airbag fitted within the space between housing (40, 40a) and cover (22), the airbag inflating with gas provided by the inflator (60), wherein the heat shield (80) is positioned between the lower surface (42) of housing (40, 40a) and an upper surface (71) of flange (70), the heat shield protectively shielding surface (42) from the heat transfer from flange (70) to prevent surface (42) from melting.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- B60R Class
- 2971 Applications Filed
- 2488 Patents Issued To-Date
- 83.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 9, 2024 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 9, 2028 |
