Optical element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 9, 2017
Grant Date -
Nov 20, 2014
app pub date -
Jul 31, 2014
filing date -
May 9, 1997
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

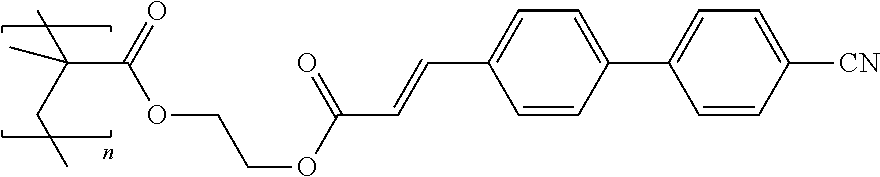

An element for protection against forgery and/or copying is arranged on a substrate and includes an optically anisotropic layer which has at least two regions with different optical axes, characterized in that the substrate is a reflective polarizer. The optically anisotropic layer can include cross-linked liquid crystal monomers. The anisotropic layer can be placed on an orientation layer. The orientation layer can be in contact with the polarizer and can include a photo-oriented polymer network. A device for protection against forgery and/or copying is characterized in that an element as set forth above and an analyzer are arranged on the same substrate.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02B Class
- 22.62 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 9, 2028 |
