Power supply apparatus, battery apparatus, and battery system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2017
Grant Date -
Jan 29, 2015
app pub date -
Mar 4, 2013
filing date -
Mar 2, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

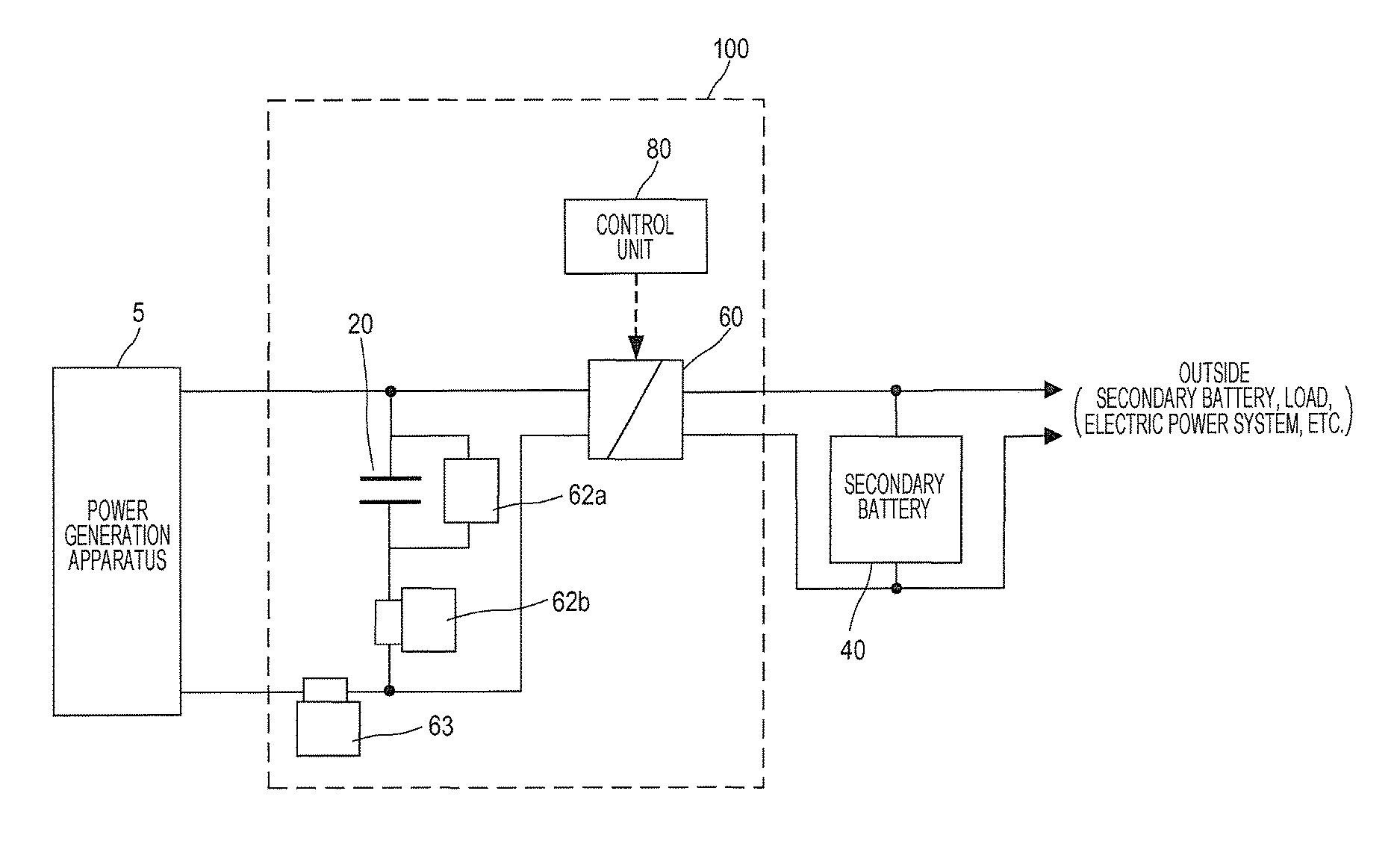

A power supply apparatus that receives electric power from a power generation apparatus having a varying output and supplies electric power to an outside, the apparatus comprising: a power storage device that has a larger amount by which electric power is stored and/or a lower self-discharge rate than a capacitor device used as a passive device and also has higher charge and discharge efficiency and/or higher responsiveness than a secondary battery, the power storage device receiving electric power from the power generation apparatus and discharging electric power to the outside; a current control unit that controls a current supplied from the power storage device to the outside; and a control unit that controls a current and a voltage of the power generation apparatus by charging and discharging the power storage device so as to maximize an amount of power generation by the power generation apparatus.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H02J Class
- 3206 Applications Filed
- 2881 Patents Issued To-Date
- 89.87 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 2, 2028 |
