Hybrid high-voltage DC breaker
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2017
Grant Date -
Aug 7, 2014
app pub date -
Jan 17, 2014
filing date -
Feb 6, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

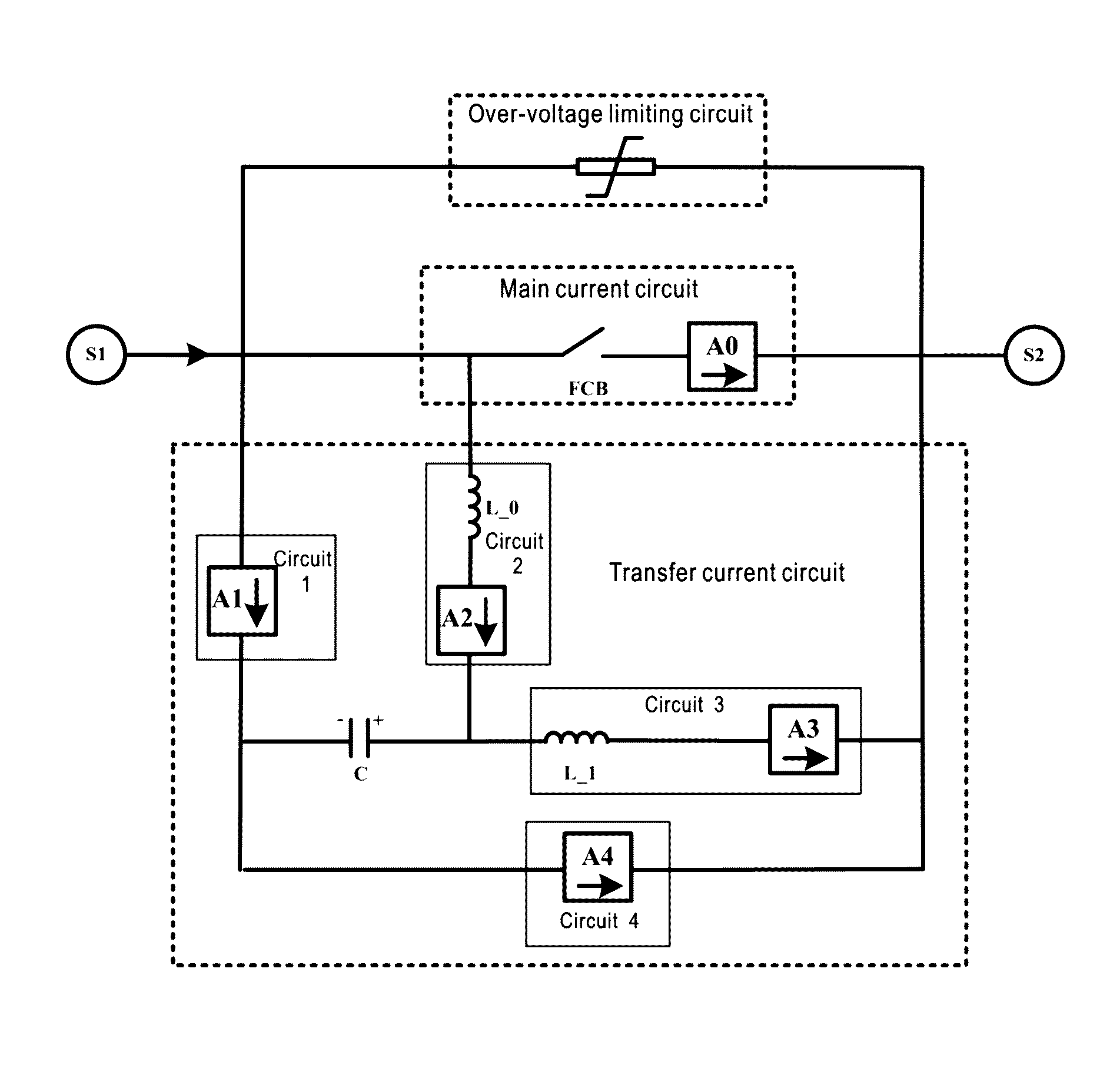

A hybrid high-voltage DC breaker, consists of a plurality of completely identical breaker modules connected in series. Each of the breaker modules comprises a main current circuit, a transfer current circuit, an over-voltage limiting circuit and a control system, wherein a high-speed mechanical switch, the transfer current circuit and the over-voltage limiting circuit are connected in parallel. The transfer current circuit consists of circuits 1-4, wherein the circuit 1 and the circuit 4 are connected in series at first and then connected with the main current circuit in parallel; a pre-charged capacitor is connected with the circuit 4 in parallel after being connected with the circuit 3 in series; and, one end of the circuit 2 is connected with the left end of the main current circuit while the other end thereof is connected with a connection point of the pre-charged capacitor and the circuit 3.
