Insert/outsert assembly for an arrow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2017
Grant Date -
Feb 25, 2016
app pub date -
Aug 18, 2015
filing date -
Aug 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

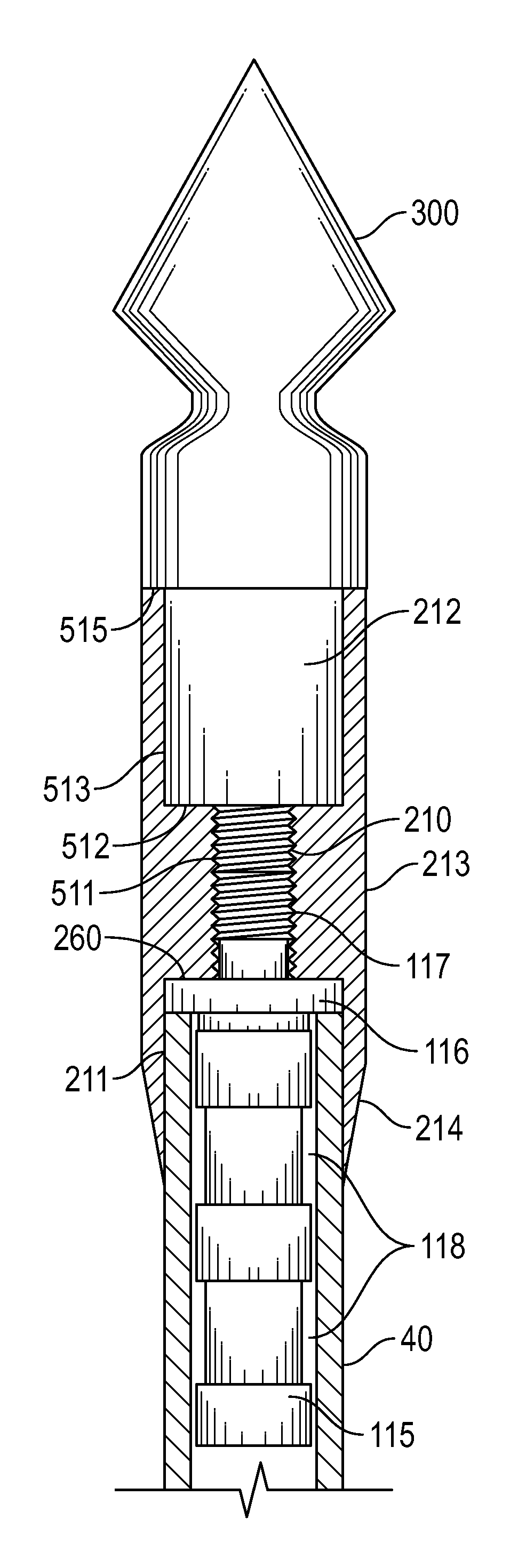

An insert/outsert assembly for an arrow. The insert includes a cylindrical body having first and second ends. The second end of the insert is dimensioned to fit within the bore of an arrow shaft. The first end includes a prong containing male threads. The outsert includes a cylindrical wall with an arrowshaft end and an arrowhead end. A center bore extends between the arrowshaft and arrowhead ends. The center bore contains a threaded region with female threads located intermediate of the arrowhead end and arrowshaft end. The insert is threadedly connected to the outsert. An arrowhead is threadedly connected to the outsert.
