Manipulatable spider components adapted for cooperation with a vertically reciprocating control line guide
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 2, 2017
Grant Date -
Jun 18, 2015
app pub date -
Dec 12, 2014
filing date -
Dec 10, 2002
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

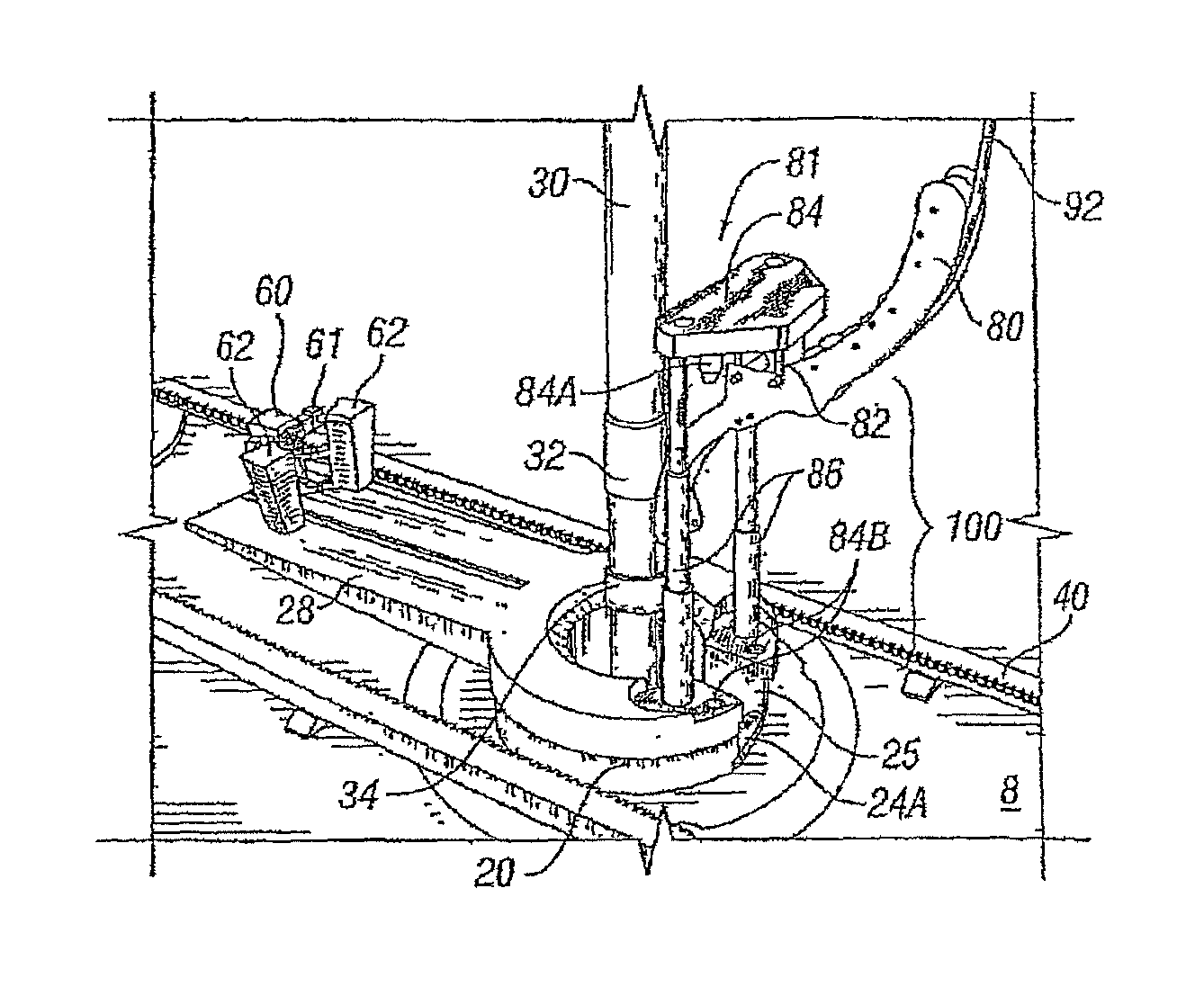

A method and apparatus are provided for installing control lines and pipe into a well. The pipe-holding spider that is normally mounted on the rig floor is adapted for easy disassembly and reassembly when the pipe slips within the spider are not engaged with the outer surface of the pipe string so that upon disassembly, a control line guide becomes vertically movable. The control line guide is adapted for being controllably elevated to a distance above the rig floor, thereby providing personnel access to a portion of the length of the pipe string below the elevated control line guide and above the rig floor for securing control line to the pipe string using a fastener.
